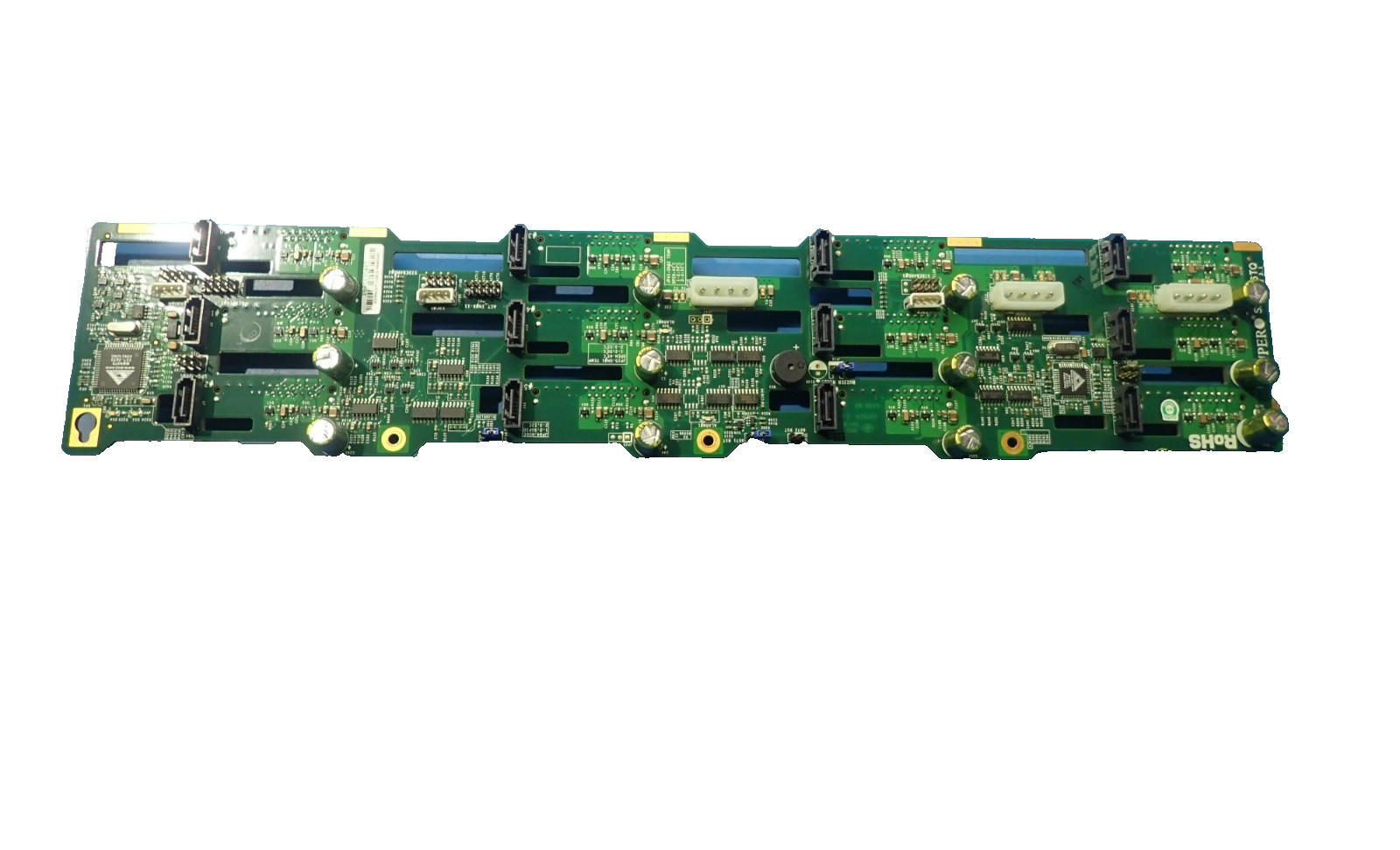

The Supermicro SAS826TQ (BPN-SAS-826TQ) SAS/SATA Backplane is a high-quality enterprise storage backplane designed for Supermicro 2U server chassis such as the SC826 series. It provides a reliable and efficient solution for connecting multiple hot-swap hard drives in data center, NAS, and server environments. Built with Supermicro’s proven engineering, this backplane ensures stable data transfer, strong compatibility, and long-term durability for mission-critical storage systems.

This model supports up to 12 x 3.5" hot-swap SAS or SATA drives, making it ideal for high-capacity storage configurations. It features direct-attached (TQ) design, meaning each drive connects individually to the controller for maximum compatibility and straightforward performance. The SAS826TQ supports SAS 6Gb/s and SATA drives, along with SES-2 enclosure management for monitoring and system integration. It is designed for use with compatible Supermicro chassis and server systems, providing excellent airflow and efficient cable management.

Specifications:

• Model: Supermicro BPN-SAS-826TQ (SAS826TQ)
• Type: 12-Port SAS/SATA Direct Attach Backplane
• Drive Support: Up to 12 x 3.5" Hot-Swap HDD/SSD
• Interface: SAS 6Gb/s / SATA 3Gb/s & 6Gb/s
• Design: TQ (Direct Attached, Non-Expander)
• Enclosure Management: SES-2 Support
• Compatibility: Supermicro SC826 series chassis
• Form Factor: 2U Server Backplane
• Connector Type: Individual SAS/SATA ports per drive bay

Features:

• Supports up to 12 hot-swap SAS/SATA drives
• Reliable direct-attach TQ design for stable performance
• SES-2 enclosure management for system monitoring
• Compatible with enterprise SAS and SATA drives
• Designed for Supermicro 2U SC826 server chassis
• Efficient airflow and organized internal cable routing
• Ideal for NAS, storage servers, and enterprise systems
• Durable build quality for long-term data center use
