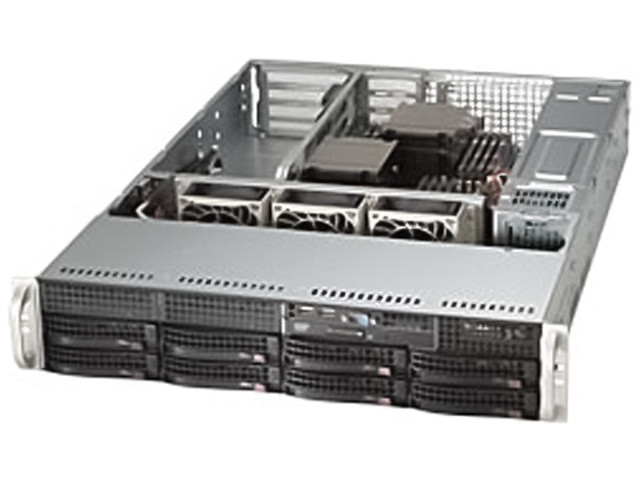

Supermicro SYS-6027B-URF Barebones Server, NEW, IN STOCK 5 Yr Wty
Product SKUsSYS-6027B-URF

• SuperServer 6027B-URF (Black)

Motherboard
Super X9DBU-iFProcessor/CacheCPU

• Dual Socket B2 (LGA 1356)
• Intel® Xeon® processor E5-2400 v2

Cache

• Up to 25MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 12x 240-pin DDR3 DIMM slots
• Supports up to 384 GB DDR3 ECC Registered memory (RDIMM)
• Supports up to 96 GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C602 Chipset

SATA

• SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201F PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Input / OutputSAS/SATA

• Customizable storage

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 8x USB 2.0 ports total
  (2 rear + 4 via header + 2 Type A)

VGA

• 1x VGA port

Serial Port / Header

• 2x Fast UART 16550 ports / 1 rear and 1 header

ChassisForm Factor

• 2U Rackmount

Model

• 17.2" (437mm)

Height

• 3.5" (89mm)

Depth

• 25.5" (648mm)

Gross Weight

• 52 lbs (23.6kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED

Expansion SlotsPCI-Express

• 1x UIO
• 4x PCI-E 3.0 x4 (2 Full-height Full-length, 2 Low-profile)
• 1x PCI-E 3.0 x8 (1 Full-height Full-length)
• UIO AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)

Drive BaysHot-swap

• 8x 3.5" Hot-swap SAS / SATA HDD trays (ready for UIO or PCI-E storage controller card)

Backplane1x 2U SAS backplane w/ Enclosure Management
(SAS support requires optional SAS controller)Peripheral DrivesDVD-ROM

• Slim DVD-ROM drive (optional)

System CoolingFans

• 3x 80mm 7,000 RPM 4-pin PWM fans

Power Supply with Power Distributor740W (1+1) Redundant high-efficiency power supply with PMBusAC Input

• 100-240 V, 50-60 Hz, 9-3.5 Amp

DC Output

• 4 Amp @ +5V standby
• 61.7 Amp @ +12V

With Power Distributor

• +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp

Certification
Platinum Certified
[Test Report]System BIOSBIOS Type

• 64Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• BIOS resuce hot keys
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  5°C to 35°C (41°F to 95°F)
• Non-operating Temperature:
  -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DBU-iF Motherboard
2U ChassisBackplaneBPN-SAS-825TQ18-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDDCable 1CBL-0343L-01230AWG IPASS/4SATA 76/66/54/45CM W/SBRiser CardRSC-R2UU-2E4R1RSC-R2UU-2E4RRiser / RetentionSNK-P0038P22U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MBRail SetMCP-290-00053-0N1 setRail set, quick/quick, default for 2,3U 17.2"W
