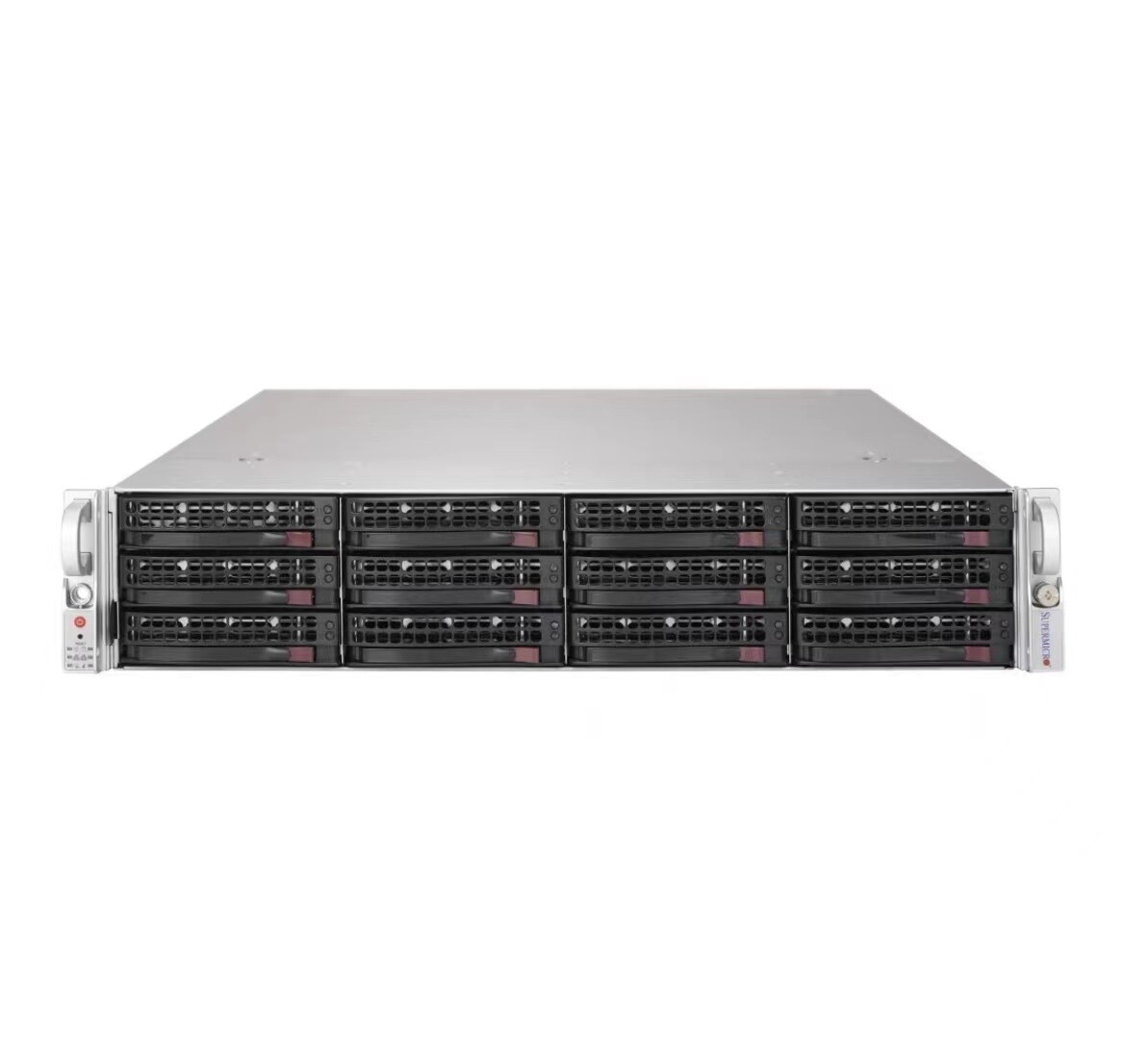

Supermicro SYS-6029U-E1CR4 SuperServer 6029U-E1CR4 (Complete System Only)

Price: CN $2001.28

Integrated Board Super X11DPU Views: |Angled View|Top View|
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs and a storage add-on-card). Drivers & UtilitiesBIOSIPMITested MemoryTested M.2 ListNVMe OptionsManualsOS Certification MatrixCompatible GPU ListQuick-References GuideDrive OptionsNetwork Card (AOC) Matrix Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included. Key Features Virtualization

SuperServer 6029U-E1CR4 (Black)

Motherboard

Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,

Support CPU TDP 70-205W

Cores

Up to 28 Cores

Note ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) System Memory Memory Capacity

24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††

Memory Type

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
2666 ECC DDR4 NVDIMM

Note †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

Intel® C621 chipset

SATA

SATA3 (6Gbps) with RAID 0, 1, 5, 10

Network Connectivity

4 GbE ports viaAOC-2UR68-i4G (Intel i350)

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

ASPEED AST2500 BMC

Input / Output SAS

12 SAS3 ports via expander and AOC

LAN

4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB

3 USB 3.0 ports (2 rear, 1 Type A)

Video

2 VGA ports (1 rear, 1 onboard)

Serial Port / Header

1 Serial header

DOM

2 SuperDOM(Disk on Module) ports

System BIOS BIOS Type

AMI 32Mb SPI Flash ROM

Management Software

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM,SPM,SUM
SuperDoctor® 5

Power Configurations

ACPI Power Management

PC Health Monitoring CPU

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment
Thermal Control for fan connectors

Chassis Form Factor

2U Rackmount

Model

CSE-829U2E1C4-R1K02-T

Dimensions and Weight Width

17.2" (437mm)

Height

3.5" (89mm)

Depth

28.46" (723mm)

Weight

Net Weight: 36 lbs (16.4 kg)
Gross Weight: 72 lbs (32.7 kg)

Available Colors

Black

Front Panel Buttons

Power On/Off button
System Reset button

LEDs

Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED

Expansion Slots PCI-Express

1 PCI-E 3.0 x16 (FH, 10.5" L)
5 PCI-E 3.0 x8 (FH, 10.5" L)
1 PCI-E 3.0 x8 (LP)
1 PCI-E 3.0 x8 (internal LP)

Drive Bays / Storage Hot-swap

12 Hot-swap 3.5" drive bays
12 SAS3 via opt. AOC

Note: Storage Add-on card is required

M.2

1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

Backplane 2U SAS/SATA backplane System Cooling Fans
