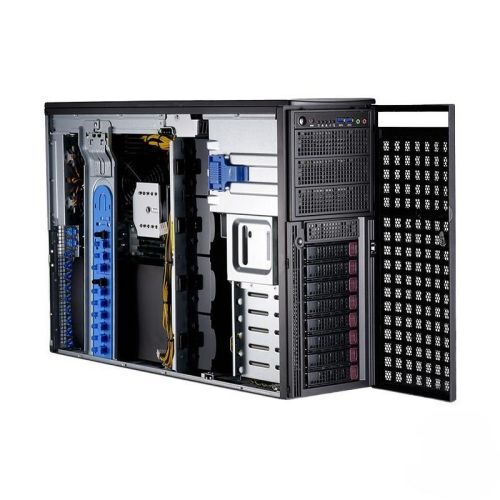

Product Details Brand: Tower model: Product situation: Hard disk backplane: HDD: Hard drive bays: Cooling fan: 2x intel Gold 6152 cpu 22Core Memory 8x 32G 2133MHz RAID Controller: Network card: Motherboard comes with its own network card Rack rails Note: The appearance of the chassis may have wear and scratches. The photos on the link are inventory photos, not actual photos. Please carefully browse the details for the actual configuration Product SKUs SYS-7049GP-TRT - SuperServer 7049GP-TRT style="box-sizing: border-box; line-height: 0; margin: 0px; display: block; content: "";"/>Super class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Dual Socket P (LGA 3647)
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
3 UPI up to 10.4GT/s - Support CPU TDP 70-205W
Cores Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)GPU Support - Please refer to:Compatible GPU list
System Memory Memory Capacity - 16 DIMM slots
- Up to 4TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
- Supports Intel® Optane™ DCPMM††
Memory Type - 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note†2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro ††Cascade Lake only. Contact your Supermicro sales rep for more info. On-Board Devices Chipset SATA - SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers - Intel® X550 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics Input / Output SATA LAN - 2 RJ45 10GBase-T ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
- 4 USB 2.0 ports (2 rear, 2 via headers)
Video Audio Serial Port/Header - 2 COM ports (1 rear, 1 Header)
System BIOS BIOS Type - AMI 32Mb SPI Flash class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Intel® Node Manager
- IPMI 2.0
- SSM,SPM,SUM
- SuperDoctor® 5
PC Health Monitoring CPU - Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
FAN - Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- Thermal Control for fan Factor
- 4U Rackmountable / Tower
- Optional Rackmount Kit
ModelWidthDepthPackage- 27" (H) x 13" (W) x 38" (D)
Weight- Net Weight: 46 lbs (20.9 kg)
- Gross Weight: 62 lbs (28.1 kg)
Available Colors
Front Panel
Buttons- Power On/Off button
- System Reset button
LEDs- Power status LED
- Hard drive activity LED
- Network activity LEDs
- System Overheat & Power Fail LED
Ports
Expansion Slots
PCI-Express- 4 PCI-E 3.0 x16 (double-width) slots
- 2 PCI-E 3.0 x16 (single-width) slots
- 1 PCI-E 3.0 x4 (in x8 slot)
Drive Bays / Storage
Hot-swap- 8 Hot-swap 3.5" drive bays
- Optional 4x 2.5" NVMe supported
M.2- 1 NVMe based M.2 SSD
- Form Factors: 2280, 22110
System Cooling
Fans- 4 Heavy duty fans
- 2 Rear exhaust fans
- 2 Optional Rear fans (required for Passive GPUs)
Heatsink- 2 Active heatsink with optimal fan speed control
Power Supply2200W Redundant Power Supplies with PMBusTotal Output Power and Input- 1200W with Input 100-127Vac
- 1800W with Input 200-220Vac
- 1980W with Input 220-230Vac
- 2090W with Input 230-240Vac
- 2200W with Input 220-240Vac (for UL/cUL use only)
- 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency(W x H x L)+12V- Max: 100A / Min: 0A (100-127Vac)
- Max: 150A / Min: 0A (200-220Vac)
- Max: 165A / Min: 0A (220-230Vac)
- Max: 174.17A / Min: 0A (230-240Vac)
- Max: 183.3A / Min: 0A (220-240Vac)
5VSBOutput TypeCertification Titanium Level
[Test Report]
Operating Environment
RoHS
Environmental Spec.- Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) - Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
