Product SKUsSYS-E200-9AP

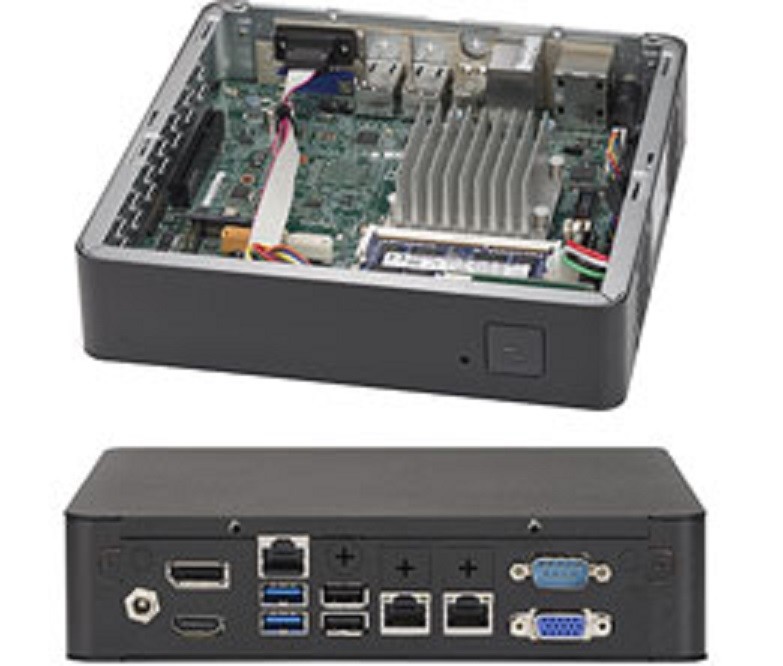

• SuperServer E200-9AP (Black)

Motherboard
Super A2SAV-LProcessor/CacheCPU

• Intel® Atom® Processor E3940, 4 Core, 64-bit, 14nm
• FCBGA 1296
• 1x 204-pin DDR3 SO-DIMM socket

Memory Type

• 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB

Memory Voltage

• 1.5 V, 1.35 V

On-Board DevicesSATA

• SoC controller for 2 SATA3 (6Gbps)

Network Controllers

• Dual GbE LAN with Intel i210IT controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video

• Intel HD Graphics

Input / OutputSATA

• 2 SATA3 (6Gbps) ports

LAN

• 2 RJ45 Gigabit Ethernet LAN ports

USB

• 2 USB 3.0 (rear)
• 2 USB 2.0 (rear)

COM Port

• 3 COM ports (1 rear, 2 headers)
  1 in RJ45, 1 in RS232, and 1 in RS485

DOM

• 1 SATA DOM (Disk on Module) power connector

Video

• 1 VGA, 1 DP (Display Port), 1 HDMI, 1 Intel HD Graphics

ChassisForm Factor

• Mini-ITX

Model

• 7.68" (195mm) / 15" (381mm) - pkg.

Height

• 1.75" (44.5mm) / 10.87" (276mm) - pkg.

Depth

• 7.68" (195mm) / 5.59" (142mm) - pkg.

Weight

• Gross Weight: 5.5 lbs (2.5 kg)
• Net Weight: 2.45 lbs (1.1 kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button

LEDs

• Power LED (Hard drive activity LED)

Expansion SlotsPCI-Express

• M.2 PCIe 2.0 x2, M Key 2242/2280/22110

Drive BaysInternal

• 1x 2.5" internal drive tray

System CoolingFans

• 1x 4cm high performance PWM fan; support up to 2 chassis fans

Power Supply60W DC Power AdapterSystem BIOSBIOS Type

• 64Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• SuperDoctor® 5
• Watch Dog

Power Configurations

• ACPI Power Management
• ATX Power connector
• Control of power-on for recovery from AC power loss
• CPU thermal trip support for processor protection

Fan

• Fans with tachometer status monitoring
• Status monitor for speed control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / A2SAV-L Motherboard
Embedded Mini-ITX ChassisPower AdapterMCP-250-10117-0N160W DC power adapterOptional Parts ListPart NumberQtyDescriptionDual System TrayMCP-290-10108-0B-Dual system tray for Mini-ITX systemmSATA 128GBHDS-MTM-THNSNH128GMCT-Toshiba mSATA 128GB MLCmSATA 256GBHDS-MTM-THNSNH256GMCT-Toshiba mSATA 256GB MLC
