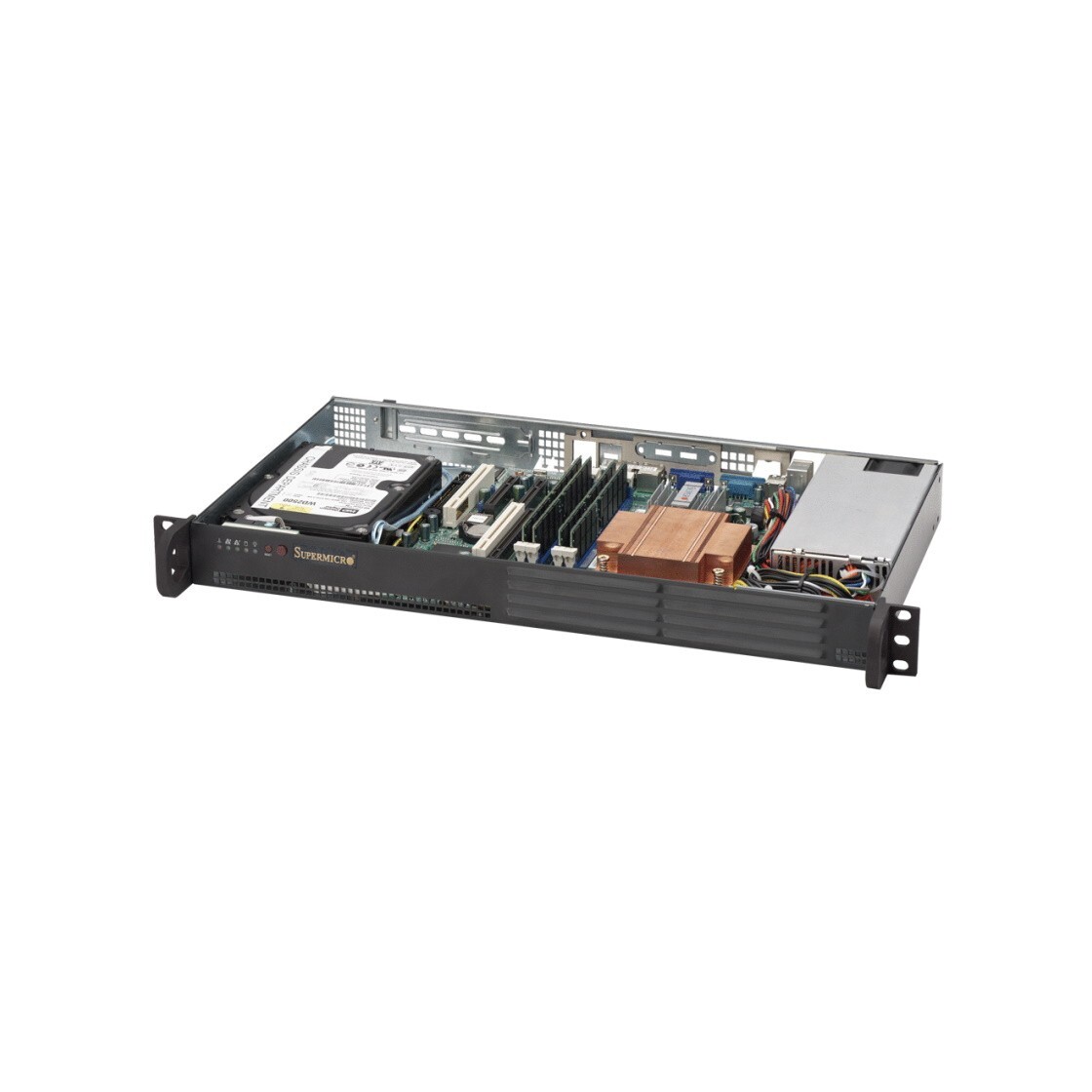

Supermicro SuperChassis CSE-502L-200B 1U Rackmount Short-Depth 200W Chassis NEWThese come with a 5 Year Warranty from Vector Data.
Product SKUsSuperChassis502L-200BForm Factor

• 9.8"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6"

Processor Support

• Intel® Atom™ processors

DimensionsHeight

• 1.7" (43 mm)

Width

• 17.2" (437 mm)

Depth

• 9.8" (249 mm)

Gross Weight

• 10 lbs (4.54 kg)

Packaging (W x H x L)

• N/A

Available Color

• Black

Expansion Slots

• 1x Full-height, Half-length expansion slot(s) (optional) (Riser Card Required)

Drive Bays

• Optional 1x 2.5" drive bay
• Optional 2x 2.5" Internal drive bay
• 1x 3.5" Internal drive bay
• SAS or enterprise SATA HDD only recommended

Front PanelButton

• Power On/Off button
• System Reset button
• Unit Identification (UID) button

LED

• Power status LED
• HDD activity LED
• 2 Network Activity LEDs
• Unit Identification (UID) LED

Operating Environment (System)Operating Temperature Range

• 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range

• -40°C - 60°C (-40°F - 140°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non Operating Relative Humidity Range

• 5% - 95% (non-condensing)

Power Supply1U 200W Multi-output power supply with 80plus w/20pin outputPower Efficiency

• 86%

Total Output Power and Input

• 200W with Input 100 - 240Vac

AC Input Frequency

• 192 x 76 x 40.3 mm

Output Type

• 20pin ATX

-12V

• Max: 0.5A / Min: 0A

+12V

• Max: 16A / Min: 0.2A (100Vac - 240Vac)

+5V

• Max: 8A / Min: 0.2A

+3.3V

• Max: 8A / Min: 0.2A

+5Vsb

• Max: 2A / Min: 0.2A

Certification

• CCC
• CE/EMC
• FCC class B
• TUV/CB
• UL/CUL

On-site installation is available for an additional fee. We also accept trade-in's of any systems or data center equipment that you may be trying to get rid of.
Vector Data builds Rugged, Carrier-Grade and Custom systems.
Vector Data is a Supermicro Authorized Partner and carries the largest inventory of Supermicro systems and parts in the world with over 10,000 brand new servers and over 80,000 motherboards in stock at 6 US warehouse locations. We make an effort to stock every Supermicro part ever produced.
We offer optional extended support contracts including 24x7 phone support and advanced parts delivery for any Supermicro products. We can also offer custom spare parts kits for any server if you would like to keep spares on-site.
On-site installation is available for an additional fee and we offer remote hands services at most major data center locations worldwide.
We offer trade-in credit for any surplus or decommissioned computer systems or data center equipment.
Only a small portion of our inventory is listed on . Please contact us to have an listing created if you require a custom configuration or a part that is not listed.
