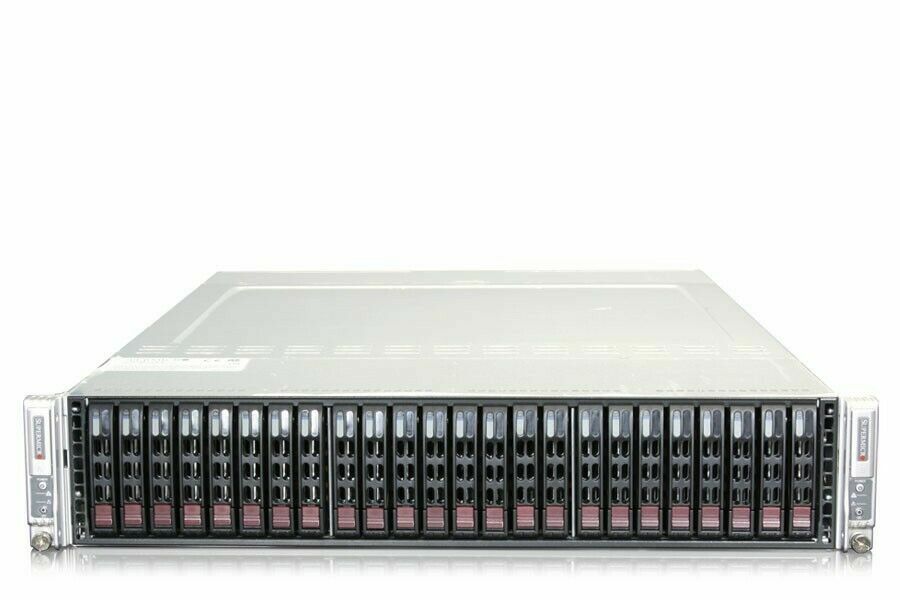

Supermicro SuperServer 2028TP-HC0R 4-Node Server X10DRT-P E5 V3/V4 CTO 2U
Chassis P/N:2028TP-HC0RNode P/N: X10DRT-P
In Good Condition, Full Working OrderTested2 Year Warranty
CTO Configure-To-OrderCTO Server, no memory, no CPU, no HDD included - required in order to operate, we can quote to supply if required
Included:

• 1 x Supermicro SuperServer 2028TP-HC0R4-Node Server Chassis
• 1 x 24x 2.5\" Bay BackplaneBPN-SAS3-217HQ
• 24 x Drive Caddies
• 4 x Fan ModulesFAN-0136L4
• 2 x 2000W Power SupplyPWS-2K02P-1R
• 4 x Server Nodes X10DRT-P Each With:
• 2 x Heatsinks for Intel E5 V3 and V4 CPU\'s
• 16 x DDR4 Memory Slots
• 1 x 64GB SATADOM-SL 3MEDESSL-64GD07RCADC-B157A
• 1 x TwinPro Riser card with one PCI-E x16 slot RSC-R1UTP-E16R
• 1 x Silicom Dual Port Fibre 10Gb EthernetPE210G2SP19A-XR
• 1 x Backplane Adapter Manufacturers specification:
  Product SKUsSYS-2028TP-HC0R
  • SuperServer 2028TP-HC0R (Black)
  Motherboard (Four per System)
  Super X10DRT-PProcessor/Cache (per Node)CPU
  • Intel® Xeon® processor E5-2600v4†/ v3 family (up to 145W TDP)*

  • Dual Socket R3 (LGA 2011)
  Cores / Cache
  • Up to22 Cores†/ Up to55MB†Cache
  System Bus
  • QPI up to 9.6 GT/s
  Note†BIOS version 2.0 or above is requiredSystem Memory (per Node)Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB†ECC 3DS LRDIMM, 512GB ECC RDIMM
  Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
  Memory Voltage
  • 1.2 V
  Error Detection
  • Corrects single-bit errors
  On-Board Devices (per Node)Chipset
  • Intel® C612 chipset
  SAS
  • Broadcom 3008 SAS3 (12Gbps) controller;
    RAID 0, 1, 10 support
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
  Network Controllers
  • Intel® i350-AM2 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 Realtek RTL8201N PHY (dedicated IPMI)
  Graphics
  • ASPEED AST2400 BMC
  Input / Output (per Node)SAS
  • 6 SAS3 (12Gbps) ports
  LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
  USB
  • 2 USB 3.0 ports total (2 rear)
  VGA
  • 1 VGA port
  Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header (internal)
  Others
  • 1SATADOMsupport on the motherboard
  ChassisForm Factor
  • 2U Rackmount
  Model
  • 17.25\" (438mm)
  Height
  • 3.47\" (88mm)
  Depth
  • 28.75\" (730mm)
  Weight
  • Gross Weight: 90 lbs (40.9kg)
  • Net Weight: 72 lbs (32.7 kg)
  Available Colors
  • Black
  Front PanelButtons
  • Power On/Off button
  • UID button
  LEDs
  • Power status LED
  • HDD activity LED
  • 2 Network activity LEDs
  • Universal Information (UID) LED
  Expansion Slots (per Node)PCI-Express
  • 1 PCI-E 3.0 x16 Low-profile slot
  0 Slot
  • 1x \"0 slot\" (x16)
  Drive Bays (per Node)Hot-swap
  • 6 Hot-swap 2.5\" SAS/SATA HDD trays
  System CoolingFans
  • 4 heavy duty 8cm PWM fans with optimal fan speed control
  Power Supply (76mm Width)2000W Redundant Power Supplies with PMBusTotal Output Power
  • 1000W: 100 – 127Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vdc (UL/cUL only)
  Dimension
  (W x H x L)
  • 76 x 40 x 336 mm
  Input
  • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
  +12V
  • Max: 83.3A / Min: 0A (100-127 Vac)
  • Max: 150A / Min: 0A (200-220 Vac)
  • Max: 165A / Min: 0A (220-230 Vac)
  • Max: 166.7A / Min: 0A (230-240 Vac)
  • Max: 166.7A / Min: 0A (200-240 Vac)
    (UL/cUL only)
  +5Vsb
  • Max: 1A / Min: 0A
  Output Type
  • 27 Pairs Gold Finger Level

    System BIOSBIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • PCI 2.2
    • ACPI 1.0 / 2.0
    • USB Keyboard support
    • SMBIOS 2.3
    • UEFI
    Operating Environment / ComplianceRoHS

    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
      -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)
    We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
