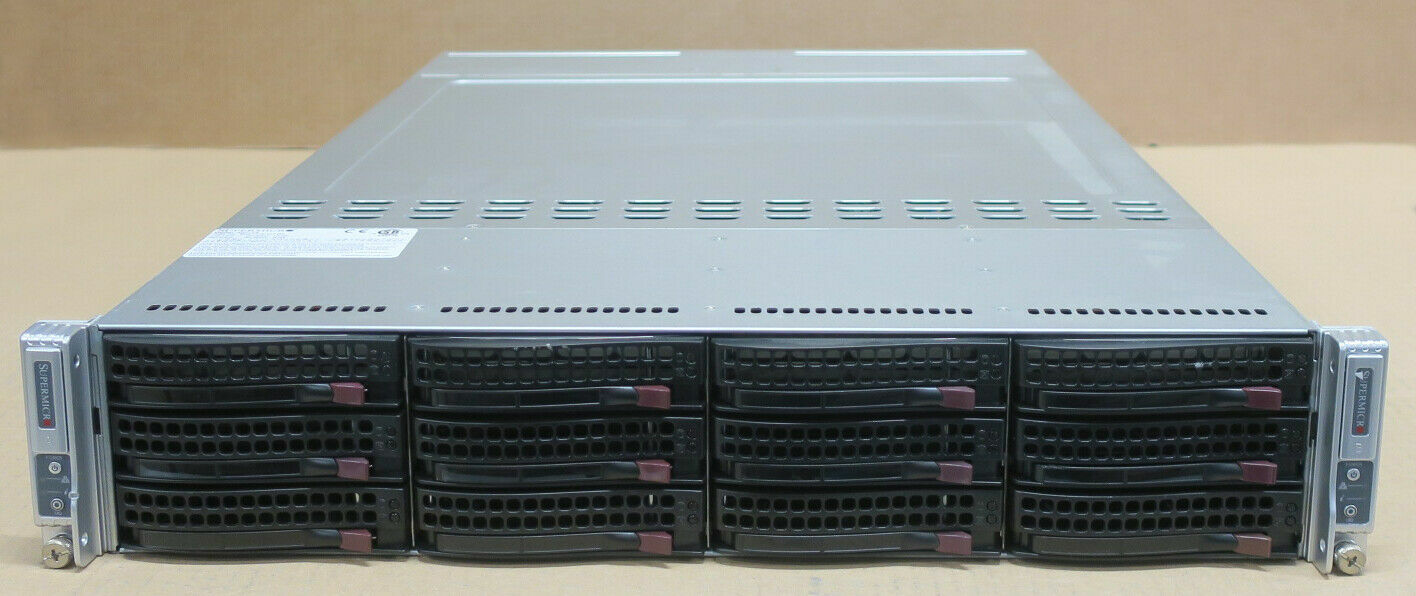

Supermicro SuperServer 6027TR-DTRF 2-Node Server X9DRT-HF 4x E5-2667 64GB Ram

Chassis P/N:6027TR-DTRF
Node P/N:X9DRT-HF

In Good Condition, Full Working Order
Tested
2 Year Warranty

Included

• 1 xSupermicro SuperServer 6027TR-DTRF2-Node Server Chassis
• 12 x 3.5" SAS / SATA Hard Drive Bays With 12 x Hard Drive Caddies
• Backplane - Super SAS-827HD
• 2 x 1280W Power Supply - PWS-1K28P-SQ
• 2 x Server NodesEach With:
• 2 x Intel Xeon Six-Core E5-2667 2.9GHz Processors With2 x Heatsinks
• 2 x 16GB DDR3 Memory
• Motherboard -X9DRT-HF rev 1.21A
• Backplane Adapter -BPN-ADPX9-6SATA rev 1.21
• 1 x 2U Riser Card W/ 3 PCI-E x8 Twin MBs - RSC-R2UT-3E8R rev 1.00

Full Manufacturers specification:
Product SKUsSYS-6027TR-DTRF

• SuperServer 6027TR-DTRF (Black)

Motherboard
Super X9DRT-HFProcessor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 135W TDP *)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 8x 240-pin DDR3 DIMM slots
• Up to 512GB DDR3 ECC LRDIMM
• Up to 256GB DDR3 ECC Registered memory (RDIMM)

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C602 Chipset

SATA

• SATA 2.0 & 3.0 with RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Input / Output (per Node)Serial ATA

• 2x SATA 3.0 ports (6Gbps)
• 4x SATA 2.0 ports (3Gbps)

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 3x USB 2.0 ports total
  (2x rear + 1x Type A)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

ChassisForm Factor

• 2U Rackmount

Model

• 17.25" (438mm)

Height

• 3.47" (88mm)

Depth

• 28.5" (724mm)

Gross Weight

• 85 lbs (38.6kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED

Expansion Slots (per Node)PCI-Express

• 3x PCI-E 3.0 (x8) slots (1x Low-profile and 2x Full-height half-length)

Drive Bays (per Node)Hot-swap

• 6x 3.5" Hot-swap SATA3/SATA2 HDD trays

System CoolingFans

• 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2AC Input

• 1000W Output @ 100-140V, 8-12A, 50-60Hz
• 1280W Output @ 180-240V, 6-8A, 50-60Hz

DC Output

• 1000W: +12V/83A; +5Vsb/4A
• 1280W: +12V/106.7A, +5Vsb/4A

CertificationPlatinum Certified
System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
