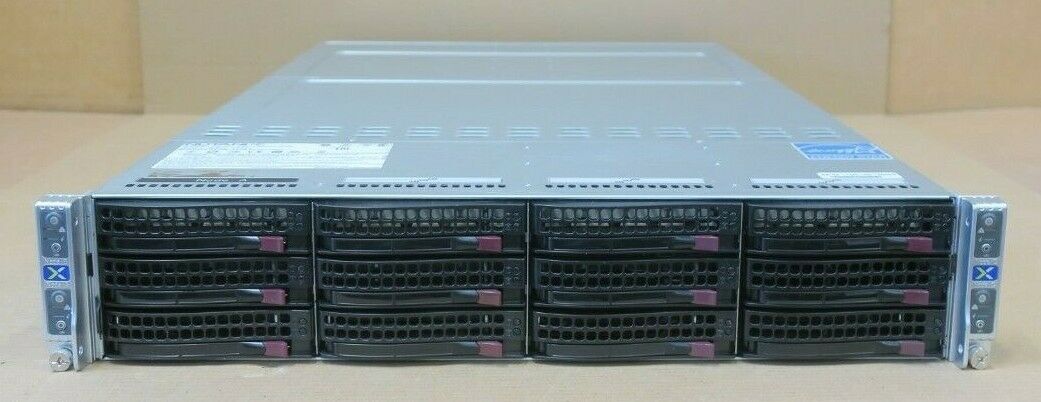

Supermicro SuperServer CSE-827 2x Node 4x E5-2609v4 32GB 12 x 3.5" Bay X10DRT-P-G5Chassis P/N: CSE-827Node P/N: X10DRT-P
In Good Condition, Full Working OrderTested1 Year Warranty
Included:

• 1 x Supermicro SuperServer
• 2 x Power Supplies 1600W Power Supply PWS-1K68A-1R
• 1 x Backplane - BPN-SAS3-827HD2-N4
• 12 x 3.5" HDD caddies

• 2 x Server NodesX10DRT-P nodes each with
• 2 x Intel Xeon Eight-Core E5-2609v4. 1.7GHz Processors With 2 x Heatsinks
• Motherboard - Super X10DRT-P-G5
• Backplane - BPN-853008N42U
• 16GB Ram

Full Manufacturers specification:
MBD-X10DRT-P

• X10DRT-P

Physical StatsForm Factor

• Proprietary Twin

Dimensions

• 6.8" x 18.86" (17.27cm x 47.9cm)

Processor/CacheCPU

• Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
• Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W

Cores / Cache

• Up to 22 cores † / Up to 55MB† cache

Note

• † BIOS version 2.0 or above is required

Note

• ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System MemoryMemory Capacity

• 2TB 3DS ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
• LRDIMM: 32GB, 64GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel® C612

SATA

• Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

AHCI SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Dual LAN with Intel® Ethernet Controller I350-AM2
  Single LAN with Virtual Machine Device Queues reduce I/O overhead
  Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Graphics

• Aspeed AST2400 BMC

Input / OutputSATA

• 10 SATA3 (6Gbps) port

LAN

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 3 USB 3.0 ports (2 rear + 1 Type A)

Video Output

• 1 VGA port

TPM

• 1 TPM Header

Expansion SlotsPCI-E

• 1 PCI-E 3.0 x16,
• 1 PCI-E 3.0 x8,
• 1 PCI-E 3.0 x8 connector for SMC add-on cards,
• 1 PCI-E 3.0 x16 connector for SMC add-on cards,
• (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)

System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1

ManagementSoftware

• IPMI2.0, NMI, SuperDoctor® 5, Watchdog

System Management Software

• SPM
• SUM
• SSM
• SuperDoctor 5

Power Configurations

• ACPI Power Management
• Power-on mode for AC power recovery

PC Health MonitoringVoltage

• +12V, +3.3V, +5V, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT

FAN

• 2x 4-pin fan headers (up to 2 fans), 4 fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Temperature

• Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 4 Fan Connectors (2 fans on backplane), Thermal Monitor 2 (TM2) support, PECI

LED

• CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features

• RoHS

Operating EnvironmentOperating Temperature Range

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£600 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
