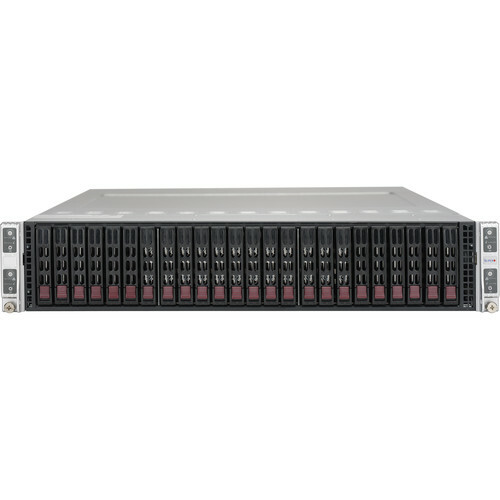

Supermicro SuperServer SYS-2028TR-HTR 24S FF 4 x Node Intel E526xx V3/V4 DDR4
Node Motherboard Part Number:Super X10DRT-HChassis Part Number:2028TR-HTR
In Good Condition, Full Working OrderTested1 Year Warranty
CTO Configure-To-Order - No Processors, No Memory, No Hard Drives IncludedIncludes:
- 1 xSupermicro CSE-217 2028TR-HTR4-Node Server 2U Chassis
- 24-Bay 2.5\" SAS/SATA Backplane (6x Drives Per Node) -BPN-SAS-217HQ With:
- 24 x 2.5\" Drive Caddies and Screws
- 2 x 1600WPWS-1K68A-1R Power Supplies
- 4 x X10DRT-H Node Servers Each With:
- Up to 2x E5-2600v3/v4 Processors With 2 x Heatsinks Included
- Up to 8x DDR4 DIMM Slots
- 1 x BackplaneBPN-ADPX9-6SATA For Up to 6x SATA Ports
- 1 x RiserRSC-R1UTP-E16R With 1 x PCI-E x16 Slot
Manufacturers Specification:
Product SKUsSYS-2028TR-HTR
- SuperServer 2028TR-HTR (Black)
Motherboard (Four per System)
Super X10DRT-HProcessor/CacheCPU
- Intel® Xeon® processor E5-2600v4†/ v3 family (up to 145W TDP)*
- Dual Socket R3 (LGA 2011)
Cores / Cache
- Up to22 Cores†/ Up to55MB†Cache
System Bus
Note†BIOS version 2.0 or above is requiredSystem MemoryMemory Capacity
- 8x 288-pin DDR4 DIMM slots
- Up to 1TB†ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
- RDIMM: 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
Memory Voltage
Error Detection
- Corrects single-bit errors
On-Board Devices (per Node)Chipset
SATA
- SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers
- Intel® i350 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
Video
Input / Output (per Node)Serial ATA
LAN
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
USB
Video
ChassisForm Factor
Model
Height
Depth
Package
- 26.4\" (H) x 11.2\" (W) x 39.8\" (D)
Weight
- Gross Weight: 85 lbs (38.6kg)
- Net Weight: 54.5 lbs (24.7 kg)
Available Colors
Front PanelButtons
- Power On/Off button
- System Reset button
- UID button
LEDs
- Power status LED
- HDD activity LED
- 2x Network activity LEDs
- Universal Information (UID) LED
Expansion Slots (per Node)PCI-Express
- 1x PCI-E 3.0 (x16) Low-profile slot
Drive Bays (per Node)Hot-swap
- 6x 2.5\" Hot-swap SATA3 drive bays
System CoolingFans
- 4x 8cm heavy duty fans with PWM fan speed control
Power Supply (76mm Width)1600W 1U Redundant Power Supplies with PMBusTotal Output Power
- 800W: 100 – 140Vac
- 1600W: 180 – 240Vac
Dimension
(W x H x L)
Input
- 100-140Vac / 10-7A / 50-60Hz
- 180-240Vac / 11-8A / 50-60Hz
+12V
- Max: 67A / Min: 0A (100-140Vac)
- Max: 133A / Min: 0A (180-240Vac)
+5Vsb
Output Type
- 27 Pairs Gold Finger Level
System BIOSBIOS Type- 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features- Plug and Play (PnP)
- APM 1.2
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
- UEFI
Operating Environment / ComplianceRoHS
Environmental Spec.- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
