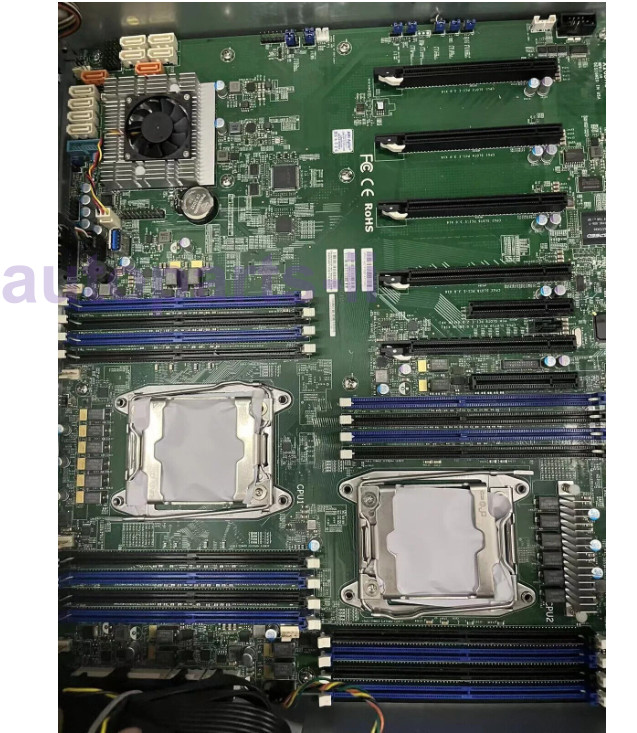

Supermicro X10DRG-Q DDR4 Server Motherboard Intel C612 Dual Xeon LGA2011 -V3 V4

Price: CN $222.21

Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for you.

FOR Supermicro X10DRG-Q Intel C612 Dual Xeon LGA2011 -V3 V4 Motherboard

MBD-X10DRG-Q

·X10DRG-Q

Physical Stats

Form Factor

·Proprietary

Dimensions

·15.2" x 13.2" (38.61cm x 33.53cm)

Processor/Cache

CPU

·Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.

·Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s

Cores / Cache

·Up to 22 cores † / Up to 55MB† cache

Note

·† BIOS version 2.0 or above is required

Note

·** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory

Memory Capacity

·16x 288-pin DDR4 DIMM slots ,

·Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM

Memory Type

DIMM Sizes

·RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB

·LRDIMM: 32GB, 64GB

·3DS LRDIMM: 128GB

Memory Voltage

·1.2V

Error Detection

·Corrects single-bit errors

On-Board Devices

Chipset

·Intel® C612

SATA

·RAID 0,1,5,10

·Intel® C612 controller for 6 SATA3 (6 Gbps) ports;

AHCI SATA

·SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA

·SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI

·Support for Intelligent Platform Management Interface v.2.0

·IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

·ASPEED AST2400 BMC

Network Controllers

·Dual LAN with Intel® i350 Gigabit Ethernet Controller
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Audio

·HD Audio with optical S/PDIF

Graphics

·Aspeed AST2400 BMC

Input / Output

SATA

·10 SATA3 (6Gbps) port

LAN

·1 RJ45 Gigabit Ethernet LAN ports

·2 RJ45 Gigabit Ethernet LAN ports

USB

·4 USB 2.0 ports (2 rear + 2 headers)
