NOS (New Old Stock) Supermicro X10SAE Motherboard – MBD-X10SAE-O

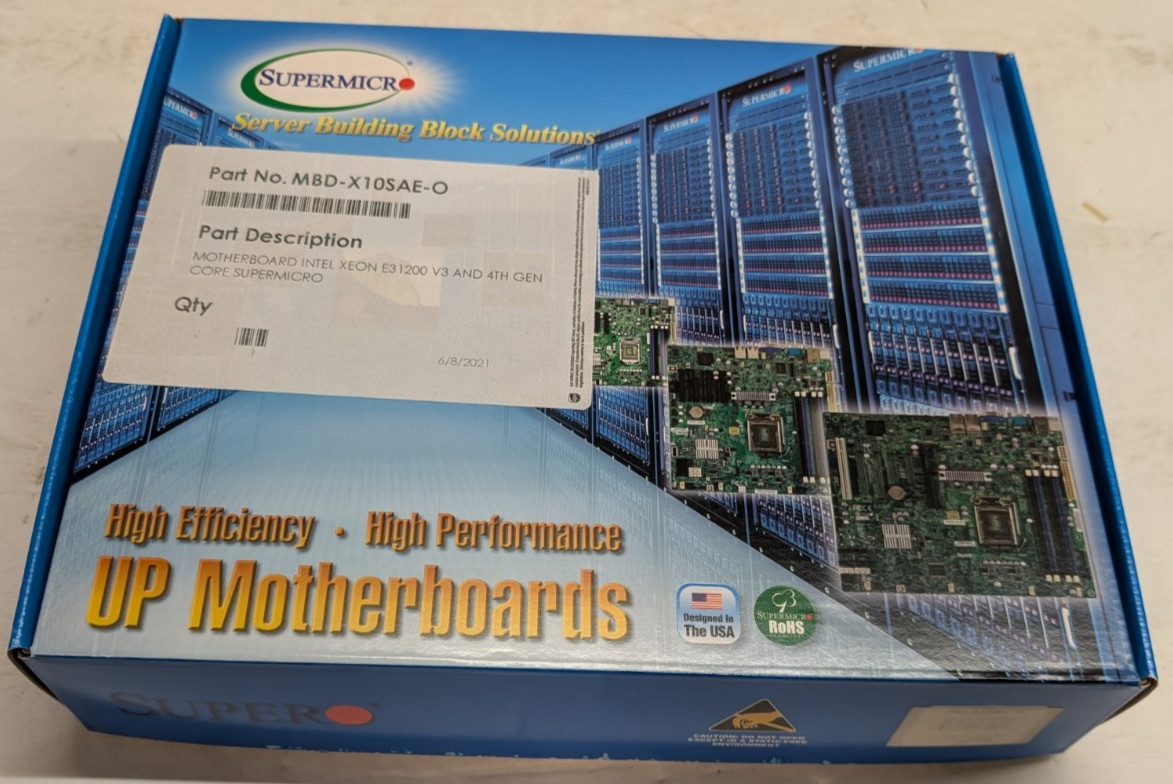

Brand new, unused ATX server/workstation motherboard in original Supermicro retail box. Dated ~2021 packing. Board still in anti-static bag. Complete with I/O shield (MCP-260-00063-0N), multiple SATA cables (CBL-0044L), manuals, quick reference guide, and checklist as shown in photos.

Manufacturer: Super Micro Computer, Inc. (Supermicro)
X10SAE is EOL/discontinued

Key Specifications (from official Supermicro data):

• Form Factor: ATX (12" × 9.6")
• CPU: Single Socket H3 (LGA 1150). Supports Intel Xeon E3-1200 v3/v4 and 4th/5th Gen Core i7/i5/i3, Pentium, Celeron. Graphics-integrated CPU required for onboard video.
• Chipset: Intel C226 Express PCH
• Memory: 4× 240-pin DDR3 DIMM slots. Up to 32 GB ECC/non-ECC UDIMM, 1600 MHz (also supports 1333/1066). 1.5 V / 1.35 V. ECC corrects single-bit / detects double-bit errors.
• Expansion: 2× PCIe 3.0 x16 (operate as x16/NA or x8/x8), 3× PCIe 2.0 x1, 2× PCI 5 V 32-bit.
• Storage: 8× SATA 3.0 (6 Gbps) total — 6 via Intel PCH (RAID 0/1/5/10) + 2 via ASM1061. SATA DOM power connector support.
• Networking: Dual Gigabit Ethernet (Intel i217LM + i210AT).
• USB: 6× USB 3.0 (2 rear + 4 headers) + 10× USB 2.0 (4 rear + 6 headers).
• Video (with compatible CPU): 1× VGA, 1× HDMI, 1× DVI, 1× DisplayPort.
• Audio: Realtek ALC1150 7.1 HD Audio.
• Other: TPM header, 2× COM headers, 2× IEEE 1394a headers, PS/2, DOM power, SPDIF, UEFI BIOS, ACPI power management, SuperDoctor III support.
• Optimized chassis examples: SC732D4-903B, SC732G-903B, SC743TQ series, etc.

Condition: NOS / New Old Stock. Original box, unused board. Opened only for inspection/photos. No tech support is provided. No guarantee or knowledge of any compatibility issues. Please make sure this is the exact part number needed for your application.

Ideal for server, workstation, NAS, or legacy Xeon/Core build. Pair with a graphics-integrated E3-1200 v3/v4 or 4th Gen Core CPU and DDR3 UDIMMs.
