Product Description
Please note: The buyer is responsible for customs clearance and payment of duties.
If you have other configuration needs, you can contact us and we will customize it for you.

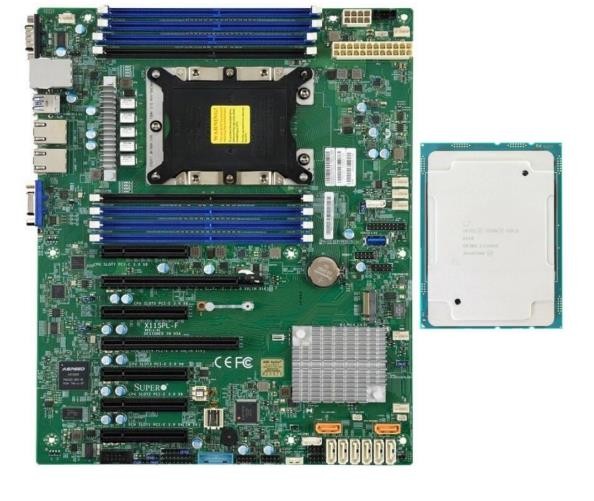

Supermicro X11SPL-F Motherboard With 1x Intel Xeon Gold 6230 20Cores 2.1GHz CPU
Package include:
1x Supermicro X11SPL-F
1 x Intel Xeon Gold 6230 20 CORE 2.10GHZ CLGA3647
Motherboard
Motherboard chipMain chipsetIntel C621Chip manufacturersIntelChipset descriptionUses Intel C621 chipsetGraphics chipAspeed 2500Network chipsOnboard dual Intel I210-AT Gigabit network cards
CPU specificationsApplicable PlatformsIntel platformCPU typeXeonCPU socketLGA 3647
Memory specificationsMemory typeDDR4Memory description8×DDR4 DIMMs support up to 2TB ECC memory,
Expansion slotsPCI slotsPCI-E 3.0×8
PCI-E 3.0×8
PCI-E 3.0 x4 (×8)SATA interfaceSATA3 (6 Gbps) port
I/O interfaceUSB interface5× USB3.0, 8× USB2.0 interfaceParallel serial port2×COM interfaceOther internal sockets1×TPM interfaceExternal portVGA interface
Form factorMotherboard form factorATXForm factor30.48×24.38cm
Software managementBIOS performanceAMI UEFI
Other featuresOther features7 x 4-pin fan head, fan speed control, signs of overheating, PWM fan speed control, system level control
Product characteristicsProduct feature 1Product SKU
MBD-X11SPL-F X11SPL-F
Physical Statistics
Constituent factors
ATX
Dimensions
12" x 9.6" (30.48cm x 24.38cm).
Processor/Cache
CPU
3647nd generation Intel Xeon Scalable Processor (Cascade Lake-SP), Intel®®Xeon®® Scalable Processor.
Supports single-socket P (LGA 165), CPU TDP supports 28W
cores/cache
Up to 3 cores
Note BIOS 0.<>a
or higher is required to support the <>nd generation Intel Xeon Scalable Processor-SP
Product feature 2System memory
Memory capacity
up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, 8 DIMM slots;
Up to 1TB Intel Optane DC persistent memory in memory mode (Cascade Lake only)
Memory type
size
RDIMM: 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB, 128GB 3DS LRDIMM: 64GB, 128GB, 256GB
Memory voltage
1.2V
Error detection
Corrects single-bit errors
Onboard device
chipset Intel C621 SATA
Intel ®®C621 controller for 8
SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controller
Dual LAN
image with 1GbE and Intel®I210 Aspeed AST2500 BMC
Product feature 3Input and output SATA
8
SATA3 (6Gbps) ports
LAN 2 RJ45 Gigabit Ethernet LAN ports USB 8 USB 2.0 ports (2 rear + 6 headers)
5
USB
3.0 ports (2 rear +
2 headers+ 1 x Type A) Video output 1 x VGA port
Serial port/header
2 COM ports (1 back,
1 plug)
TPM TPM
Title
Expansion slot
PCI-E 2 PCI-E 3.0 x8 (x16 slots),
4 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (x8 slots) M.2
M.2 interfaces: PCI-E
3.0 x4 and SATA
Form factor: 2280, 22110
Key: M-Key
Dual Height Connector
System BIOS BIOS Type AMI UEFI
BIOS
Features
ACPI
RTC (Real Time Clock) wake-up
SMBIOS 3.0 or later
Management
software
Intel ® Node Manager, IPMI 2.0, KVM WITH DEDICATED LAN, NMI, SPM, SUM, SuperDoctor®5,
Power Configuration
ACPI Power Management Power-On
mode for AC power recoveryProduct feature 4PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V,
+5V Standby, 3.3V Standby, 7 Fan Status, Chassis Open Connector, HT, Monitor CPU
Voltage, Support System Management Utility, VBAT
Fan 7 x 4-pin fan headers (up to
7 fans), Fan speed control, Overtemperature LED indication, PWM fan speed control, system level control
temperature
CPU thermal trip support, PECI LED CPU / SYSTEM OVERHEATING
LED
, UID / REMOTE UID, PAUSE STATIC INDICATOR LED
other features
ACPI power management, power-on control to recover from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL
Operating environment
Operating temperature range
0°C~50°C (32°F~122°F).
Non-operating temperature range -40°C - 70°C (-40°F - 158°F) Operating relative humidity range
8% - 90% (noncondensing)
Non-operating relative humidity range
