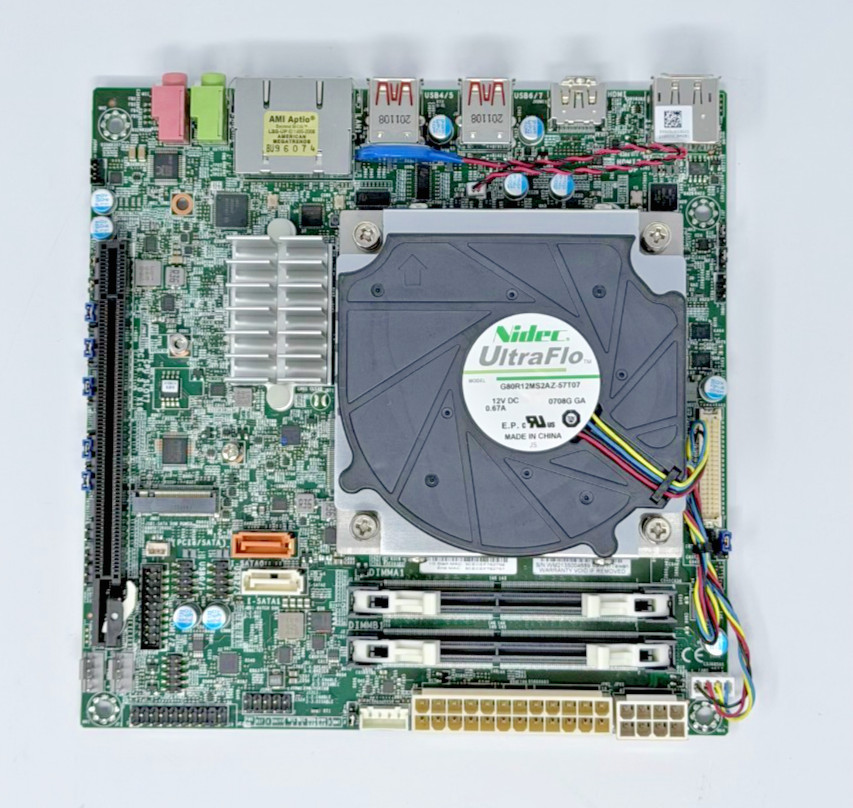

Supermicro X12SCV-LVDS Mini-ITX Embedded CPU LGA1200 W480E Xeon W-1200 10th Gen
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Supermicro X12SCV-LVDS Mini-ITX Embedded CPU LGA1200 W480E Xeon W-1200 10th Gen
Price: US $179.99

Specifications

  • Model: X12SCV-LVDS (MBD-X12SCV-LVDS)
  • Form factor: Mini-ITX, 6.7" × 6.7" (17.02 × 17.02 cm)
  • Socket: LGA-1200 (Socket H5)
  • Chipset: Intel W480E
  • CPU support: Intel Xeon W-1200, 10th Gen Core i9/i7/i5/i3, Pentium, Celeron — up to 10 cores,65W TDP maximum
  • Memory:2× DDR4 SO-DIMM slots, ECC or non-ECC, DDR4-2933, up to 64GB total
  • Expansion: 1× PCIe 3.0 x16 (16/NA or 8/8)
  • M.2: 1× M-Key SATA/PCIe 3.0 x4 (2242/2280), 1× E-Key CNVi/PCIe 3.0 x1 (3042)
  • Storage: 2× SATA3 6Gb/s, RAID 0/1, 1× SuperDOM header
  • Display: 2× HDMI, 1× DisplayPort,1× LVDS— 3 independent displays
  • Networking: Intel I219LM + Intel I210-AT, 2× Gigabit
  • Audio: 7.1 channel


Buy Now
