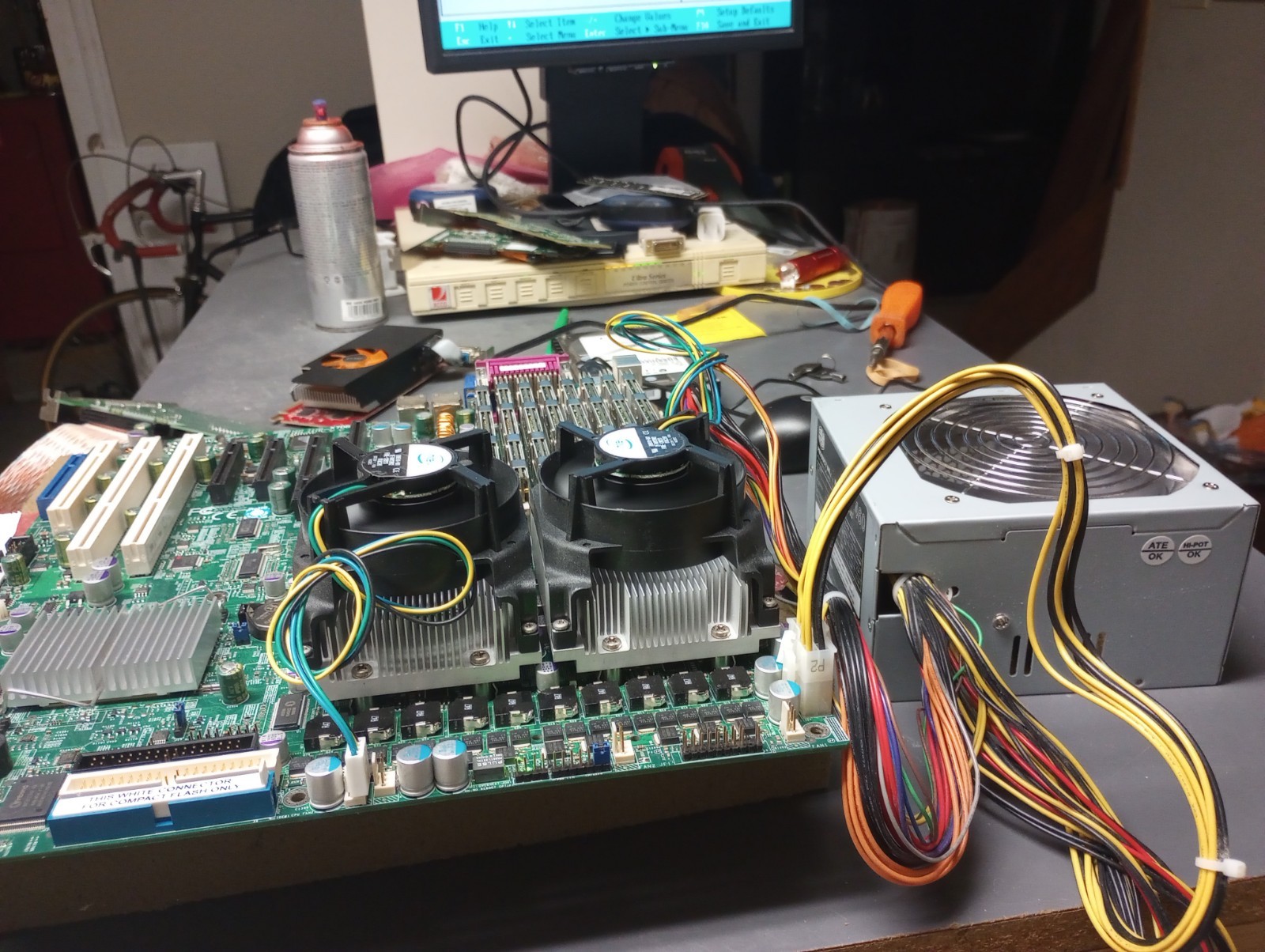

Supermicro x7dbn motherboard,5160 x2 CPU's, Fans and 16 Gb Memory.
- 2x 5160 Dual Core 3.0 Ghz L2 4Mb FSB-1333Ghz
- 2x Complete Intel Heatsink / Fan assembly bolted to MB with orignal Hardware
- 16 Gb ECC 667 Mhz ram with Heatsink (2Gbx8)
Motherboard Specs BriefTheSupermicro X7DBN is an Extended ATX (E-ATX) server motherboard built on theIntel 5000P chipset. [1]
·Form Factor: Extended ATX (E-ATX, 305mm x 332mm)
·Chipset: Intel 5000P (Blackford)
·CPU Support: Dual LGA 771 sockets for Intel Xeon processors (Quad-Coreor Dual-Core 5000, 5100, 5200, 5300, and 5400 series)
·Memory Support: Up to 32GB of DDR2 Fully Buffered DIMM (FB-DIMM) ECC memoryacross 8 slots (speeds of 533/667 MHz) [1, 2, 3, 4]
Expansionand I/O
·Expansion Slots: 2x PCI Express x8, 1x PCI Express x4, 2x PCI-X, 1x PCI, and1x UIO slot
·Storage: 6x SATA 3.0 Gb/s ports
·Networking: Dual Gigabit Ethernet (Intel 82563EB controllers)
·Graphics: Onboard ATI ES1000 video controller with 16MB VRAM
·IPMI: SIMLP IPMI 2.0 slot for remote management [1, 2]
·Check out board specifications on The Retro Web
