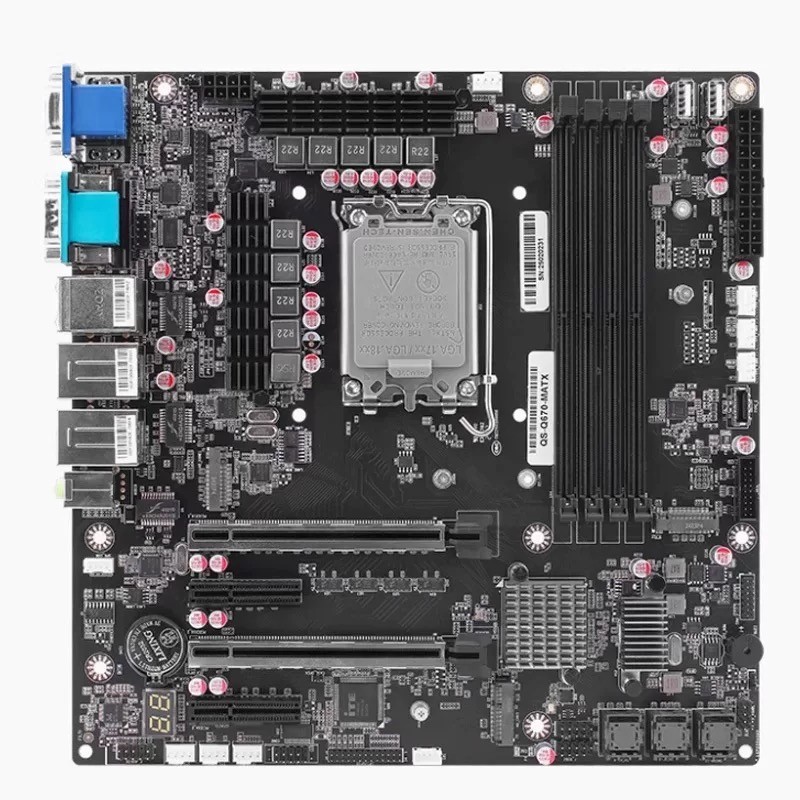

Support 12/13/14th Gen LGA1700 CPU NAS Motherboard Q670 Intel vPro

Matte black PCB

8-layer high-density fiberglass circuit board

Full protection (supports all USB, audio, and network interfaces)

Processor

• Supports Intel 12th/13th/14th Gen LGA1700 desktop processors

• Note:vPro functionality requires an i5-1X500 or higher processor (F-series not supported; requires integrated graphics).

• Note:Default support for 125W TDP processors; K-series processors are not recommended.

• Note:Recommended to use T-series processors (e.g., 13500T) for energy efficiency and long-term use.

Memory

• Supports desktop U-DIMM DDR5 memory (ECC not supported)

• 4 × U-DIMM DDR5 dual-channel memory slots

• DDR5 default support: 5600MHz (Note:12th Gen processors only support 4800MHz)

• Max single stick: 32GB | Max motherboard support: 128GB

TDP

• Base power consumption: 125W

Storage

• 2 × M.2 NVMe PCIe 4.0 x4 slots (2280-22110 compatible)

• 12 × SATA3.0 (6Gbps) (expanded via three SFF-8643 interfaces)

Networking

• 2 × Intel i226-V 2.5G RJ45 ports

• 1 × Intel i226-LM 2.5G RJ45 port (supports vPro remote management)

Graphics

• Integrated graphics determined by CPU

• PCI-E x16 slot supports various PCI-E graphics/network cards

• HDMI 2.0: Supports 4K @ 4096×2160, 60Hz

• DP 1.4: Supports 4K @ 4096×2160, 60Hz

• VGA: Supports 1080P @ 60Hz

Onboard Interfaces

• 1 × CPU-FAN header

• 6 × SYS-FAN headers

• 1 × 8-pin ATX power connector

• 1 × 24-pin ATX power connector

• 1 × USB 3.0 socket

• 1 × Type-C socket

• 1 × eDP display output

• 2 × M.2 NVMe PCIe 4.0 x4 slots (2280 & 22110 compatible)

• 3 × SFF-8643 interfaces (expandable to 12 SATA3.0 drives)

• 4 × U-DIMM DDR5 slots

• 2 × PCI-E x16 slots (runs at x8 speed if both are used)

• 2 × PCI-E x4 slots

• 2 × USB 2.0 vertical headers (for dongles/boot drives)

• 1 × USB 2.0 pin header

• 1 × CNVi Wi-Fi slot (supports AX201/211/401/411 cards only)

Rear I/O Panel

• 1 × HDMI 2.0

• 1 × VGA

• 1 × DP 1.4

• 1 × BIOS reset button

• 1 × Type-C 3.2 Gen2×2 port (no display support)

• 1 × Serial port (DB9)

• 3 × 2.5G RJ45 ports

• 2 × USB 2.0 ports

• 4 × USB 3.0 ports

• 2 × Audio jacks

Form Factor

• mATX: 9.6 × 9.6 inches (244 × 244 mm)

• Solid-state capacitor design

Operating System

• Supports Microsoft Windows Server/10/11 64-bit

• Linux compatible

• EFI mode US
