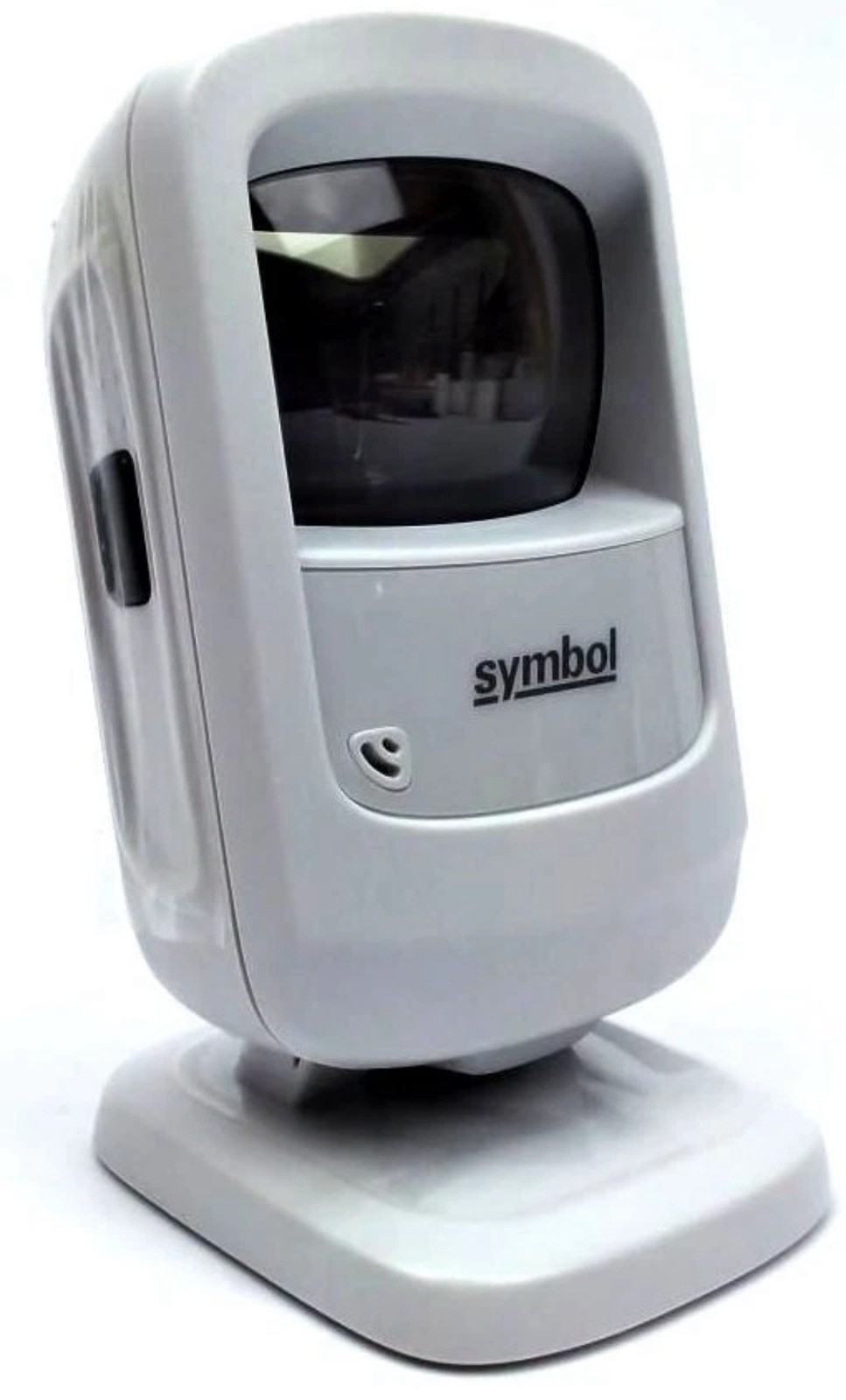

The Symbol DS9208 Barcode Imager Scanner is a high-quality scanning device known for its omnidirectional scanning capabilities. With an IP52 rating, this scanner is designed to withstand various environmental conditions while providing accurate scanning results. It operates on an average current of 230ma during scanning and 150ma during idle time, making it efficient and energy-efficient. The scanner is compatible with multiple interfaces including USB, keyboard wedge, RS-232, and RS-485, ensuring seamless connectivity with different devices. Made in Mexico, this scanner is a reliable and durable option for businesses and individuals in need of efficient barcode scanning technology.

Open Box

Scanner Only

Technical Specifications

Item

Description

Physical in H x 3.232 in W x 3.150 in D

14.0 cm H x 8.21 cm W x 8.0 cm D

Weight

9.5 oz (269.3 g)

Voltage and Current

Idle: 5 +/-10% VDC @ 150 ma average

Scanning: 5 +/-10% VDC @ 230 ma average

Performance Characteristics

Light Source

Aiming dot: 625 nm LED

Illumination: 630 nm LEDs

Imager Field of View (Horizontal x Vertical)

46° H x 29.50 V

Roll Speed

Up to 90 in (2.3 m) per second

Symbology Decode Capability

PDF417 (and variants)

F417 (Standard, Macro), MicroPDF417 (Standard, Macro), Compo des (CC-A, CC-B, CC-

2D

LC-39, Aztec (Standard, Inverse), MaxiCode, Data Matrix/ECC 20 lan Xin ( lagas st, OR Code Standard, Inverse, Micro, G51

Postal

4CB, Mailmark

Minimum Resolution

code 39 - 4 mil

JPC - 7.8 mil (60%)

PDF417 - 5 mil,

Data Matrix - 7.5 mil

QR Code - 7.5 mil
