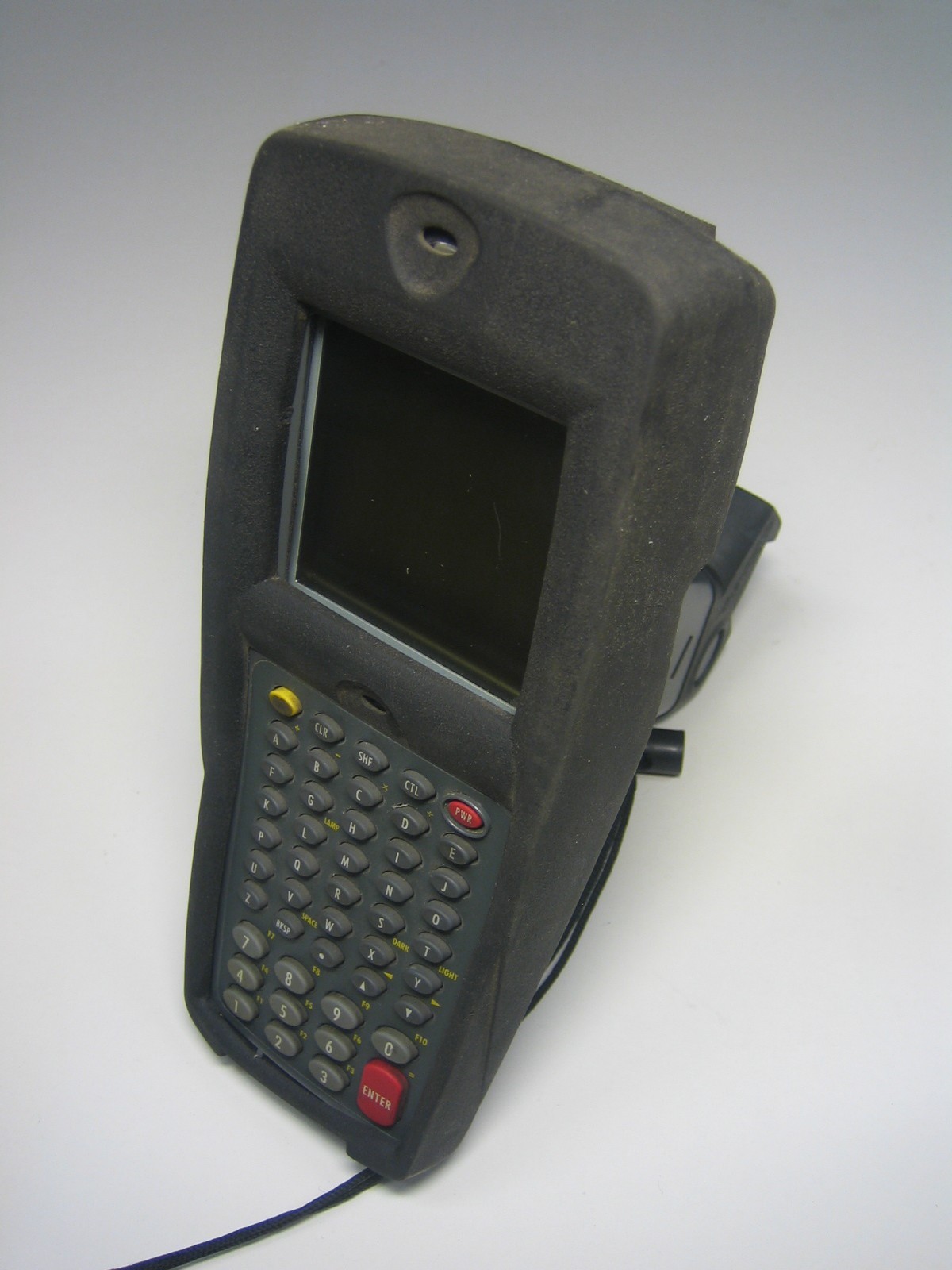

Symbol PDT6800 Handheld Wireless Barcode HandScanner Hand Scanner 64-Key
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
Symbol PDT6800 Handheld Wireless Barcode HandScanner Hand Scanner 64-Key
Handheld Barcode Scanner
Brand: Symbol
Model: PDT6800 64-Key
Symbol PDT6800 Specifications
Physical Characteristics
Dimensions
7.0 in. H x 3.5 in. W x 8.8 in. L/178 mm H x 89 mm W x 224 mm L
Weight
Batch: 24oz (672gm) with battery
Wireless: 26oz (728gm) with battery
Operating Temperature
-13F to 122F (-25C to 50C)
Storage Temperature
-13F to 140F (-25C to 60C)
Humidity
95% relative humidity, non condensing
Drop Specifications
Multiple 4ft (1.2m) drops to concrete
Environmental Sealing
MIL-STD-810E/ SAEJ1211/IP54
ESD
15KV electrostatic discharge to all surfaces without loss of data
Keyboard, Standard
35 or 46 large, hard, alphanumeric keys
Keyboard, IBM
46 key, IBM 5250 or 3270 keypads and overlays
Display
16-line by 21-character FSTN LCD, back light, reverse video, double-high and double-wide characters
Power
Removable, rechargeable battery pack
Performance Characteristics
CPU
80C88 type @ 8 Mhz
Operating System
DR-DOS
ROM
128KB EPROM (DOS, terminal diagnostics)
RAM
640KB Standard (up to 6.1 MB for batch option)
Non-Volatile Memory
256KB Standard (up to 1.2 MB for RF option)
Application Development
Symbol Series 3000 Applications Development Kit
Wireless Data Communications
Wireless Local Area Network
Optional IEEE standards-based Spectrum24 802.11 or 802.11b
Data Rate
2 Mbps (frequency hopping) and 11 Mbps (direct sequence)
Frequency Range
Country dependent, typically 2.4 to 2.5 GHz
Antenna
Internal
