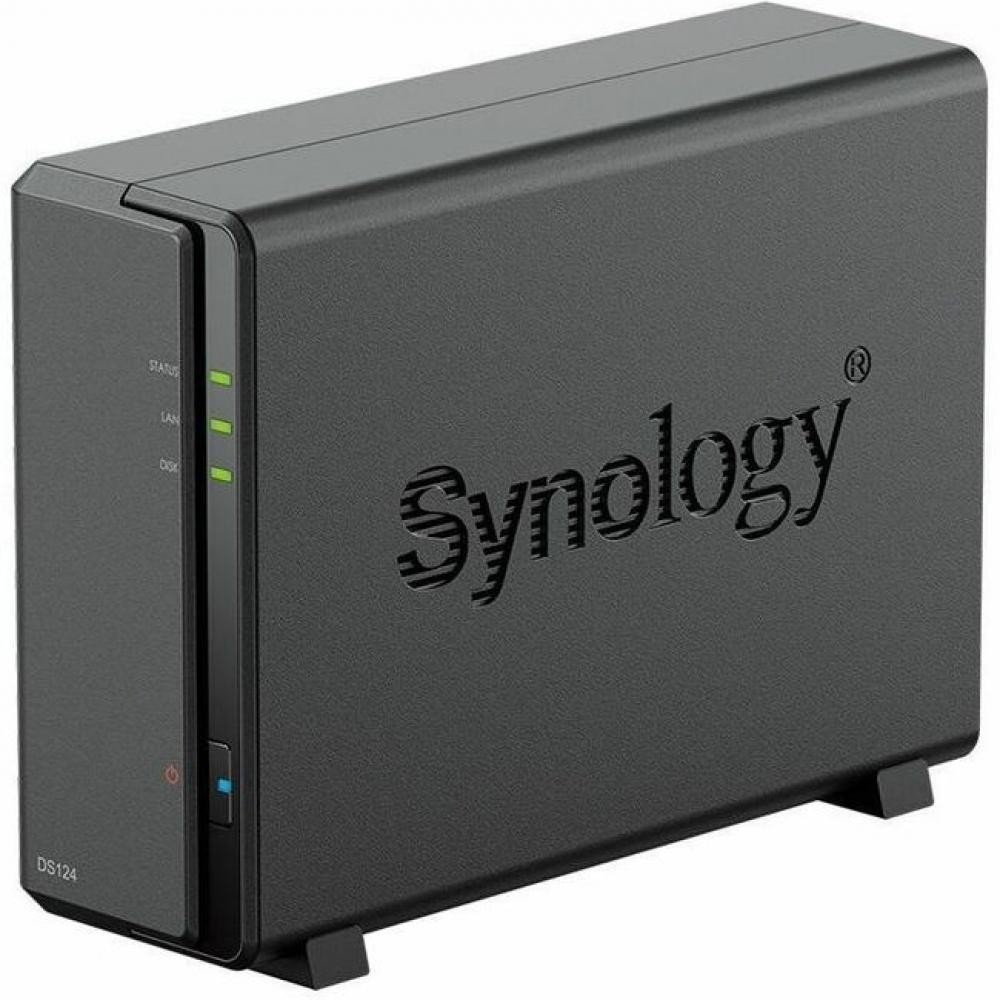

Synology DiskStation DS124 SAN/NAS Storage System Synology DiskStation DS124 SAN/NAS Storage System

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

DiskStation DS124
Smooth data management in a mini form factor
Take command of your most important data
Secure private cloud
Anywhere, anytime secure access to all your data.
Data sharing made easy
Streamline teamwork and access to shared files.
Hassle-free backups
Effortlessly protect files using intuitive tools.
Productivity in the private cloud
DS124 is designed for professionals to share, sync, and work together more efficiently.
Anytime, anywhere access
Access, manage, and share your files and media from anywhere with Synology Drive. Available on PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser.
Intelligent backup and syncing
Safeguard against ransomware attacks or accidental deletion with real-time or scheduled folder backups. Reduce local storage use with on-demand sync, only downloading files as needed.Hardware Specifications
CPU
CPU Model
Realtek RTD1619B
CPU Quantity
1
CPU Core
4
CPU Architecture
64-bit
CPU Frequency
1.7 GHz
Hardware Encryption Engine
YesMemory
System Memory
1 GB DDR4 non-ECC
Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.Storage
Drive Bays
1
Compatible Drive Type
3.5" SATA HDD
2.5" SATA SSD (with optional 2.5" Disk Holder)
Hot Swappable Drive
-
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.External Ports
RJ-45 1GbE LAN Port
1
USB 3.2 Gen 1 Port
2
Notes
This devices 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.Others
System Fan
60 mm x 60 mm x 1 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Low-power Mode
Brightness Adjustable Front LED Indicators
Yes
Power Recovery
Yes
Noise Level
19.0 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
36 watts
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
10.69 watts (Access)
3.44 watts (HDD Hibernation)
British Thermal Unit
36.50 BTU/hr (Access)
11.75 BTU/hr (HDD Hibernation)
Notes
For more information on how power consumption is measured, refer to this article.
Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A) Temperature: 24.25-25.75oC Humidity: 58.2-61.8%Temperature
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RHCertification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KCEnvironment
RoHS CompliantPackaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1Optional Accessories
Plus Series 3.5" SATA HDD: HAT3300 SeriesItem Dimension (L"xW"xH")
13 x 9 x 4

Weight
4 lbs

Warranty Information
2 years SpecificationControllersController TypeSerial ATAManagement & ProtocolsProtocols

• SMB 2.0
• SMB DescriptionMaximum Power Supply Wattage36 WPhysical CharacteristicsForm FactorDesktopWeight (Approximate)1.54 ExpansionsNumber of Total Expansion Bays1Number of 2.5"/3.5" Bays1MemoryStandard Memory1 GBMemory TechnologyDDR4 SDRAMGeneral InformationBrand NameSynologyMarketing Information DiskStationDS124 | Smooth data management in a mini form factor Take command of your most important data Secure private cloud Anywhere, anytime secure access to all your data. Data sharing made easy Streamline teamwork and access to shared files. Hassle-free backups Effortlessly protect files using intuitive tools. Productivity in the private cloud DS124 is designed for professionals to share, sync, and work together more efficiently. Anytime, anywhere access Access, manage, and share your files and media from anywhere withSynology Drive. Available on PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser. Intelligent backup and syncing Safeguard against ransomware attacks or accidental deletion with real-time or scheduled folder backups. Reduce local storage use withon-demand sync, only downloading files as needed. Seamless cloud syncing Synchronize files between your DS124 and public cloud services usingSynology Cloud Sync. Retain local backup copies of data stored on Google Drive, Dropbox, Microsoft OneDrive, and more, and ensure data ownership. Sync up with teams, even at the edge Automatically keep data synchronized between Synology systems in different locations with Synology Drive ShareSync to improve cross-site workflows. Store, share, and protect Use your DS124 to manage all your documents, photos, and other files, or protect your physical assets with professional video surveillance. Product TypeSAN/NAS Storage SystemProduct NameDiskStation DS124 SAN/NAS Storage SystemManufacturerSynology, IncManufacturer Part NumberDS124Product ModelDS124Product LineDiskStationPackaged Quantity1TitleProduct TitleSynology DiskStation DS124 SAN/NAS Storage SystemProcessor & ChipsetProcessor CoreQuad-core (4 Core)Processor ManufacturerRealtekProcessor ModelRTD1619BProcessor Speed1.70 GHzStorageNumber of Hard Drives Supported1Number of Hard Drives Installed0Number of Solid State Drive Installed0Number of Solid State Drive Supported1Interfaces/PortsNetwork (RJ-45)YesTotal Number of USB Ports2Number of USB 3.2 Gen 1 Ports3Network & CommunicationEthernet TechnologyGigabit EthernetSoftwareOperating SystemDiskStation Manager Shipping
