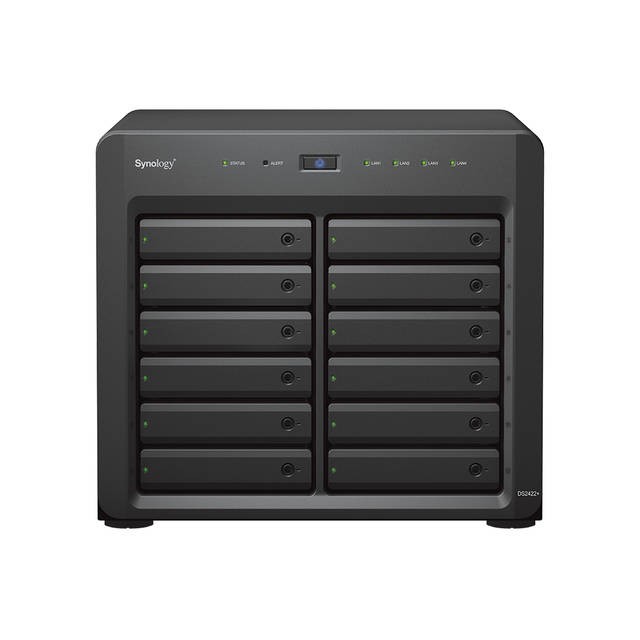

Synology DiskStation DS2422+ SAN/NAS Storage System Synology DiskStation DS2422+ SAN/NAS Storage System

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

DiskStation DS2422+
Flexible large-scale storage for small and medium-sized businesses.
Built for high-performance mass storage
The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.
CPU
AMD Ryzen Quad-core 2.2 GHz
Throughput
2,201/1,383 MB/s sequential read read/write throughput
Expandability
Easily add 10/25GbE and NVMe SSD cache
Scalability
Expand to 24 bays with one DX1222 expansion unit
Faster performance
Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience. See the improvements that help make your business productive.
Rise to the challenge
Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.
Maximize bandwidth
Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards.
Boost storage performance
Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache.
Do both with one card
Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.CPU
CPU Model
AMD Ryzen V1500B
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
4-core 2.2 GHz
Hardware Encryption Engine (AES-NI)
YesMemory
System Memory
4 GB DDR4 ECC SODIMM
Memory Module Pre-installed
4 GB (4 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Notes
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.Storage
Drive Bays
12
Maximum Drive Bays with Expansion Unit
24 (DX1222 x 1)
Compatible Drive Type (See all supported drives)
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Single Volume Size
108 TB
Hot Swappable Drive
Yes
Notes
It is strongly recommended that you only install drives listed on your devices compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
Each internal volume (may consist of multiple drives) is expandable up to 108TB.External Ports
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port
2
Expansion Port
1
Notes
This devices 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.PCIe
PCIe Expansion
1 x Gen3 x8 slot (x4 link)File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
Notes
exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.Others
System Fan
120 mm x 120 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Yes
Power Recovery
Yes
Noise Level
25 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
550 W
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
73.11 W (Access)
32.12 W (HDD Hibernation)
British Thermal Unit
249.63 BTU/hr (Access)
109.67 BTU/hr (HDD Hibernation)
Notes
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A) Temperature: 24.25-25.75oC Humidity: 58.2-61.8%Temperature
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RHCertification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
ULEnvironment
RoHS CompliantPackaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1Optional Accessories
DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
Expansion Units: DX1222
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5200
M.2 SSD and 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
25GbE Network Interface Card: E25G21-F2
10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
VisualStation: VS360HD
Surveillance Device License Pack
NotesAll memory modules will operate at the maximum frequency specified by the CPU manufacturer.Item Dimension (L"xW"xH")
19 x 18 x 17

Weight
42 lbs

Warranty Information
3 Years SpecificationControllersRAID SupportedYesController TypeSerial ATARAID Levels0, 1, 5, 6, 10, Basic, Hybrid RAID, JBODManagement & ProtocolsProtocols

• SMB DescriptionMaximum Power Supply Wattage550 WPhysical CharacteristicsForm FactorDesktopWeight (Approximate)20.94 ExpansionsTotal Number of Expansion Slots1Number of Total Expansion Bays12Number of 2.5"/3.5" Bays12Expansion Slot TypePCI Express 3.0 x8MemoryStandard Memory4 GBMemory TechnologyDDR4 SDRAMGeneral InformationBrand NameSynologyMarketing Information Built for high-performance mass storage The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage. CPU AMD Ryzen™ Quad-core 2.2 GHz Throughput 2,201/1,383 MB/s sequential read read/write throughput Expandability Easily add 10/25GbE and NVMe SSD cache Scalability Expand to 24 bays with one DX1222 expansion unit Rise to the challenge Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both. Maximize bandwidth Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards. Boost storage performance Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache. Do both with one card Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card. Out-of-the-box data protection Active Backup Suite Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware ® and Hyper-V ® virtual machines with the Active Backup Suite. Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration. Learn more Implement a 3-2-1 backup strategy Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions. Product TypeSAN/NAS Storage SystemProduct NameDiskStation DS2422+ SAN/NAS Storage SystemManufacturerSynology, IncManufacturer Part NumberDS2422+Product ModelDS2422+Product Series+Product LineDiskStationPackaged Quantity1TitleProduct TitleSynology DiskStation DS2422+ SAN/NAS Storage SystemProcessor & ChipsetProcessor CoreQuad-core (4 Core)Number of Processors Installed1Processor ModelV1500BProcessor TypeRyzenProcessor Speed2.20 GHzStorageNumber of Hard Drives Supported12Number of Hard Drives Installed0Number of Solid State Drive Installed0Number of Solid State Drive Supported12Interfaces/PortsNetwork (RJ-45)YesTotal Number of USB Ports2Number of USB 3.2 Gen 1 Ports2Number of Network (RJ-45) Ports4Network & CommunicationEthernet TechnologyGigabit EthernetSoftwareOperating SystemDiskStation Manager Shipping
