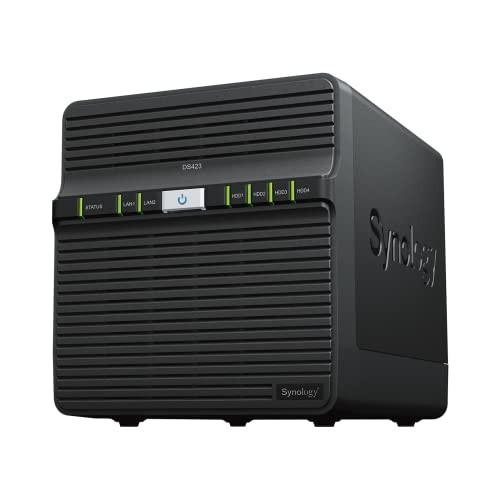

Synology DiskStation DS423 SAN/NAS Storage System Synology DiskStation DS423 SAN/NAS Storage System

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

DiskStation DS423
Versatile data management platform for work and more
Simplify your data management
Secure cloud storage
Flexibly store up to 72 TB of data with 100% ownership and enjoy multi-platform access from anywhere.
Data sharing made easy
Safely share files and media over your private cloud for easier collaboration and better productivity.
Versatile video surveillance
Leverage intuitive surveillance tools to protect your premises and store footage from up to 30 IP cameras.
Create a private cloud hub for your data
Import and sync data scattered across PCs, Macs, phones, and external storage devices to implement well-organized file management for your business.
Multi-device access
Browse, access, edit, and share files securely and conveniently via desktop, mobile, or web browser platforms. Use intuitive admin tools to track and set file permissions and control access to documents, files, and other data.
On-demand sync
Save space on your personal devices by only synchronizing the files you need from your Synology system. Pin frequently accessed files for convenient offline accessibility.CPU
CPU Model
Realtek RTD1619B
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
4-core 1.7 GHz
Hardware Encryption Engine
YesMemory
System Memory
2 GB DDR4 non-ECC
Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.Storage
Drive Bays
4
Compatible Drive Type
3.5" SATA HDD
2.5" SATA SSD
Hot Swappable Drive
Yes
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.External Ports
RJ-45 1GbE LAN Port
2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port
2
Notes
This devices 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFATOthers
System Fan
80 mm x 80 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Brightness Adjustable Front LED Indicators
Yes
Power Recovery
Yes
Noise Level
20.6 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
90 W
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
32.41 W (Access)
4.97 W (HDD Hibernation)
British Thermal Unit
110.52 BTU/hr (Access)
16.95 BTU/hr (HDD Hibernation)
Notes
For more information on how power consumption is measured, refer to this article.
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A) Temperature: 24.25-25.75C Humidity: 58.2-61.8%Temperature
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RHCertification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KCEnvironment
RoHS CompliantPackaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1Optional Accessories
3.5" SATA HDD: HAT5300/HAT3300
2.5" SATA SSD: SAT5210
Surveillance Device License PackItem Dimension (L"xW"xH")
12 x 10 x 10

Weight
9 lbs

Warranty Information
2 years SpecificationControllersRAID SupportedYesController TypeSerial ATARAID Levels0, 1, 5, 6, 10, Basic, Hybrid RAID, JBODManagement & ProtocolsProtocols
