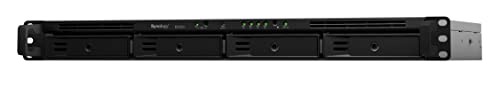

Synology RackStation RS422+ SAN/NAS Storage System Synology RackStation RS422+ SAN/NAS Storage System

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

Streamline your data management

With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs.


Space-saving design for flexible deployment

Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment.


Flexible networking options

Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules.


Built-in connectivity

Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box.


Easy upgrade to 10GbE

Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking.


All-in-one data management platform

The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance. CPU
CPU Model
AMD Ryzen R1600
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
2-core 2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Y Memory
System Memory
2 GB DDR4 ECC
Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Storage
Drive Bays
4
Compatible Drive Type (See all supported drives: />3.5" SATA HDD
2.5" SATA SSD
Hot Swappable Drive
Y
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. External Ports
RJ-45 1GbE LAN Port
2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port
1
Notes
This devices 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. PCIe
PCIe Expansion
1 x Gen3 x2 network upgrade slot File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT Appearance
Form Factor (RU)
1U
Rack Installation Support
4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
2-post 19" rack (direct mounting)
Notes
The rail kit is sold separately Others
System Fan
40 mm x 40 mm x 3 pcs Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode Power Recovery
Y Noise Level
28.5 dB(A) Scheduled Power On / Off
Y Wake on LAN / WAN
Y Power Supply Unit / Adapter
100 W AC Input Power Voltage
100V to 240V AC Power Frequency
50/60 Hz, Single Phase Power Consumption
37.93 W (Access)
13.43 W (HDD Hibernation) British Thermal Unit
129.42 BTU/hr (Access)
45.83 BTU/hr (HDD Hibernation) Notes
For more information on how power consumption is measured, refer to this article.( Temperature
Operating Temperature
0oC to 35oC (32oF to 95oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RH SpecificationControllersRAID SupportedYesController TypeSerial ATARAID Levels0, 1, 5, 6, 10, Basic, Hybrid RAID, JBODManagement & ProtocolsProtocols

• SMB DescriptionMaximum Power Supply Wattage100 WNumber of Power Supplies Installed1Physical CharacteristicsForm FactorRack-mountableWeight (Approximate)9.66 Height1UI/O ExpansionsTotal Number of Expansion Slots1Number of Total Expansion Bays4Number of 2.5"/3.5" Bays4Expansion Slot TypePCI ExpressMemoryStandard Memory2 GBMemory TechnologyDDR4 SDRAMGeneral InformationBrand NameSynologyMarketing Information RackStation RS422+ Compact and versatile storage for home and office Streamline your data management With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs. Performance 601/516 MB/s sequential read/write throughput Form Factor Depth of just 327.5 mm with handles Connectivity Built-in dual 1GbE ports with easy 10GbE option File Integrity ECC memory prevents data corruption Space-saving design for flexible deployment Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment. Flexible networking options Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules. Built-in connectivity Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box. Easy upgrade to 10GbE Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking. All-in-one data management platform The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance. Edge storage for distributed teams Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations. Enable effective collaboration with Synology Drive Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications. Multi-platform support Access personal and shared data from mobile app, desktop client, web browser, or another Synology system: Any changes you make are automatically synced to other devices as soon as they are connected. Collaborate in real time Integrate with Synology Office to enable concurrent editing on documents, spreadsheets, and slides, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files. Multi-endpoint data protection Design an effective backup strategy to maximize system availability with a host of native and license-free solutions. Product TypeSAN/NAS Storage SystemProduct NameRackStation RS422+ SAN/NAS Storage SystemManufacturerSynology, IncManufacturer Part NumberRS422+Product ModelRS422+Product LineRackStationPackaged Quantity1TitleProduct TitleSynology RackStation RS422+ SAN/NAS Storage SystemProcessor & ChipsetProcessor CoreDual-core (2 Core)Number of Processors Installed1Processor ModelR1600Processor TypeRyzenProcessor Speed2.60 GHzStorageNumber of Hard Drives Supported4Number of Hard Drives Installed0Number of Solid State Drive Installed0Number of Solid State Drive Supported4Interfaces/PortsNetwork (RJ-45)YesTotal Number of USB Ports1Number of USB 3.2 Gen 1 Ports1Number of Network (RJ-45) Ports2Drive InterfaceSerial ATANetwork & CommunicationEthernet TechnologyGigabit EthernetSoftwareOperating SystemDiskStation Manager Shipping
