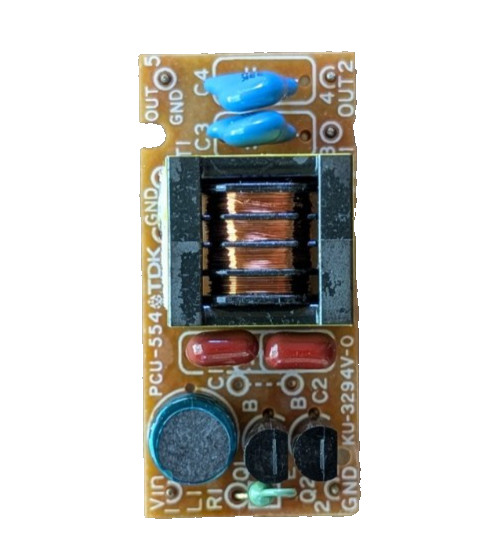

TDK PCU-554 KU-3294V-0 LCD CCFL Backlight Inverter Power Supply Board
New and unused TDK PCU-554 inverter board designed to provide high-voltage AC power for compatible LCD cold-cathode fluorescent lamp (CCFL) backlighting systems. This compact open-frame module features a nominal 5V DC input and dual high-voltage outputs.
Specifications:
Brand: TDKMPN/Model: PCU-554PCB Number: KU-3294V-0Type: DC-to-AC LCD CCFL backlight inverterInput Voltage: 4.75–5.25V DCOutput Voltage: Approximately 900V ACMaximum Power: 4.5WNumber of Outputs: 2Dimensions: Approximately 1.73 × 0.83 × 0.51 inchesMounting Style: Through-hole/open-frame moduleCooling: Passive
Condition:
New and unused. The board has never been installed or placed into service. It may show minor cosmetic wear from long-term storage and handling. No retail packaging, cables, connectors, or additional accessories are included.
Please compare the PCU-554 and KU-3294V-0 markings, electrical specifications, dimensions, terminal arrangement, and photos with your existing board before purchasing. Compatibility is the buyer’s responsibility.
