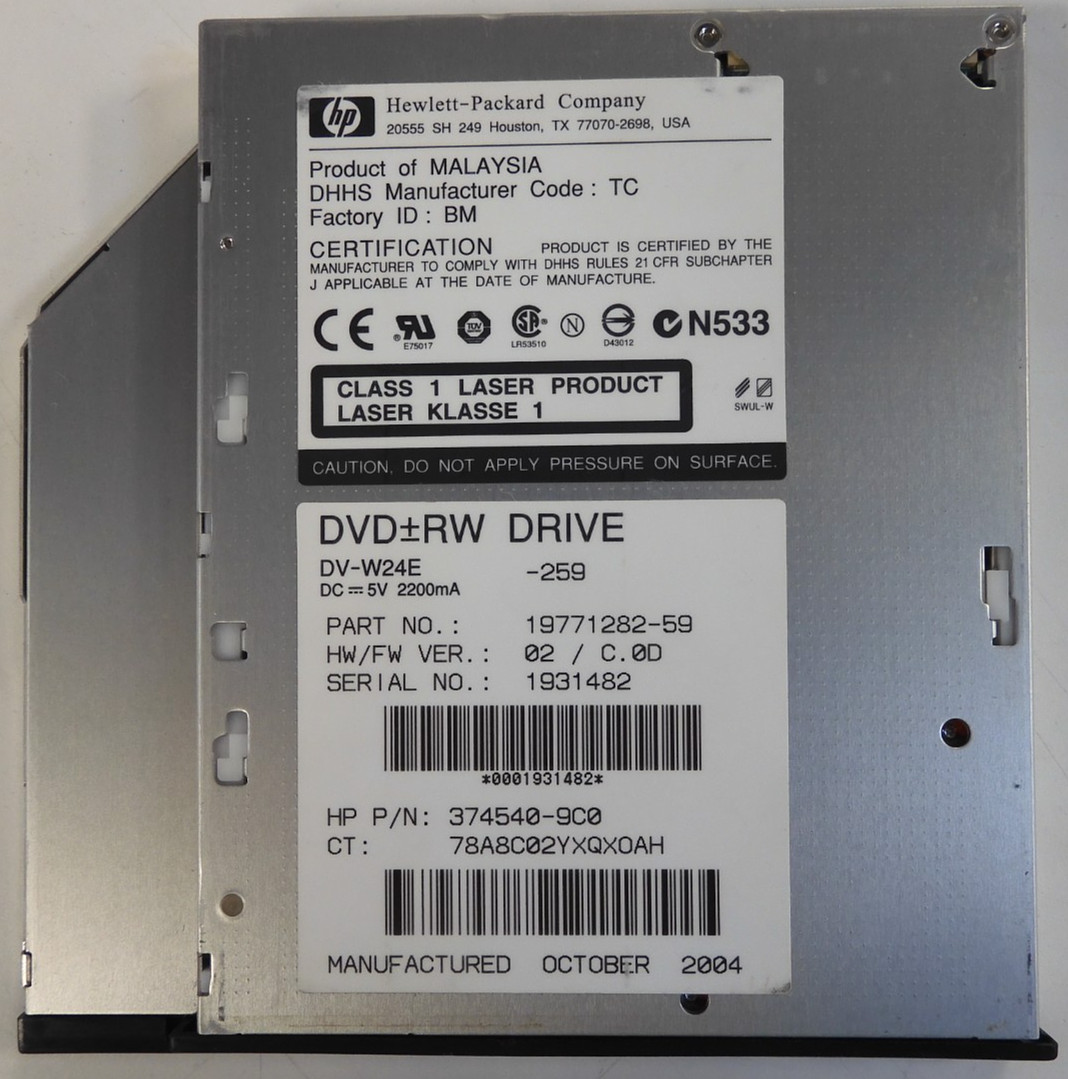

TEAC DV-W24E-259 4X Slim IDE DVD±R/RW Drive – 19771282-59 – HP 374540-9C0 – Replaces 375981-001
Product Overview

This listing is for a TEAC 4X Slim IDE DVD±R/RW Optical Drive, model DV-W24E-259, part number 19771282-59.It is an internal slimline optical drive commonly used in HP laptops and small-form-factor systems.Compatible with HP systems requiring HP P/N 374540-9C0 and HP Spare 375981-001.

Key Features

• Brand: TEAC

• Model: DV-W24E / DV-W24E-259

• Drive Type: Slim Internal DVD±R/RW Optical Drive

• Interface: IDE / ATAPI

• Write Speeds:

  • DVD±R: Up to 4X

  • DVD±RW: Up to 4X

• Read Speeds: Standard DVD/CD read speeds

• Form Factor: Slimline (for notebooks and compact systems)

• Supported Media: DVD±R, DVD±RW, CD-R, CD-RW

• Color: Silver or Black bezel depending on batch (see photos)

• HP Compatibility:

  • HP P/N: 374540-9C0

  • HP Spare: 375981-001

  • Replacement for systems originally shipped with these part role="list">

  • Used / Tested / Working

  • Pulled from a functioning system

  • May show minor cosmetic wear from normal use

  • Fully inspected for proper read/write operation

  Package Includes

  • TEAC DV-W24E-259 Slim IDE DVD±R/RW Drive (no additional accessories)

  Compatibility Notes

  This drive is compatible with many HP laptops and small-form-factor PCs that use IDE slim optical drives.Please verify your system’s interface and mounting requirements before purchase.

  Why Buy This Drive?

  • Reliable TEAC build quality

  • Ideal replacement for aging HP notebook optical drives

  • Perfect for restoring legacy systems, reading/writing discs, or reinstalling OS software

  • Hard-to-find IDE slimline format

  Shipping & Handling

  • Fast shipping

  • Professionally packed for safe delivery

  Returns

  • Hassle-free returns if the item is not as described

  📌 Suggested Item / DV-W24ECompatible BrandHPCompatible ModelSystems using HP P/N 374540-9C0 / Spare 375981-001InterfaceIDE / ATAPITypeDVD±R/RW Optical DriveWrite Speed4XForm FactorSlimline

  Model: DV-W24E-259TEAC Part No.: 19771282-59HP Part No.: 374540-9C0HP Spare: 375981-001Drive Type: Slim Internal DVD±R/RW Optical DriveInterface: IDE / ATAPI (50‑pin slimline)

  1. General Description

  The TEAC DV-W24E-259 is a slimline internal DVD±R/RW optical drive designed for notebook computers and compact HP systems. It supports reading and writing of multiple CD and DVD formats and uses the standard 12.7mm slim IDE/ATAPI interface.

  2. Physical SpecificationsSpecificationValueForm FactorSlimline Optical (12.7mm height)Dimensions (W × H × D)~128 × 12.7 × 129 mm (standard slimline optical dimensions; inferred)Weight~140–160g (typical for TEAC slim drives; inferred)Front BezelSlimline, black or silver (varies by OEM batch)Eject MechanismMotorized tray loadEmergency EjectYes (pinhole)3. Interface & ConnectivityFeatureDetailsInterface TypeIDE / ATAPIConnector50‑pin slimline IDEMaster/Slave SettingCable‑select (OEM‑configured)Power Requirements+5V DC4. Supported Media FormatsDVD to 4XDVD-RWYesUp to 2XDVD+RYesUp to 4XDVD+RWYesUp to 4XDVD-RAMYesUp to 2X (supported on DV-W24E family drives)CD to 16XCD-RWYesUp to 8XAudio CDYesNoVideo CDYesNo5. Performance SpecificationsWrite Speeds

  • DVD-R: 4X

  • DVD-RW: 2X

  • DVD+R: 4X

  • DVD+RW: 4X

  • DVD-RAM: 2X

  • CD-R: 16X

  • CD-RW: 8X

  Read Speeds

  • DVD-ROM: Up to 8X

  • CD-ROM: Up to 24X

  (Read speeds inferred from TEAC DV-W24E family documentation.)

  6. Buffer & Data HandlingFeatureValueBuffer Size2MB (standard for TEAC slim DVD±RW drives)Data Transfer RateUp to 16.6 MB/s (PIO Mode 4 / UDMA Mode 2)Error CorrectionCIRC (CD), RSPC (DVD)Supported ModesPIO, DMA, UDMA7. Environmental SpecificationsConditionRangeOperating Temperature5°C – 45°CStorage Temperature-20°C – 60°CHumidity (Operating)10% – 80% (non‑condensing)

  (Standard TEAC environmental ratings.)

  8. HP System Compatibility

  This drive is used in HP notebooks and small‑form‑factor PCs requiring:

  • HP P/N: 374540-9C0

  • HP Spare: 375981-001

  Compatible with many HP Pavilion, Compaq Presario, and business‑class models using IDE slim optical drives.

  9. OEM Notes

  • Drive may ship with different bezel styles depending on HP/TEAC OEM batch.

  • Firmware versions vary by HP system model.

  • Fully compatible with Windows, Linux, and legacy OS installers that support ATAPI optical drives.

  10. Package Contents

  • TEAC DV-W24E-259 Slim IDE DVD±R/RW Drive

  • No additional accessories included (OEM bare drive)

  11. Summary

  The TEAC DV-W24E-259 is a reliable, legacy slim IDE DVD±RW drive ideal for restoring older HP laptops, reinstalling operating systems, or maintaining compatibility with disc‑based media. Its support for DVD+RW, DVD-RW, CD-RW, and DVD-RAM makes it one of the more versatile slim IDE drives of its generation.
