TESmart Stable HDMI KVM Extender Multipoint to Multipoint 1080P 60Hz Over Single

• Transmission 395ft(120m): Extend keyboard, mouse and HDMI signals to the remote monitor with a CAT5e/6/6a/7 Ethernet cable; support up to 390 ft (120 meters)
• 1080P@60Hz HDMI Video: Provide you a smooth, stable and high quality video experience; Supports 480i/480p/720p/1080i/1080p@60Hz; compatible with HDMI 1.3
• Point/Muiltipoint to Point/Muiltipoint Connection: Support point-to-point, point-to-multipoint, multipoint-to-point, and multipoint-tomultipoint over router or network switch, covering banking,securities,engineering and home theater multiple control purpose
• Metal construction and Flexible Installation: The metal construction makes the unit more solid, durable and keeps better heat dissipation;there are keyhloes on the unit, you can also choose the flexible installation anywhere you want
• Wide Compatibility: This HDMI KVM Extender supports various operation systems,compatible with Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux basic systems

Extend keyboard, mouse and HDMI signals to the remote monitor with a CAT5e/6/6a/7 Ethernet cable; support up to 390 ft (Transmitter Only).

Overview:

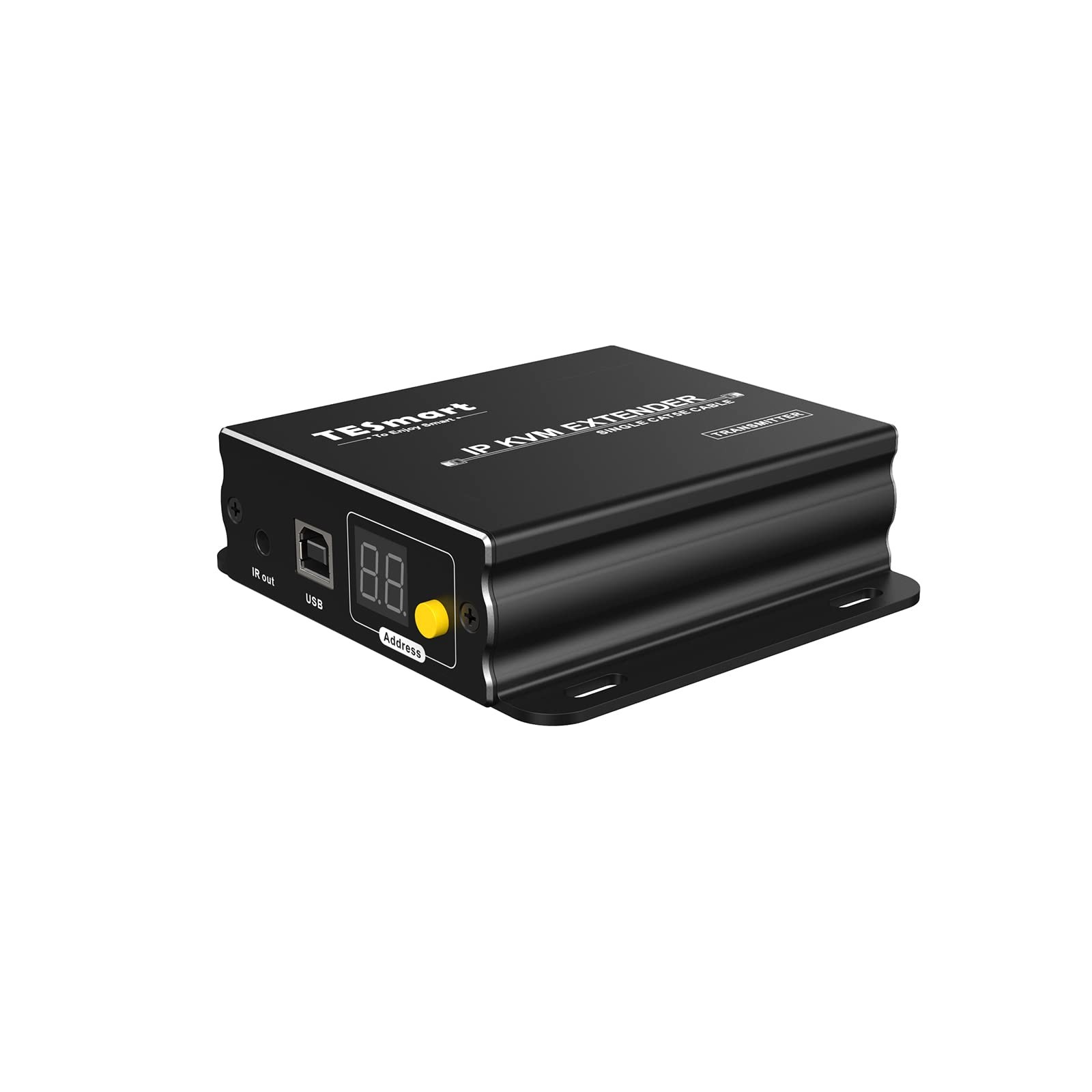

TESmart HDMI KVM Extender can extend up to 120 meters for 1920x1080@60Hz. Support IR pass through. When you need to control remotely, you can use the remote control provided with the input source to remotely control the input source through infrared. The router or switch is accessed over a standard TCP/IP network via Cat 5e/6 cable that allows point-to-point, point-to-multipoint, multipoint-to-point, and multipoint-to-multipoint :

1.Use single UTP/FTP cable (CAT5e/6/7 , should follow EIA/TIA 568B standard) to substitute HDMI cable to extend longer transmission distance.

2.Support 1920x1080@60Hz resolution transmission via UTP/FTP cable up to 120 meters.

3.With IR pass though, the playback device can be remotely controlled at the receiving end via UTP/FTP cable.

4.It's easy to control PC remotely by transmitting keyboard and mouse data via UTP/FTP cable.

5.Support point-to-point, point-to-multipoint, multipoint-to-point, and multipoint-to multipoint administration.

6.It's available to send data from up to 16 transmitters to 253 receivers via router or network switch.

Package Contents:

1 X TESmart HDMI KVM Extender Transmitter

1 X IR Transmitter Cable

1 X DC 5V Power Adapter

1 X User Manual

Note:

1) In order to make these units work, all the units need power supply not only the network cable.

2) This only includes the transmitter, it needs to be used with the receiver, if you need a set of transmitter and receiver, please buy our Transmitter + Receiver option.

3)The remote control only works with the receiver, so the transmitter does not include a remote.
