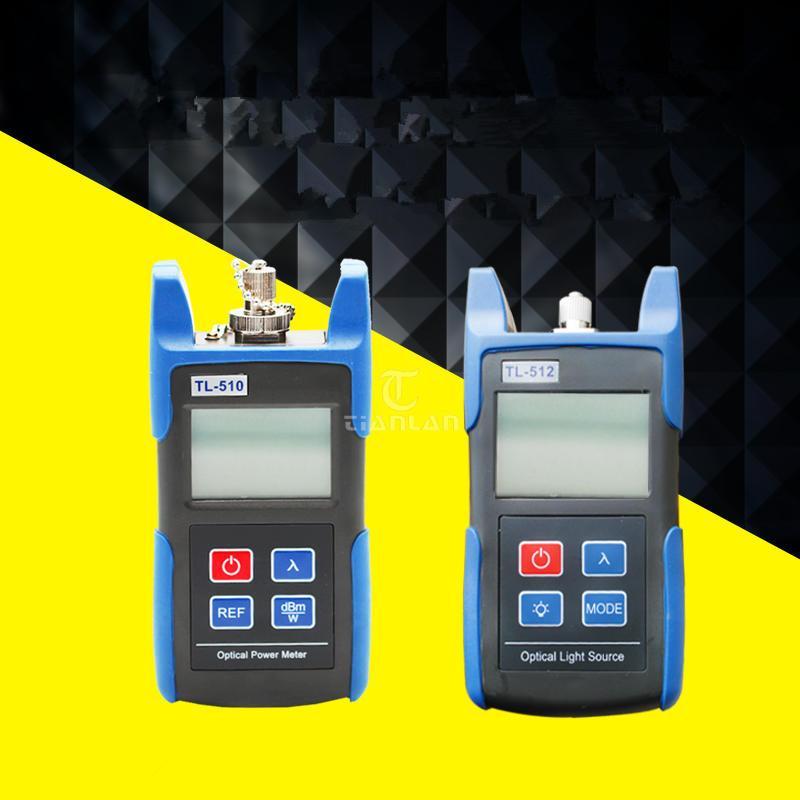

Store Categories Store Categories TL512 Fiber Optical Light Source & TL510A Optical Power Meter -70 ~+10dBm
Product Description
Package include: 1x TL510A -70 ~+10dBm Fiber Optical Power Meter (without battery) 1x TL512 Optical Light Source(without battery) Features: - User self calibration function - Comfortable LCD display and optional backlight - LCD display supports night operation - Power measurements in dBm or mw and insertion loss in dB - Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries - Optional 10 minutes Auto-off function Applications: - Maintenance in Telecom - Maintenance CATV - Test Lab of optical fibers -Other Fiber Optic Measurements
Optical Light Sour ce Series of high stability of the laser light source is a self-developed test instrument. Which features advanced control technology, high output, ultra low-power operatin. It can work at 1310nm / 1550nm. It can export a variety of modulation frequency (CW, 270HZ, 1KHZ, 2KHZ). It is widely used in optical communication, optical measurement, optical fiber sensing and so on . Feature Single to -tri-wavelength combination Continuous and modulated signal Real-time display of battery level and lower power indication Back light function Auto off function Alkaline battery
Optical Light Source
wavelength
1310nm / 1550nm
output power
> -7dBm
Type of laser
LD
Spectral width
5nm
Connector type
FC/SC
Fiber type
SM MM
Audio carrier
0Hz, 270Hz, 1KHz, 2KHz
Battery type
AAA
working time
>30hours
Storage temperature
-20---+70
working temperature
-10---+60
Working altitude
2500m
Weight（g）
160
Size（mm）
130mm* 63mm * 29mm
