HARDWARE FEATURES
InterfacePCI ExpressDimensions (W x D x H)4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm)Antenna2 Detachable External Antennas
Bluetooth Features
Standards and ProtocolsBluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0InterfaceF_USB 2.0
WIRELESS FEATURES
Wireless StandardsIEEE 802.11ac/n/a 5 GHz,
IEEE 802.11n/g/b 2.4 GHzSignal Rate5 GHz
11ac: Up to 867 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: Up to 54 Mbps (dynamic)
2.4 GHz
11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)Reception Sensitivity5 GHz:
11ac HT80 MCS9 -65 dBm
11ac HT80 MCS0 -90 dBm
11ac HT20 MCS8 -74 dBm
11ac HT20 MCS0 -95 dBm
2.4 GHz:
11n HT40 MCS7 -72 dBm
11n HT40 MCS0 -92 dBm
11n HT20 MCS7 -76 dBm
11n HT20 MCS0 -94 dBmWireless ModesInfrastructure modeWireless SecurityWEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSKModulation TechnologyDBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAMTransmission Power5 GHz: 28 dBm (FCC) / 23 dBm (CE) (EIRP),
2.4 GHz: 24 dBm (FCC) / 20 dBm (CE) (EIRP)
OTHERS

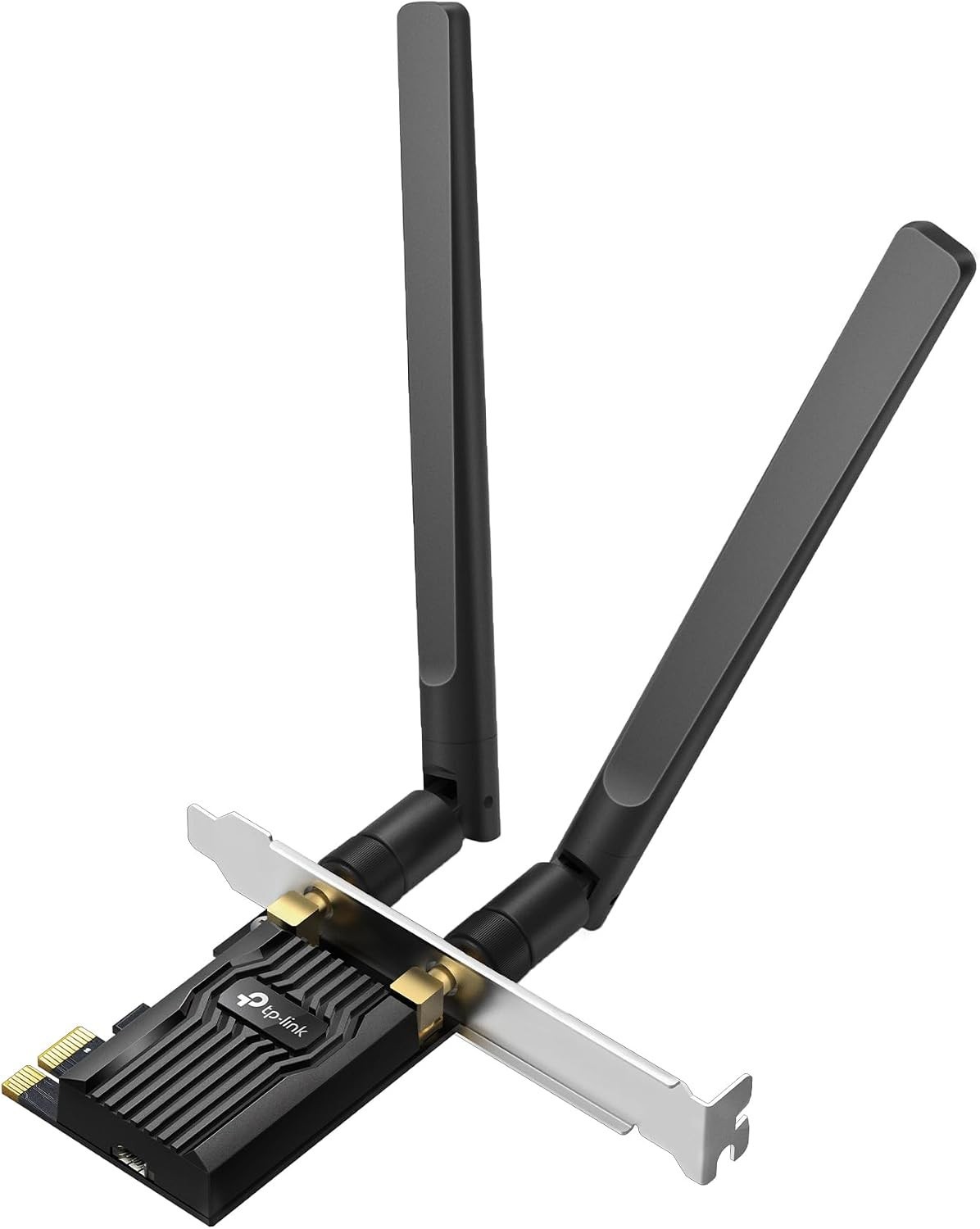

CertificationFCC, CE, RoHSPackage ContentAC1200 Wi-Fi Bluetooth PCIe Adapter Archer T5E
Two High Gain Dual-Band Antennas
Low-Profile Brackets
Bluetooth Header Cable
Quick Installation Guide
Resource CDSystem RequirementsWindows 10/11EnvironmentOperating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensingPayment
