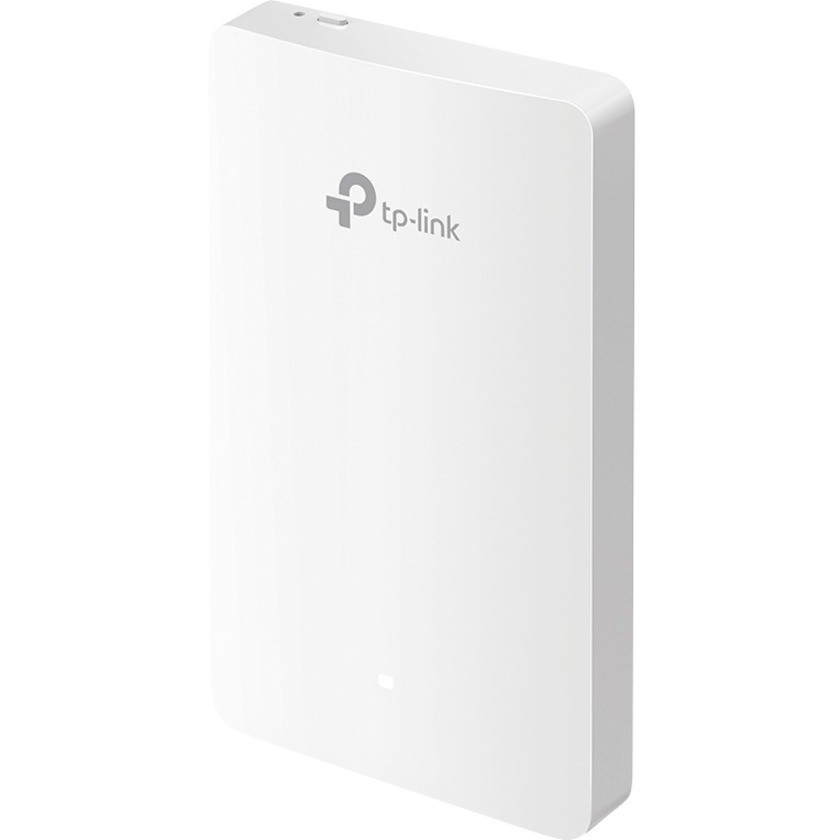

TP-Link Omada EAP615-Wall Dual Band 802.11ax 1.76 Gbit/s Wireless Access Point - Outdoor TP-Link Omada EAP615-Wall Dual Band 802.11ax 1.76 Gbit/s Wireless Access Point - Outdoor

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: Omada EAP615-Wall Wireless Access Point Installation Guide Mounting Kits

Additional Information: Legal Disclaimer: Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

EAP615-Wall
AX1800 Wall Plate WiFi 6 Access Point
Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Performance Connectivity: Guarantee higher network efficiency and lower latency.
Four Gigabit Ports: 4 Gigabit Ethernet ports (1x uplink + 3x downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
Centralized Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm EU US standard junction box, and 802.3af/at PoE support.
New Experience of Room Coverage with WiFi 6
Omada
Wi-Fi 6
Superior WiFi 6 Speeds
Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps.
High-Performance Connectivity for Better User Experience
The latest WiFi 6 features and advanced wireless techniques guaranteee higher network efficiency and lower latency.HARDWARE FEATURES
Interface
Uplink: 1x 10/100/1000 Mbps Ethernet Port
Downlink: 3x 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock
Yes
Button
Reset
Power Supply
802.3af/at PoE
Power Consumption
EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)
Antenna
2 Dual-Band Antennas
2.4 GHz: 2x 3 dBi
5 GHz: 2x 4 dBi
Mounting
Wall Plate MountingWIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
MU-MIMO
Rate Limit
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
Less than 20 dBm (2.4 GHz, EIRP)
Less than 23 dBm (5 GHz, EIRP)
FCC:
Less than 21 dBm (2.4 GHz)
Less than 21 dBm (5 GHz)MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
YesOTHERS
Certification
CE, FCC, RoHS
Package Contents
AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
Installation Guide
Mounting Kits
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
Operating Temperature: 040 oC (32104 oF)
Storage Temperature: -40-70 oC (-40-158 oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensingItem Dimension (L"xW"xH")
8 x 5 x 2

Weight
1 lb

Warranty Information
Limited Lifetime WarrantyPackage Contents:

• Omada EAP615-Wall Wireless Access Point
• Installation Guide
• Mounting Kits

SpecificationPower DescriptionPower Consumption10 WPhysical CharacteristicsForm Factor

• Wall Mountable
• Wall Form Warranty5 YearInterfaces/PortsEthernet TechnologyGigabit EthernetPoE (RJ-45) PortYesNumber of Network (RJ-45) Ports4PoE PD PortYesGeneral InformationBrand NameOmadaMarketing Information Software Defined Networking (SDN) with Cloud Access Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network--all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Hassle-Free Centralized Cloud Management 100% centralized cloud management of the whole network from different sites--all controlled from a single interface anywhere, anytime. Zero-Touch Provisioning for Efficient Deplyment 100% centralized cloud management of the whole network from different sites--all controlled from a single interface anywhere, anytime. Omada zero-touch provisioning allows remotely deployment and configuration of multi-site networks, so there's no need to send out an engineer for on-site configuration. The Omada Cloud ensures efficient deployment with lower costs. AI-Driven Technology for Stronger Performance and Easy Network Maintenance | Assign Different Management Roles Multi-user privilege assignment is available to increase management efficiency and security. Multi-person management, multi-level permissions, and the ability to add admins as needed, enable flexible network operation and maintenance. Easy and Intelligent Network Monitoring Comprehensive Protection for the Whole Network The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IP admins quickly see and troubleshoot connection at a glance. Comprehensive Protection for the Whole Network | Multiple Factors Guarantee Higher Reliability Reliable Connections Even with High-Density Clients Higher reliability of cloud service is guaranteed with 99.99% SLA availability, 24/7 automated fault detection, geographically isolated backup servers, and reliable product quality. Your network functions even if management traffic is interrupted. Reliable Connections Even with High-Density Clients Higher reliability of cloud service is guaranteed with 99.99% SLA availability, 24/7 automated fault detection, geographically isolated backup servers, and reliable product quality. Your network functions even if management traffic is interrupted. Equipped with enterprise chipsets, dedicated antennas, advanced RF functions, auto channel selection, and power adjustment, Omada Wi-Fi 6 and Wi-Fi 5 APs have high concurrency capacities for remarkable performance in high-density environments.Product TypeWireless Access PointProduct NameEAP615-Wall Wireless Access PointManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberEAP615-WallProduct ModelEAP615-WallProduct SeriesEAPTitleProduct TitleTP-Link Omada EAP615-Wall - Omada Business WiFi 6 AX1800 in-Wall Wireless Gigabit Access Point (EAP615WALL)Technical InformationWireless LAN Standard802.11axNumber of Internal Antennas4Network BandDual BandWireless Transmission Speed1.76 Gbit/sTotal Number of Antennas4MIMO TechnologyYesData EncryptionYesFrequency Band
  • 2.40 GHz
  • 5 TechnologyYesEncryption Standard
