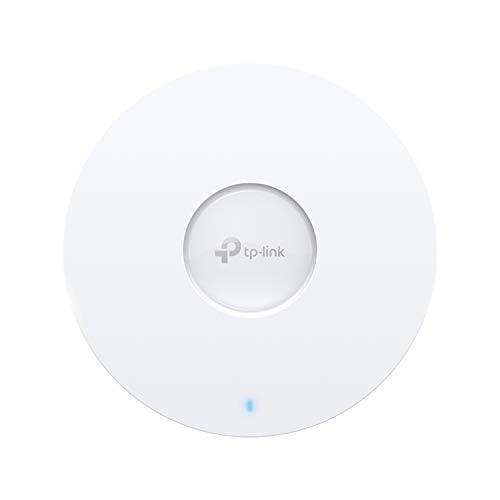

TP-Link EAP620 HD_V3 - AX1800 Ceiling Mount WiFi 6 Access Point TP-Link EAP620 HD_V3 - AX1800 Ceiling Mount WiFi 6 Access Point
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: AX1800 Ceiling Mount WiFi 6 Access Point Power Adapter Ceiling/ Wall Mounting Kits Installation Guide
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
AX1800 Ceiling Mount WiFi 6 Access Point
Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Density Connectivity: 4x increased capacity to connect more devices simultaneously.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Ultra-Slim Design: ?6.3 in. x 1.3 in. elegant design brings more agility.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
Button
Reset
Power Supply
802.3at PoE
48 V Passive PoE
12 V / 1.5 A DC
Power Consumption
EU: 14.4 W (For PoE) 13.1 W (for DC)
US: 14.9 W (For PoE) 13.4 W (for DC)
Antenna Type
Internal Omni Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box MountingWIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
Less than 20 dBm(2.4 GHz, EIRP)
Less than 23 dBm(5 GHz band1/2, EIRP)
