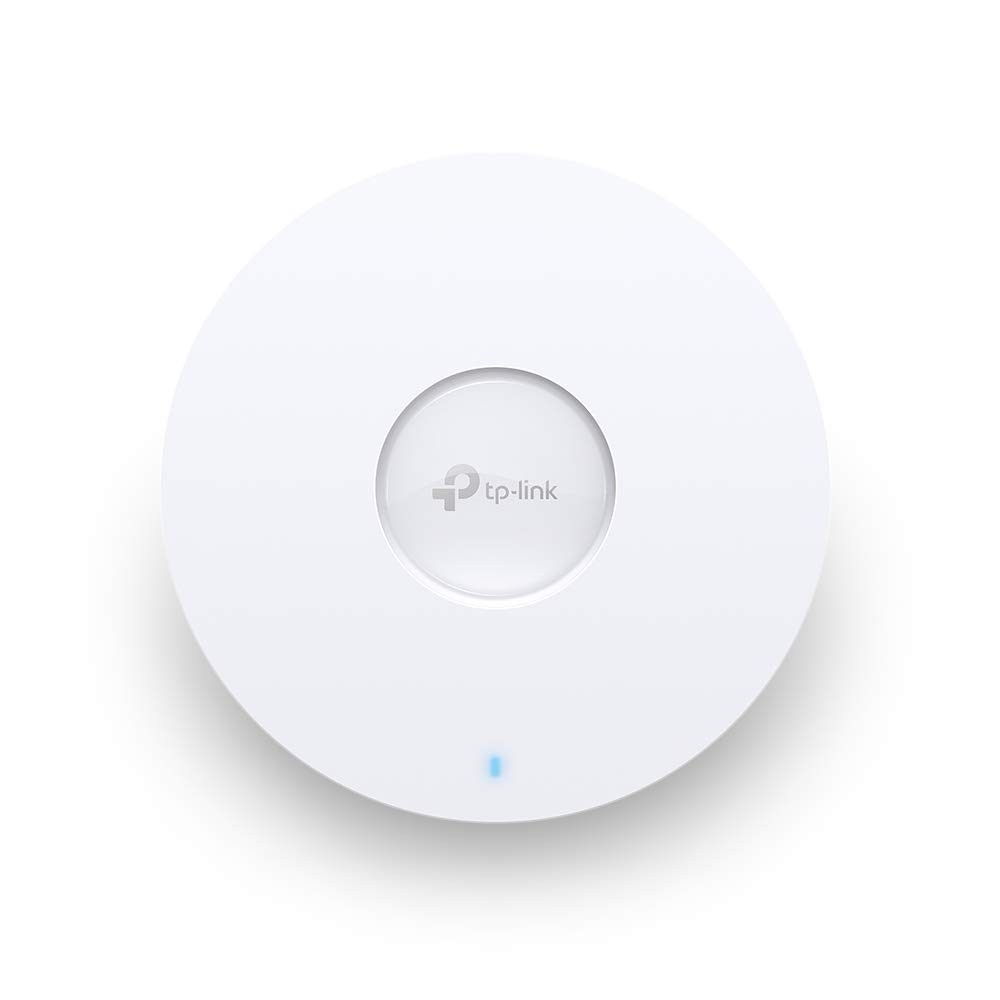

TP-Link EAP660 HD - Omada WiFi 6 AX3600 Wireless 2.5G Access Point for High-Density Deployment (250003) TP-Link EAP660 HD - Omada WiFi 6 AX3600 Wireless 2.5G Access Point for High-Density Deployment (250003)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point Power Adapter Ceiling/Wall Mounting Kits Installation Guide

Additional Information: Legal Disclaimer: Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.

High-Density Connectivity: 4 increased capacity to connect more devices simultaneously.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

High-Density Connectivity with 4 Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4 versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Blazing Fast Speed with 8 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications. HARDWARE FEATURES
Interface
1x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE or 12 V DC
Power Consumption
21.5 W
Antenna Type
Internal Omni
2.4 GHz: 4x 4 dBi
5 GHz: 4x 5 dBi
Mounting
Ceiling or wall mount
(kits included) WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 1148 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
is less than 26 dBm (2.4 GHz)
is less than 26 dBm (5 GHz) MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP660 HD
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
Environment
Operating Temperature: 0-40 oC (32-104 oF)
Storage Temperature: -40-70 oC (-40-158 oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing Item Dimension (L"x W"x H")
12 x 12 x 4
Weight
5.00 LB
Warranty Information
Limited LifetimePackage Contents:

• AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

SpecificationPower DescriptionPower Consumption21.50 WPhysical CharacteristicsForm Factor

• Ceiling Mountable
• Wall Mountable

Weight (Approximate)2.89 lbProduct ColorWhiteHeight2.5"Color FamilyWhiteWidth9.6"Antenna Form Warranty5 YearInterfaces/PortsEthernet Technology2.5 Gigabit EthernetNumber of Network (RJ-45) Ports1PoE PD PortYesGeneral InformationBrand NameTP-LinkMarketing Information High-Density Connectivity with 4? Increased Capacity OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4? versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before. Hospitality High Quality and Full Coverage Wi-Fi Restaurant Full Wi-Fi Coveragein High-Density Environment Shopping Mall Social Marketing for O2O Meeting Room Wireless and Wired Connections for dense usage Railway Station High-Density Wi-F Blazing Fast Speed with 8 Spatial Streams The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications. Omada SDN-Smarter Cloud Solution for Business Networking Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. Hassle-Free Centralized Cloud Management: 100% centralized cloud management of whole network from different sites-all controlled from a single interface anywhere, anytime. Optimized Wired Performance with 2.5 GE PoE+ Port Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment. Seamless Roaming 802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.This allows sensitive applications like VoIP and video conferences to go uninterrupted. Boost Network Efficiency in All Aspects With Rich Advanced Features Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections. Load Balance ensures large numbers of users have smooth network experiences in high-density business networks Airtime Fairness Increases average network throughput in heavily congested environments Easy to Mount with Refined Industrial Design push up simply rotate to lock Secure Guest Network with Facebook Wi-Fi and SMS Login Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business. More from the Manufacturer Product ConditionNewProduct TypeWireless Access PointProduct NameAX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access PointManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberEAP660 HDProduct ModelEAP660 HDTitleProduct TitleTP-Link EAP660 HD - Omada WiFi 6 AX3600 Wireless 2.5G Access Point for High-Density Deployment - Limited Lifetime WarrantyTechnical InformationWireless LAN Standard802.11axNetwork BandDual BandWireless Transmission Speed3.52 Gbit/sMIMO TechnologyYesData EncryptionYesFrequency Band

• 2.40 GHz
• 5 TechnologyYesEncryption Standard
