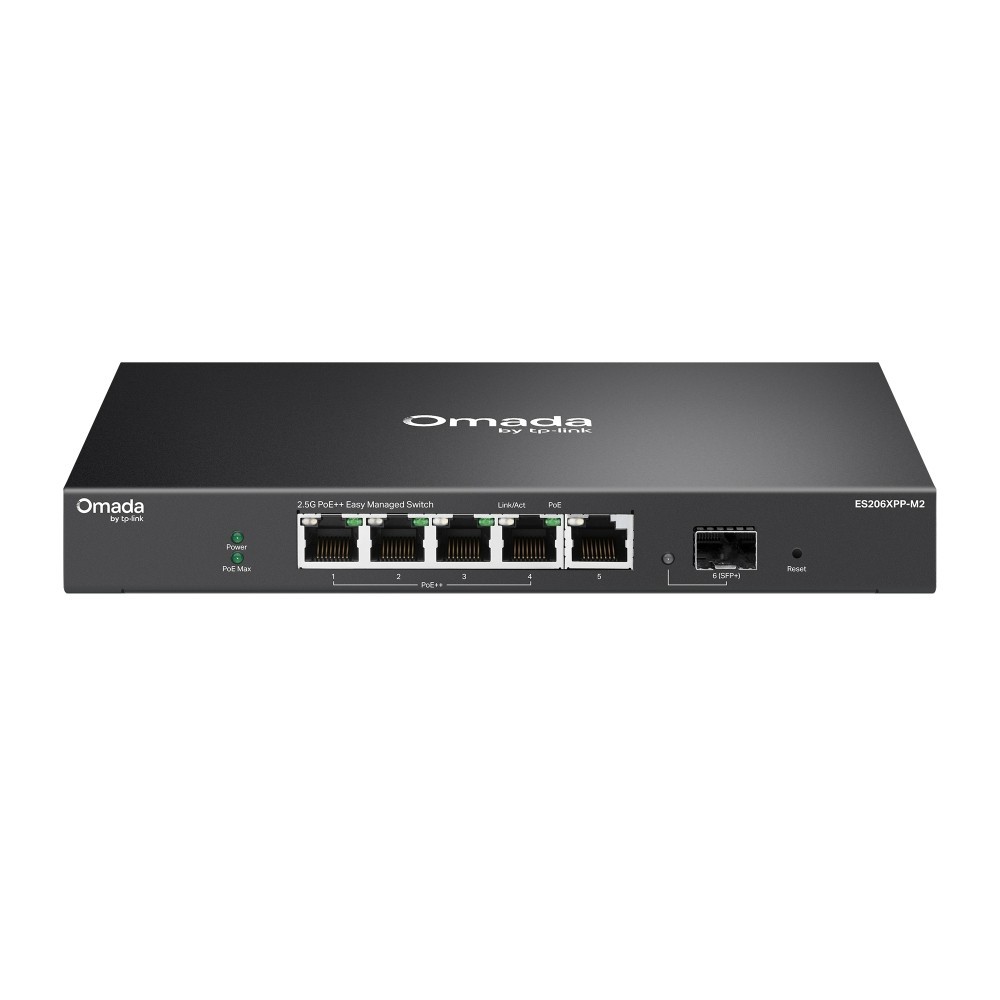

TP-Link ES206XPP-M2 | Omada 5-Port 2.5GBase-T Easy Managed Switch | 4-Port PoE++
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
TP-Link ES206XPP-M2 | Omada 5-Port 2.5GBase-T Easy Managed Switch | 4-Port PoE++
Price: US $199.99

Features:

  • 5× 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
  • 1× 10 Gbps SFP+ slot
  • 120W PoE budget, with up to 90W for each PoE port*
  • Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Automatic Loop Prevention, VLAN, Port Isolation, QoS△, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

• 1× 10 Gbps SFP+ Slot
• Auto-Negotiation/Auto MDI/MDIX

• Wall Mount

• PoE Ports: 4 Ports
• PoE Budget: 120W available for all PoE++ ports, 90W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡

• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△

• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP

- IGMP v1/v2/v3 Snooping
- Fast Leave

• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID

• Omada Hardware Controller
• Omada Software Controller

• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†

• Power Adapter
• Power Cord
• Mounting Feet
• Installation Guide

• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

  • Refunds or exchanges may only be made within 30 days of receiving the merchandise. If an item has been opened or used, a 25% processing fee will be applied for a refund or an exchange.
  • Products that are returned to Seller with missing, damaged or altered Box, Parts, or Accessories will be either refused or charged a processing fee equal or greater than 25%.
  • All other returns due to the reason of Order by Mistake, Change of Mind, Found Better Price are subject to a 30% deduction of the original purchase price. This processing fee is to cover the 2-Way shipping fees of shipping to you and getting the product back. Please read the description thoroughly to ensure it is the right product for you. Please feel free to ask if you have any question prior to placing the order.
