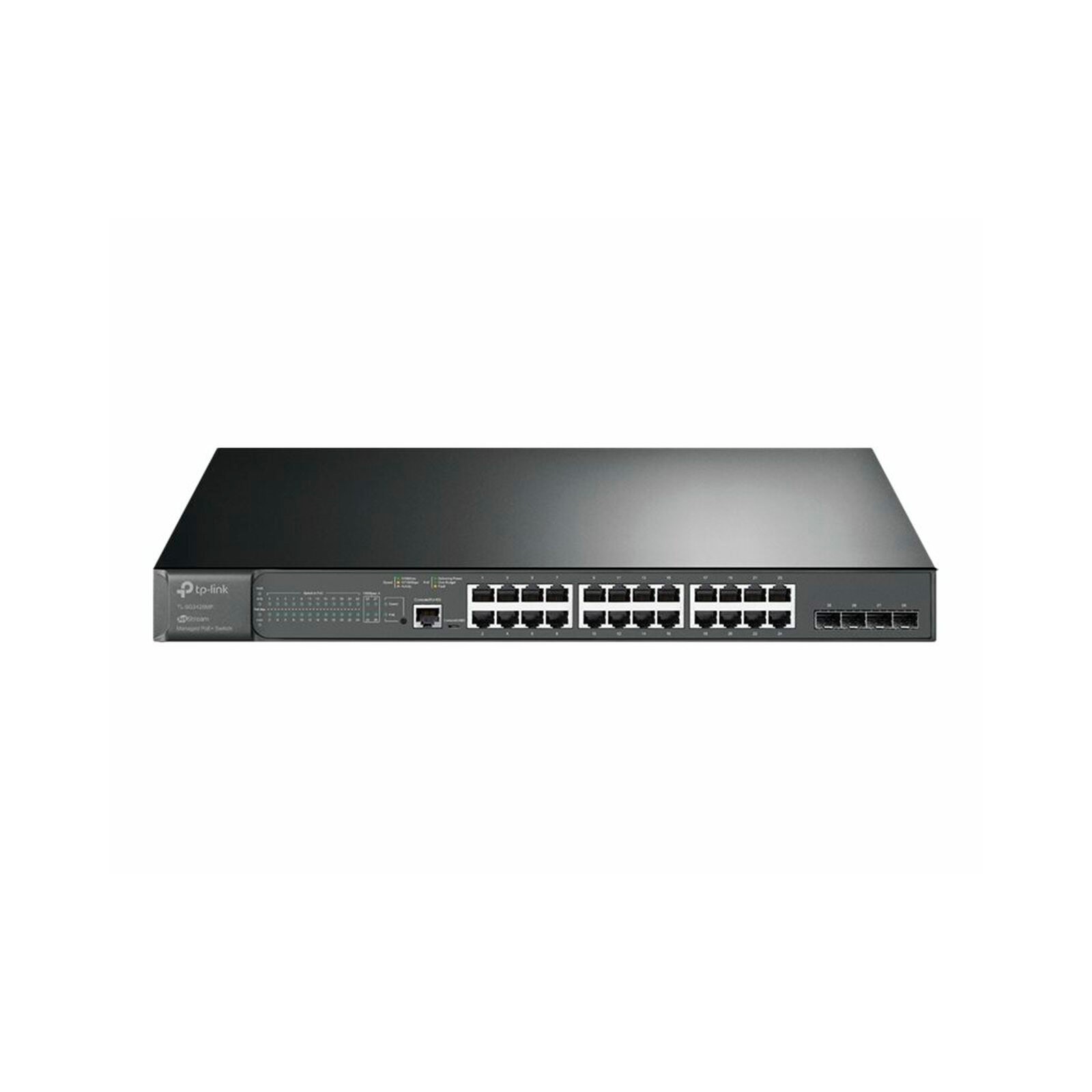

TP-Link JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+ TLSG3428MP Brand: TP LINK UPC: 0845973010157 Mfr Part #: TLSG3428MP

General Information

Convenient Gigabit Switch with 24-Port PoE+ for a Complete Omada Network

JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+

TL-SG3428MP

PoE+ Output

24? Gigabit PoE+ Ports with Total 384 W Power Budget

Centralized Cloud Management

SDN Solutions Integration for a Highly Efficient Network

Robust Security Strategies

LAN Area Investment Protection

Advanced L2+ Features

Static Routing, IGMP Snooping 802.1 Q VLAN and More

Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications

Features 24? 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Software Defined Networking (SDN) with Cloud Access

Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network- all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Secure Networking

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

Abundant L2 and L2+ Features

A complete lineup of L2 features are supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

ISP Features

sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Media & PerformanceMedia Type Supported:Optical FiberMedia Type Supported:Twisted PairEthernet Technology:Gigabit EthernetNetwork Technology:1000Base-TNetwork Technology:1000Base-X

I/O ExpansionsNumber of Total Expansion Slots:4Expansion Slot Type:SFP (mini-GBIC)Shared SFP Slot:NoNumber of SFP Slots:4

Network & CommunicationLayer Supported:2Networking Standards:IEEE 802.3afNetworking Standards:IEEE 802.3atNetworking Standards:IEEE 802.1pNetworking Standards:IEEE 802.3adNetworking Standards:IEEE 802.1DNetworking Standards:IEEE 802.1wNetworking Standards:IEEE 802.1sNetworking Standards:IEEE 802.3xNetworking Standards:IEEE 802.1QNetworking Standards:IEEE 802.1xNetworking Standards:IEEE 802.1ab

Management & ProtocolsManageable:Yes

Power DescriptionPoE (RJ-45) Port:YesPoE Budget:384 WInput Voltage:120 V ACInput Voltage:230 V ACFrequency:50 HzFrequency:60 HzPower Source:Power SupplyPower Consumption:34.40 W

Physical CharacteristicsForm Factor:Rack-mountableForm Contents:

• JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Environmentally Friendly:YesEnvironmental Certification:RoHSCountry of Origin:China
