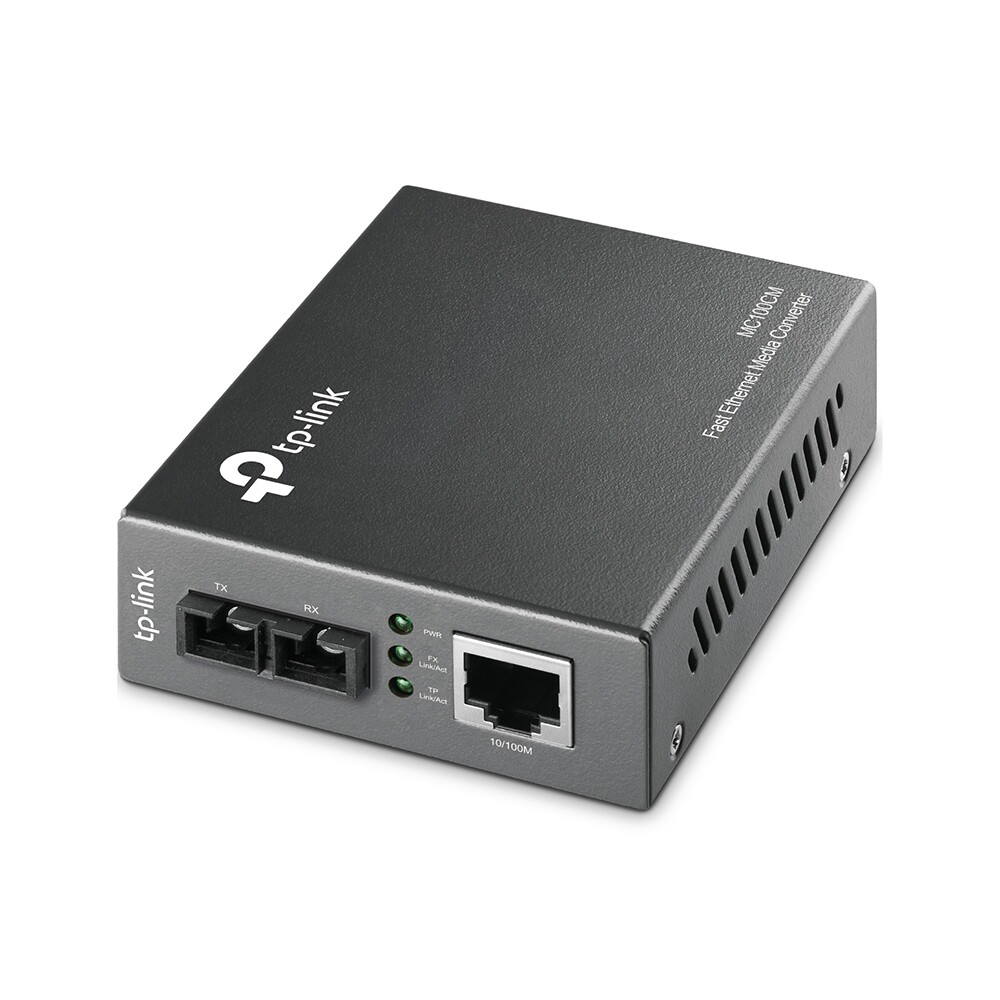

Overview:

Features:

·Auto negotiation of 10/100Mbps and autoMDI/MDIX for TX port.

·Provide switch configuration ofHalf-Duplex / Full-Duplex transfer mode for FX port.

·Link Fault Passthrough and Far EndFault minimize the loss caused by link failure timely

·Extend fiber distance up to 2km (1.2miles).

·Easy-to-view LED indicators providestatus to monitor network activity easily.

·Supports both 5VDC and 9VDC externalpower supply.

MEDIA CONVERTER & MODULE

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Basic Function

Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 2km
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Ports

1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX)

Wave Length

1310nm

Network Media 10BASE-T

UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-T

UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-FX

Multi-mode Fiber

LED Indicators

PWR, FDX/Col, Link/Act, SPD

Dimensions (W*D*H)

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply

External power supply

Max Power Consumption

2.5W

Safety & Emission

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
