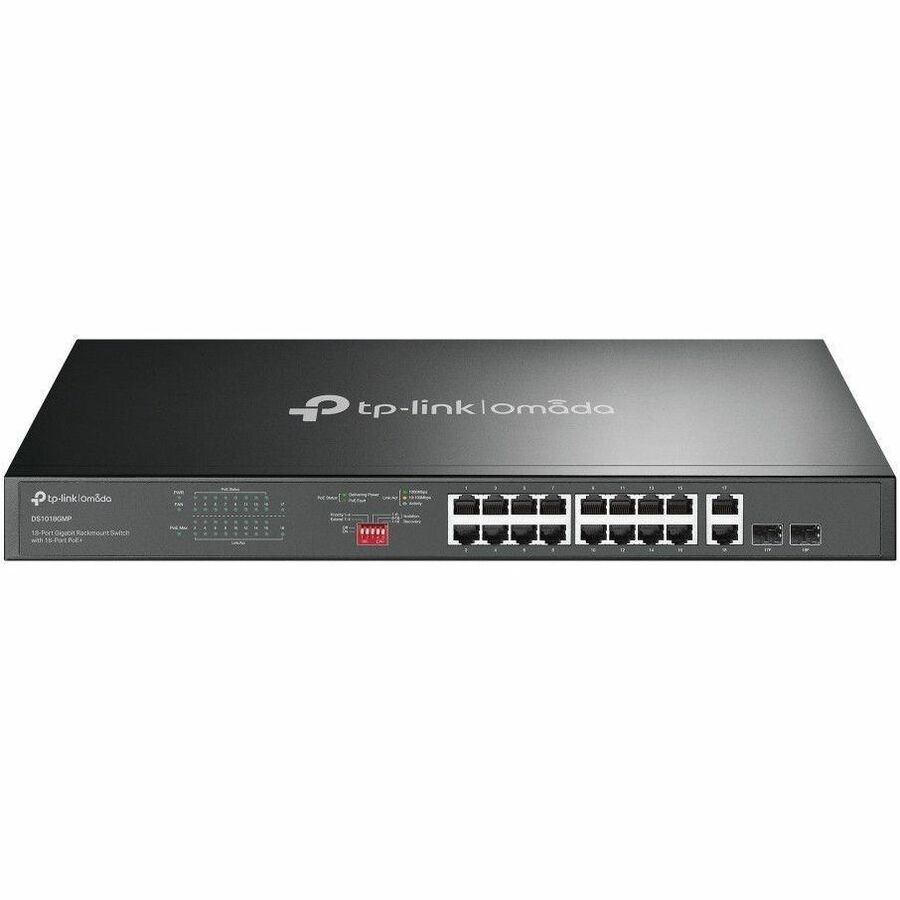

TP-Link Omada 18-Port Gigabit Rackmount Switch with 16-Port PoE+ TP-Link Omada 18-Port Gigabit Rackmount Switch with 16-Port PoE+
International Customers: All electronic products are packaged for sale in the US with US voltage.
Application/Usage: Business
Product Description
This item is brand-new, factory sealed.
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 250 W with 30 W max per PoE+ port. When total power consumption exceeds 250 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
16 Gigabit PoE+ RJ45 ports and 2 Combo Gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W* for all PoE ports
Working with IEEE 802.3af/at compliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority mode for ports 14 to guarantees the quality of sensitive applications like video monitor
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play. No configuration or central management required.?HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z, IEEE 802.1p
Interface
16x 10/100/1000 Mbps PoE+ RJ45 ports
2x Combo Gigabit SFP slots
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2
Physical Security Lock
Yes
Power Supply
100 - 240 VAC, 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1-16
PoE Power Budget: 250 W
Mounting
Rack Mountable
Max Power Consumption
19 W (220/50 Hz. no PD connected)
293.34 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation
64.79 BTU/h (no PD connected)
1000.29 BTU/h (with 250 W PD connected)PERFORMANCE
Switching Capacity
36 Gbps
Packet Forwarding Rate
26.78 Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode: Ports 1-4
Priority Mode: Ports 1-4
Isolation Mode: Ports 1-8/9-16
PoE Auto Recovery: Ports 1-16
Mac Address Auto-Learning and Auto-Aging
802.1p/DSCP QoS
IEEE802.3x Flow Control
Jumbo Frame
10 KBOTHERS
Certification
CE, FCC, RoHS
Package Contents
DS1018GMP
Installation Guide
Power Cord
Rackmount Kit
Rubber Feet
Environment
Operating Temperature: 0 - 50 oC (32 - 122 oF)
Storage Temperature: -40 - 70 oC (-40 - 158 oF)
Operating Humidity: 10 - 90% RH non-condensing
Storage Humidity: 5 - 90% RH non-condensingItem Dimension (L inchxW inchxH inch)
21 x 10 x 4
Weight
7 lbs
Warranty Information
Limited Lifetime SpecificationManagement & ProtocolsManageableNoPower DescriptionPower SourcePower SupplyPoE Budget250 WFrequency
Input Voltage
PoE (RJ-45) PortYesPower Consumption293.34 WPhysical CharacteristicsForm Factor
- 18 x 10/100/1000BASE-T RJ45 Network Ports
- 2 x Gigabit SFP Expansion Port
Total Number of Network Ports18I/O ExpansionsTotal Number of Expansion Slots2.0Number of SFP Slots2Expansion Slot TypeSFPGeneral InformationBrand NameOmadaMarketing Information DS1018GMP is an 18-port Gigabit Desktop/Rackmount Switch with 16 PoE+ ports. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 250 W*, up to 30 W per port, DS1018GMP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, DS1018GMP can save power consumption, making it an eco-friendly solution for your business network. Product TypeEthernet SwitchProduct NameOmada 18-Port Gigabit Rackmount Switch with 16-Port PoE+ManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberDS1018GMPMedia & PerformanceEthernet Technology
- Gigabit Ethernet
- Fast Ethernet
Maximum Data Transfer Rate128 MB/sMedia Type Supported
- Optical Fiber
- Twisted Pair
Network Technology
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE802.3af
- IEEE 802.3z
- IEEE 802.1p
