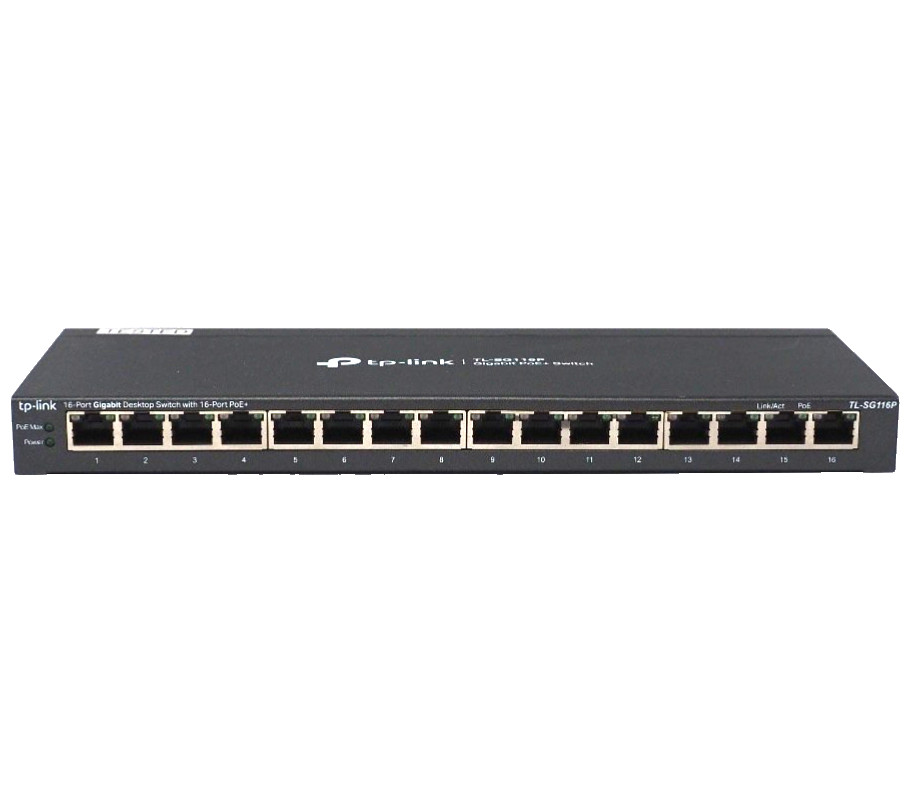

TP-Link TL-SG116P — 16-Port Gigabit PoE+ Unmanaged Switch
⚠️ POWER ADAPTER NOT INCLUDED — please read
This switch requires an external adapter with output of53.5V DC / 2.43A. This is a non-standard high-voltage supply, not a common 12V brick. You will need to source one before the switch will operate.
Do not attempt to use a 12V, 48V, or generic adapter — doing so can damage the switch.TP-Link sells the correct replacement, and compatible units are available, but budget for it before you buy.
Priced accordingly. If you already have the matching adapter or a TL-SG116P with a dead board, this is a straightforward fix.
Specifications
- Model: TL-SG116P
- Ports: 16× 10/100/1000 Mbps RJ45,all 16 PoE+ capable
- PoE: IEEE 802.3af/at, up to 30W per port,120W total budget
- Cooling: Fanless — completely silent
- Switching: Store and forward, 23.8 Mpps forwarding rate, 8K MAC table, 10KB jumbo frames
- Features: 802.1p/DSCP QoS, IGMP snooping, 802.3x flow control
- Extend Mode: PoE and data up to 250m (drops to 10 Mbps)
- Priority Mode: prioritizes ports 1–4
- Isolation Mode: one-click client traffic separation
- PoE Auto Recovery: reboots unresponsive powered devices automatically
- Management: Unmanaged, plug and play — no configuration, no web interface
- Dimensions: 11.26 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)
About the 120W budget
Each port can deliver up to 30W, but 120W is the ceiling across all ports combined. In practice that's roughly four full-draw access points, or a dozen or so typical IP cameras. If you need every port at full PoE+, this isn't the switch.
