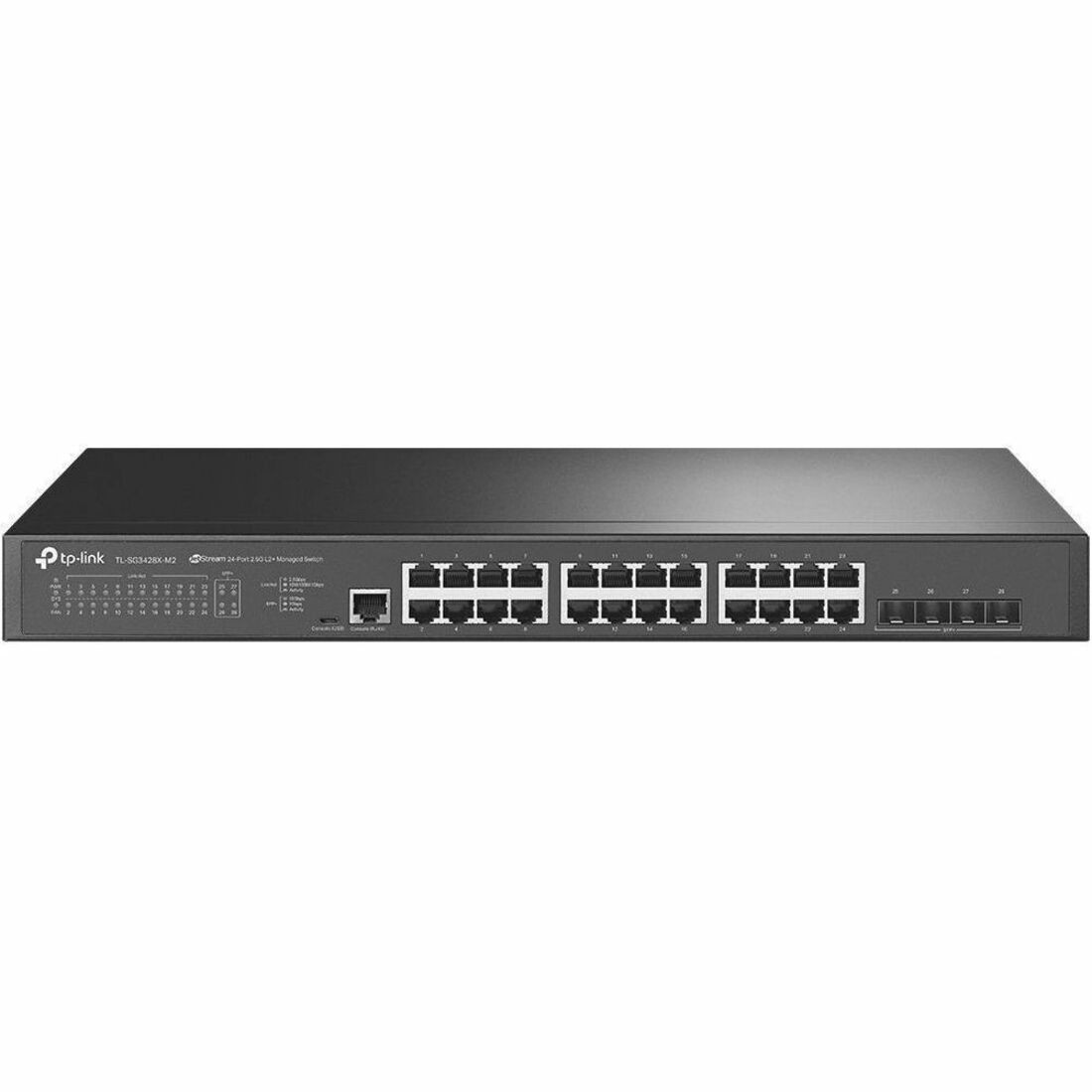

TP-Link TL-SG3428X-M2 - JetStream 24-Port 2.5GBASE-T (TLSG3428XM2) TP-Link TL-SG3428X-M2 - JetStream 24-Port 2.5GBASE-T (TLSG3428XM2)

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

Integrated into the Omada SDN

Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.



10G Lighting-Fast Uplink

Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.



2.5G PoE+ & PoE++ Ports

8-Port PoE++ and 16-Port PoE+ 2.5 Gbps ports with up to 500W power budget make it ideal for the deployment of Wi-Fi 6 APs.



Abundant L2 and L2+ Features

Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS and IGMP Snooping.



Robust Security Strategies

Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.HARDWARE FEATURES
Interface
24x 2.5 Gbps RJ45 Ports
4x 10G SFP+ Slots
1x RJ45 Console Port
1x Micro-USB Console Port
Fan Quantity
1
Power Supply
100-240 V AC-50/60 Hz
Mounting
Rack Mountable
Max Power Consumption
45.1 W (110V/60Hz)
Max Heat Dissipation
154.38 BTU/h (110 V/60 Hz)PERFORMANCE
Switching Capacity
200 Gbps
Packet Forwarding Rate
148.80 Mpps
MAC Address Table
32 K
Packet Buffer Memory
16 Mbit
Jumbo Frame
9 KBSOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS RemarkL2 and L2+ Features
Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
- Port based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/BothL2 Multicast
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
Querier
- IGMP Authentication
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
MVR
MVR Multicast Filtering: 256 profiles and 16 entries per profile VLAN
VLAN Group
- Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 256 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLANAccess Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLANSecurity
IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access controlIPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTPL3 Features
32 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
- 128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 RelayAdvanced Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleMIBs
MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBMANAGEMENT
Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.Management Features
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System LogOTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG3428X-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, VistaTM or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0 - 40 oC (32 - 104 oF)
Storage Temperature: -40 - 70 oC (-40 - 158 oF)
Operating Humidity: 10 - 90% RH non-condensing
Storage Humidity: 5 - 90% RH non-condensingItem Dimension (L inchxW inchxH inch)
21 x 10 x 4

Weight
7 lbs

Warranty Information
Limited Lifetime SpecificationManagement & ProtocolsManageableYesPower DescriptionPower SourcePower SupplyFrequency

• 50 Hz
• 60 Hz

Input Voltage

• 120 V AC
• 230 V AC

Power Consumption45.10 WPhysical CharacteristicsForm Warranty5 YearInterfaces/PortsUplink PortYesPort/Expansion Slot Details

• 24 ? 2.5 Gigabit Ethernet Network
• 4 ? 10 Gigabit Ethernet Expansion Slot
• 1 ? RJ45 Console Port
• 1 ? Micro-USB Console Port

Total Number of Network Ports24ModularYesI/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFP+Number of SFP+ Slots4General InformationBrand NameTP-LinkMarketing Information Integrated into the Omada SDN Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring. 10G Lighting-Fast Uplink Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots. 2.5G PoE+ & PoE++ Ports 8-Port PoE++ and 16-Port PoE+ 2.5 Gbps ports with up to 500W power budget make it ideal for the deployment of Wi-Fi 6 APs. Abundant L2 and L2+ Features Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS and IGMP Snooping. Robust Security Strategies Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more. Product TypeEthernet SwitchProduct NameJetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ SlotsManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SG3428X-M2Product LineJetStreamMedia & PerformanceEthernet Technology

• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet
• Gigabit Ethernet

Media Type Supported

• Twisted TitleTP-Link TL-SG3428X-M2 - JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots (TLSG3428XM2)Network & CommunicationLayer Supported2 Shipping
