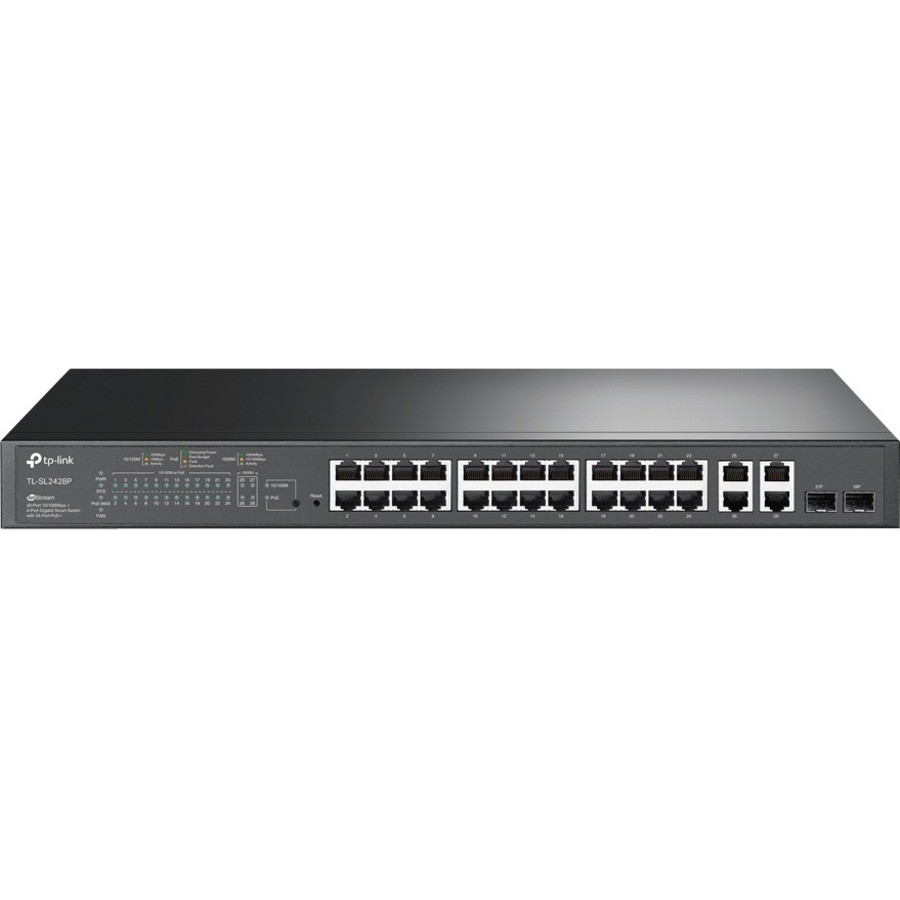

TP-Link TL-SL2428P - 24 Port Fast Ethernet Smart Managed PoE Switch - Limited Lifetime Warranty TP-Link TL-SL2428P - 24 Port Fast Ethernet Smart Managed PoE Switch - Limited Lifetime Warranty

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: 24-Port 10/100Mbps + 4-Port Gigabit Smart PoE+ Switch Power Cord Installation Guide Rackmount Kit Rubber Feet

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

TL-SL2428P

JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+

250 W PoE Budget: 24 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.

Gigabit Ports: 2x Gigabit RJ45 ports and 2x Combo Gigabit RJ45/SFP Ports provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Realize More Possibilities with Omada

JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart PoE+ Switch

Centralized Cloud Management

Omada SDN Platform Integration

Advanced L2+ Features

L2/L3/L4 QoS, ACL, Static Routing and More

Abundant Security Strategies

LAN Area Investment Protection

PoE+ Output

24 PoE+ Ports with Total 250 W Power Budget

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24x 10/100Mbps PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Software Defined Networking (SDN) with Cloud Access

Omadas Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface
24 10/100Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Combo Gigabit Uplink RJ45/SFP Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity
2
Physical Security Lock
Yes
PoE Budget
250 W
Mounting
Rack Mountable
Max Power Consumption
18.8 W (220 V / 50 Hz with no PD connected)
286.7 W (220 V / 50 Hz with 250 W PD connected)
Max Heat Dissipation
64.1 BTU/h (with no PD connected)
977.6 BTU/h (220 V / 50 Hz with 250 W PD connected)PERFORMANCE
Switching Capacity
12.8 Gbps
Packet Forwarding Rate
9.5 Mpps
MAC Address Table
8K
Jumbo Frame
9216 BytesSOFTWARE FEATURES
Quality of Service
802.1p CoS/ DSCP priority
8 priority queues
Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port/Flow based Rating Limit
Smoother Performance
Actions for flows
- Mirror(to supported interface)
- Redirect(to supported interface)
- Rate Limit
- QoS Remark
Storm Control
- Multiple Control Modes(kbps/ratio/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features
Link Aggregation
- Static link aggregation
- Up to 8 aggregation groups and up to 8 ports per group
- 802.3ad LACP
Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
Loopback Detection
- Port based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
- CPU MirroringL2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile
IPv6 Support
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery(MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
VLAN
VLAN Group
- Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLANAccess Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN
Security
IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTPL3 Features
16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
- 128 static entries
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
- DHCP interface relay
- DHCP VLAN relay
DHCP L2 Relay
Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
MIBs
MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBsOTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SL2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0oC-50oC (32oF-122oF)
Storage Temperature: -40oC-70oC (-40oF-158oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensingItem Dimension (L"xW"xH")
21 x 10 x 4

Weight
7 lbs

Warranty Information
Limited LifetimePackage Contents:

• 24-Port 10/100Mbps + 4-Port Gigabit Smart PoE+ Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

SpecificationManagement & ProtocolsManageableYesPower DescriptionPower SourcePower SupplyPoE Budget250 WPoE (RJ-45) PortYesPower Consumption18.80 WPhysical CharacteristicsForm Factor

• 24 x Fast Ethernet PoE+
• 4 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet TP/SFP Combo

Total Number of Network Ports24I/O ExpansionsTotal Number of Expansion Slots2Shared SFP SlotYesNumber of SFP Slots2Expansion Slot TypeSFP (mini-GBIC)General InformationBrand NameTP-LinkMarketing Information What This Product Does TP-Link smart switch T1500-28PCT is equipped with 24 10/100Mbps RJ45 ports, 4 10/100/1000Mbps RJ45 ports and 2 combo Gigabit SFP slots. All of the 24 10/100Mbps RJ45 ports support the 802.3at/af (PoE+) standard with total PoE power budget of 192W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-Link smart switch T1500-28PCT is a cost-eff?ective product solution for the small and medium business. T1500-28PCT has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-Link smart switch T1500-28PCT provides you the ideal access-edge solution. IEEE 802.3at/af-compliant Power over Ethernet The T1500-28PCT supports 24 ports of IEEE 802.3af/at-compliant PoE and has a total power supply of 192W to power any 802.3af/at-compliant power device. It's an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T1500-28PCT is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks. Advanced QoS features To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance. Abundant Layer 2 features For more application of layer 2 switches, T1500-28PCT supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Enterprise Level Management Features T1500-28PCT is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. Product TypeEthernet SwitchProduct Name24-Port 10/100Mbps + 4-Port Gigabit Smart PoE+ SwitchManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SL2428PProduct ModelT1500-28PCTMedia & PerformanceEthernet Technology

• Fast Ethernet
• Gigabit Ethernet

Media Type Supported

• Optical Fiber
• Twisted Pair

Network Technology

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.3az
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3at
