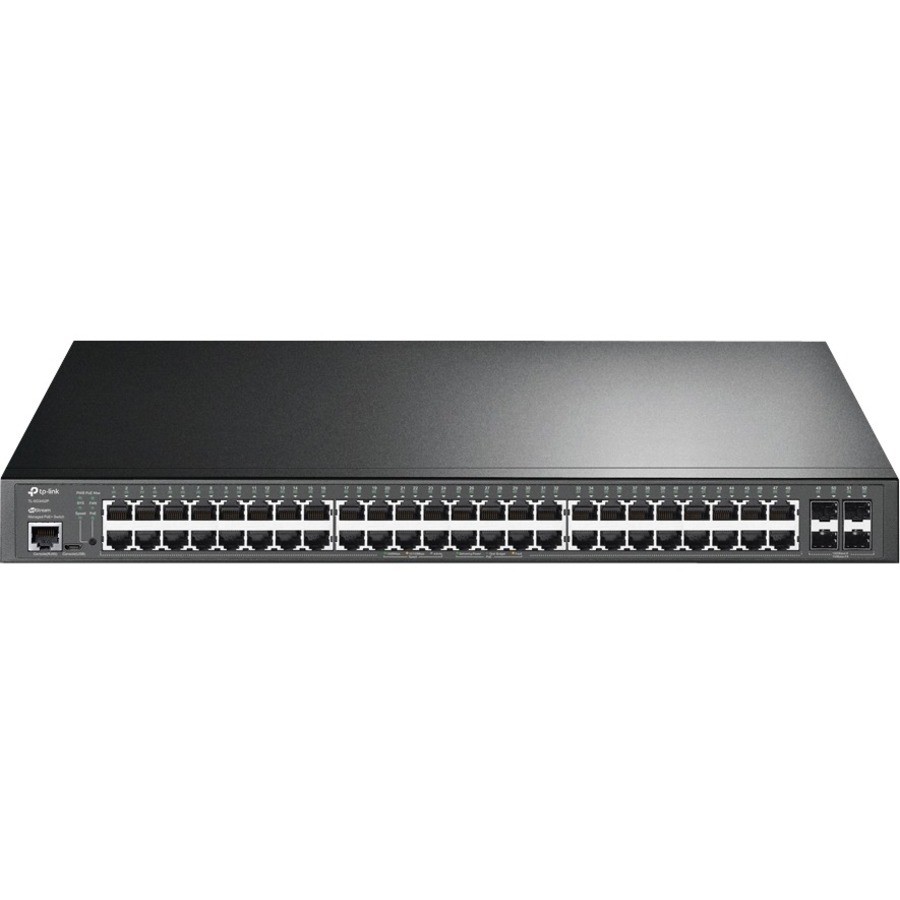

TP-Link TL-SG3452P - JetStream 48 Port Gigabit L2+ Managed PoE Switch - Limited Lifetime Warranty (253479) TP-Link TL-SG3452P - JetStream 48 Port Gigabit L2+ Managed PoE Switch - Limited Lifetime Warranty (253479)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: JetStream TL-SG3452P Ethernet Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
384 W PoE Budget: 48 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
Full Gigabit Ports: 48 gigabit RJ45 ports and 4 gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities. HARDWARE FEATURES
Interface
48x 10/100/1000 Mbps RJ45 Ports
4x Gigabit SFP Slots
1x RJ45 Console Port
1x Micro-USB Console Port Fan Quantity
3 Power Supply
100-240 V AC 50/60 Hz PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports, up to 30 W per port
Power Budget: 384 W Mounting
Rack Mountable Max Power Consumption
52.5 W (no PD connected)
485.4 W (110 V/60 Hz) (with 384 W PD connected) Max Heat Dissipation
179.1 BTU/hr (110 V/60 Hz) (no PD connected)
1656.2 BTU/hr (110 V/60 Hz) (with 384 W PD connected) PERFORMANCE
Switching Capacity
104 Gbps Packet Forwarding Rate
77.4 Mpps MAC Address Table
16 K Jumbo Frame
9 KB SOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark L2 and L2+ Features
Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
Loopback Detection
- Port-based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile VLAN
VLAN Group
- Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN Access Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN Security
IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System LogPackage Contents:
- JetStream TL-SG3452P Ethernet Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
SpecificationManagement & ProtocolsManageableYesPower DescriptionPower SourcePower SupplyPoE Budget384 WFrequency
PoE (RJ-45) PortYesPower Consumption52.50 WPhysical CharacteristicsForm Factor
- 48 x Gigabit Ethernet PoE+
- 4 x Gigabit Ethernet Expansion Slot
Total Number of Network Ports48ModularYesI/O ExpansionsTotal Number of Expansion Slots4Number of SFP Slots4Expansion Slot TypeSFP (mini-GBIC)General InformationBrand NameTP-LinkProduct TypeEthernet SwitchProduct NameJetStream TL-SG3452P Ethernet SwitchManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SG3452PProduct ModelTL-SG3452PProduct LineJetStreamMedia & PerformanceEthernet TechnologyGigabit EthernetMedia Type Supported
- Optical Fiber
- Twisted Pair
Network Technology
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1ab
