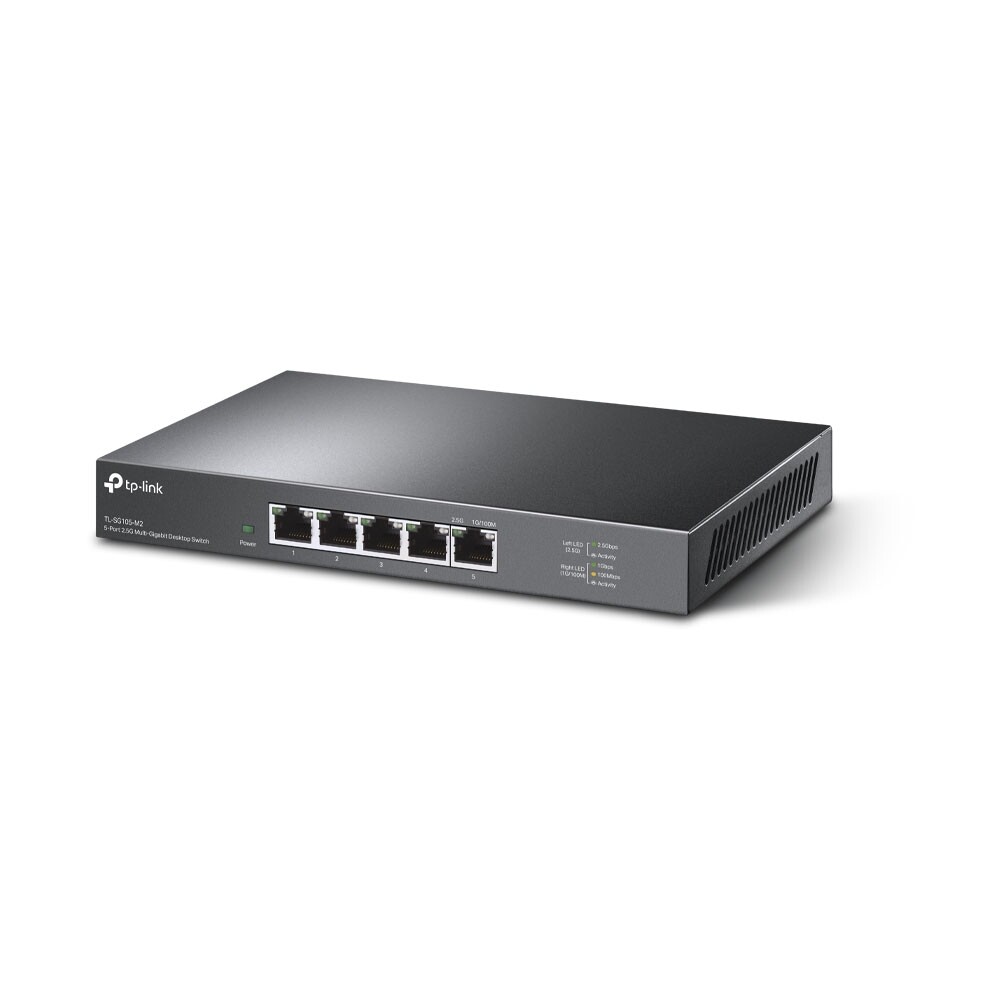

TL-SG105-M2 New
5-Port 2.5G Desktop Switch
Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highestperformance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbpsof switching capacity.
Super-Fast Connections. Provides super-fast connections to2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
Ideal for Various Scenarios. Built for LAN parties, homeentertainment, small and home offices, and instant transfer for workstations,
Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps withoutthe need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**
Silent Operation. Industry-leading fanless design ensuressilent operation, ideal for any home or business.
Plug and Play. Allows for easy deployment without the needfor a technician.
Metal Casing. Durable metal casing and desktop/wall-mountingdesign are well-suited for different environments.
Standards and Protocols IEEE802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface 5×100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply ExternalPower Adapter (Output: 12 VDC / 1 A)
LED Indicator •System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built intoeach RJ-45 port
Dimensions ( W x D x H ) 8.2×4.9×1.0in (209×126×26 mm)
Max Power Consumption 12.11W
Max Heat Dissipation 41.32BTU/h
PERFORMANCE
Switching Capacity 25Gbps
Packet Forwarding Rate 18.6Mpps
MAC Address Table 16K
Packet Buffer Memory 1.5Mb
Jumbo Frame 10 KB
SOFTWARE FEATURES
Advanced Features •802.3X Flow Control
• 802.1p/DSCP QoS
Transfer Method Storeand Forward
OTHERS
Certification CE,FCC ,RoHS
Package Contents •5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment •Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
