TPU Armored Single Mode Fiber Optic Patch Cord
4 Core Single Mode LC Industrial Armored TPU Fiber Optic Patch Cable
Product Features:
- Durable Industrial TPU Jacket: Designed to withstand strong tensile strength, high abrasion resistance, and extreme weather conditions.
- All-Weather Performance: Waterproof, UV-resistant, and capable of withstanding both high and low temperatures.

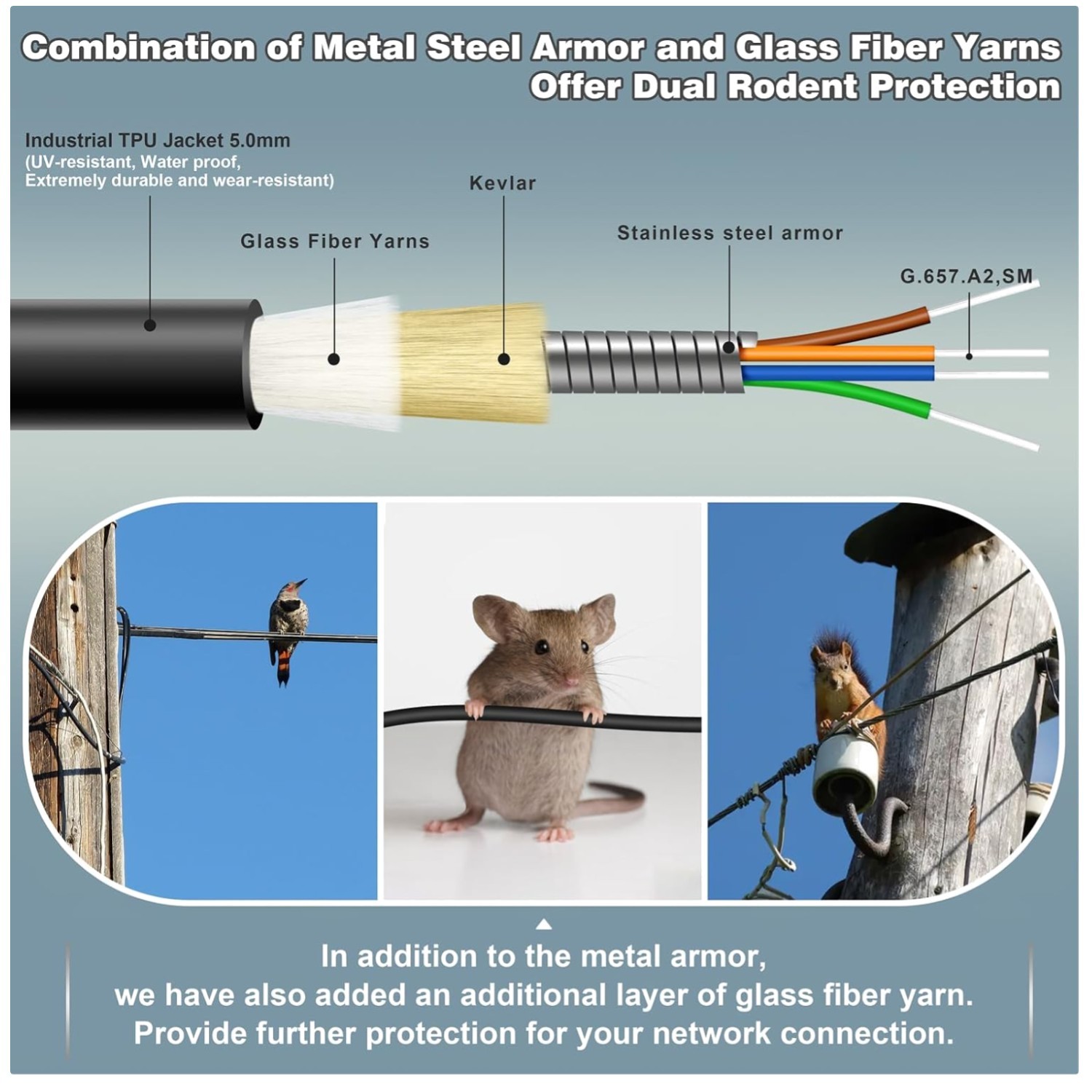

- Enhanced Protection: Combination of Metal Steel Armor and Glass Fiber Yarns provides dual physical protection against rodents and other external threats.
- Pre-Terminated Convenience: Simple plug-and-play design for quick and easy installation.
- Robust Strength: Max. 600N tensile strength and maximum crush strength of 3000N ensure durability in demanding environments.
- Ideal Versatility: Suitable for various harsh installation environments including roads, snowfields, industrial fields, and construction sites.
Technical Specifications:
- Connector Type: LC UPC to LC UPC
- Fiber Mode: OS2 9/125μm
- Fiber Count: 4 Fibers
- Fiber Grade: G.657.A2
- Cable Jacket: TPU (Thermoplastic Polyurethane)
- Trunk Diameter: 5.0mm
- Breakout Diameter: 3.0mm
- Min. Bend Radius: 20/10D (Dynamic/Static)
- Tensile Load: 200/600N (Long/Short Term)
- Wavelength: 1310/1550nm
- Insertion Loss: ≤0.15dB
- Return Loss: ≥55dB
- Operating Temperature: -40~80°C
- Storage Temperature: -40~80°C
Why Choose Our TPU Armored Fiber Optic Patch Cord?
Experience the confidence and reliability of our TPU Armored Single Mode Fiber Optic Patch Cord, designed specifically for rigorous outdoor and industrial applications. Whether you're burying it underground, routing through conduits, or installing overhead, its unparalleled performance and robust protective features ensure your connectivity needs are met without compromise.
Choose resilience — elevate your data transmission solutions with our state-of-the-art fiber optic cable, expertly crafted to endure the harshest environments and elevate your operational efficiency.
Unit Quantity: 75mConnector B: LC UPCConnector A: LC UPCCompatible Model: For Server,For TelevisionCompatible Brand: Fiber Optic Patch CableFeatures: Outdoor Fiber Armored 4 CoreType: Optical Network CableFiber Type: Single-ModeCable Length: Fiber Optic Patch CableColor: Black
