BRAND NEW IN SEALED PACKAGE!!

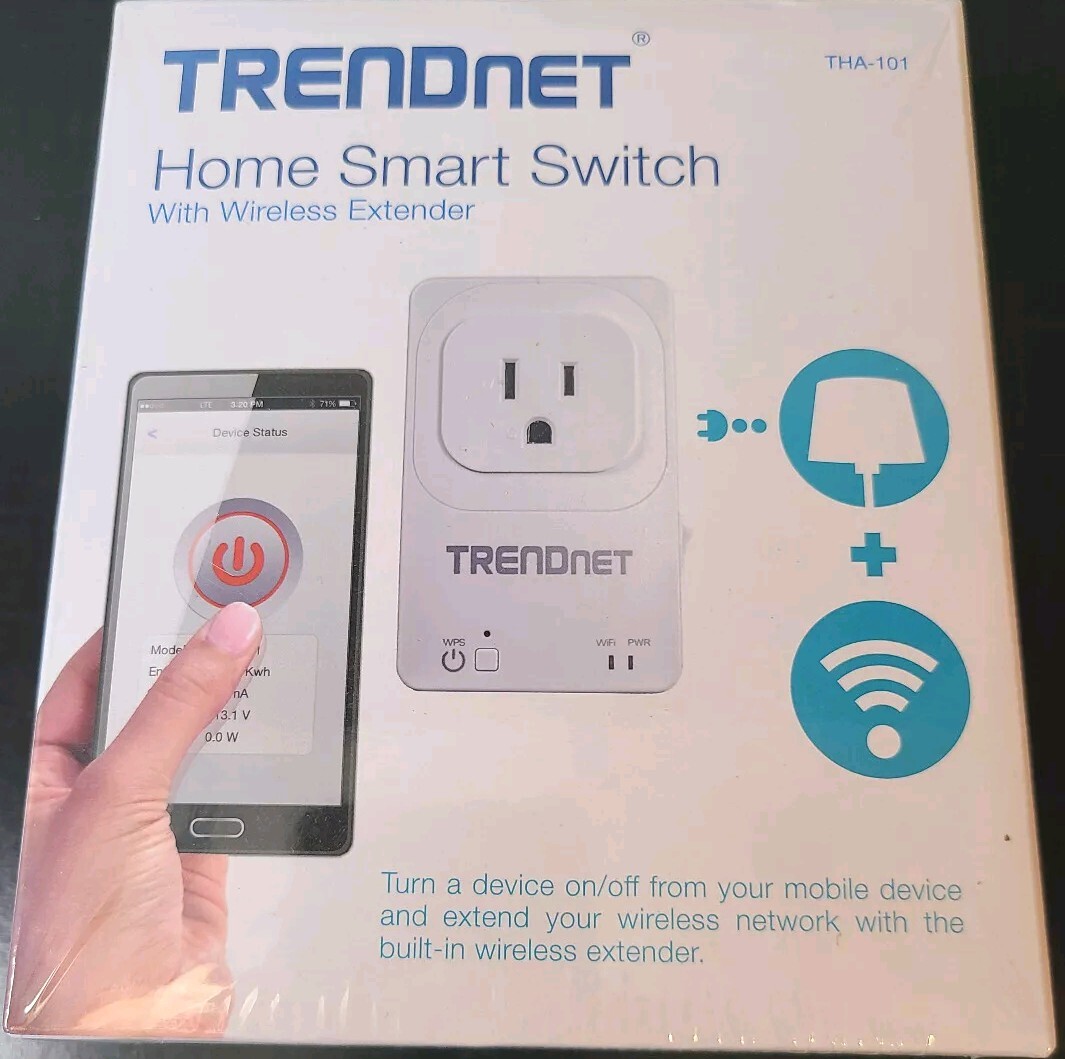

THA-101 (Version v1.0R)

• Quick app-based setup
• Turn a device on/off from any mobile internet connection
• Powerful N300 wireless repeater extends your existing wireless network
• Create a weekly on/off schedule
• Free Apple® and Android™ app
• Requires a home wireless network

TRENDnet's Home Smart Switch with Wireless Extender, model THA-101, is a combination smart electrical outlet and powerful N300 wireless extender. Use the free Apple® or Android™ mobile app from any internet connection to turn on and off a light, fan, electronic device, or appliance. Create a daily schedule to turn on/off the outlet to match your needs or to give the illusion that you're home. Place the THA-101 in an area of your home with low wireless coverage – the powerful built-in N300 wireless extender connects to your existing wireless router and broadcasts a strong wireless network.

Smart Home App

• Quick in-app THA-101 installation
• Power on/off the electrical outlet from any internet connection
• Create weekly on/off electrical outlet schedule
• View real time power consumption: Energy (KWh), current (A), voltage (V), power (W)
• Manage multiple THA-101 units from the app

Hardware Standards

• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n (up to 300 Mbps)

Device Interfaces

• Electrical outlet
• WPS button
• Power switch
• LED indicators
• Reset button

Special Features

• Overcurrent protection
• Requires existing wireless network in order to function

Encryption

• Wireless encryption: WEP, WPA/WPA2-PSK

Media Access Protocol

• CSMA/CA with ACK

Antenna Gain

• 2 x 2 dBi

Frequency

• 2.412 - 2.484 GHz

Wireless Channels

• FCC: 1-11, ETSI: 1-13

Modulation

• 802.11b: CCK (11 Mbps & 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)
• 802.11g: OFDM with BPSK, QPSK and 16/64-QAM
• 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM

Wireless Output Power (EIRP)/Receiving Sensitivity

• 802.11b: 17 dBm (typical)/-84 dBm (typical) @ 11 Mbps
• 802.11g: 14 dBm (typical)/-73 dBm (typical) @ 54 Mbps
• 802.11n: 14 dBm (typical)/-70 dBm (typical) @ 300 Mbps

Power

• 100 - 240 V AC, 50 /60 Hz
• Consumption: 6 Watts max.

Power Capacity

• US: 1800 Watts / 15 Amps
• EU/UK: 3120 Watts / 13 Amps

Operating Temperature

• 0 - 40 °C (32 – 104 °F)

Operating Humidity

• Max. 95% style="box-sizing: border-box; margin-top: 0px; margin-bottom: 1rem; margin-left: -10px;">
• CE
• FCC

Dimensions

• 93 x 58 x 37 mm (3.7 x 2.3 x 1.46 in.)

Weight

• US: 138 g (4.9 oz.)
• EU: 156 g (5.5 oz.)
• UK: 160g (5.6 oz.)

Warranty

• 3 year limited

PACKAGE CONTENTS

• THA-101
• Multi-Language Quick Installation Guide
• CD-ROM (User's Guide)
