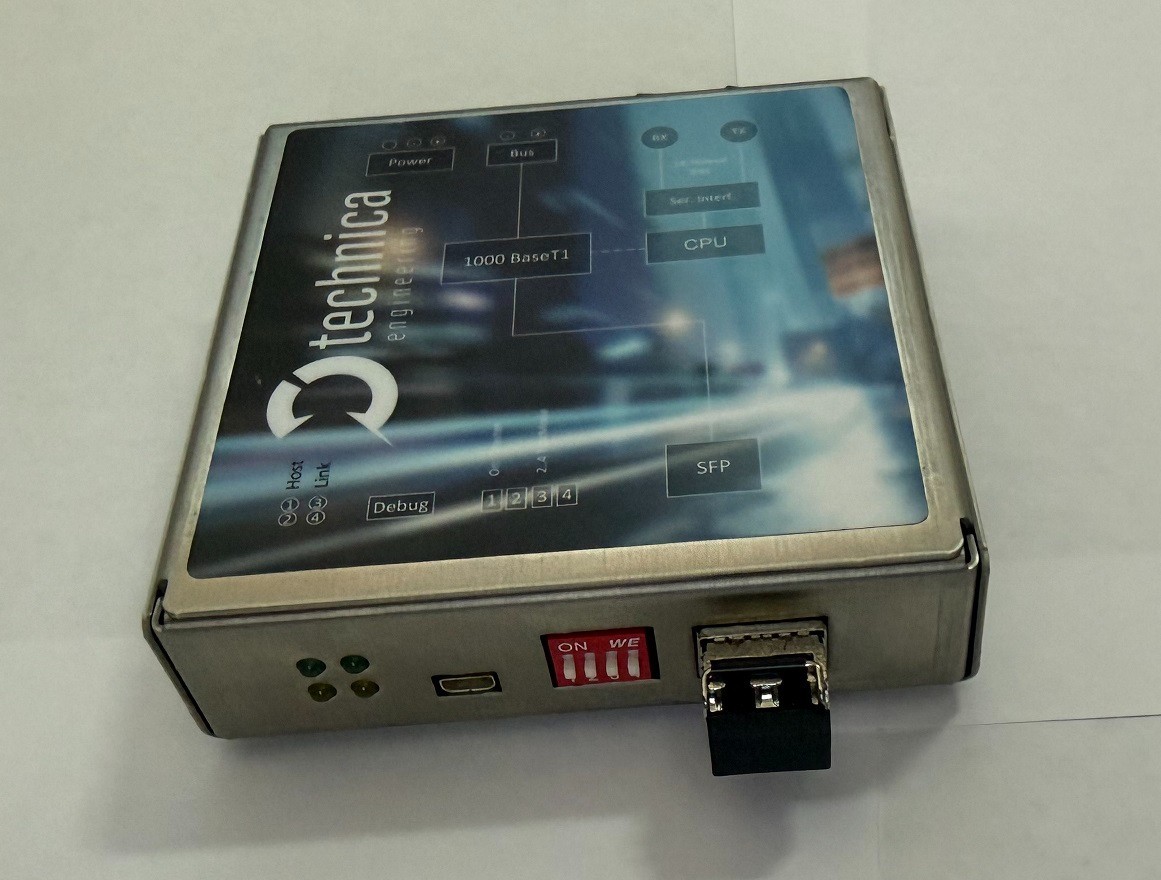

Technica Engineering 1000BASE-T1 Converter EMC
Price: US $350.00
Brand New, includes everything in the picture posted. The 1000BASE-T1 Converter EMC from Technica Engineering is a smart tool used in automotive product development to test electronic control units(ECUs) under EMC conditions. It creates the link between an on-board vehicle network based on1000BASE-T1 (Automotive Gigabit Ethernet) and the Ethernet-based computer belonging to the testing and development set-up. The device provides an SFP Port to connect a standard Ethernet RJ45 module or to use an optical Gigabit Ethernet SFP Module. No packages are stored or modified within the device. The process is a direct physical layer conversion, where the hardware was especially developed and optimized to provide the best possible EMC behavior. Thus, the 1000BASE-T1 Converter EMC is the ideal solution for working quickly and efficiently with the new 1000BASE-T1 technology, and it is the ideal device to perform EMC test through the optical interface.Features:
Converts IEEE 1000BASE-T1 (1000MBit/s full duplex) 1x unshielded twisted pair (UTP) to Gigabit Ethernet(1000BASE-T or optical Ethernet)
Master/slave configuration
SFP Module allows optical Ethernet connection or standard Gigabit Ethernet through RJ45 Connector
Allows to perform EMC test through the optical interface
Stainless steel housing
Status LEDs
Configuration DIP switches
Automotive MateNET connector and cables included (Power, 1000BASE-T1)
