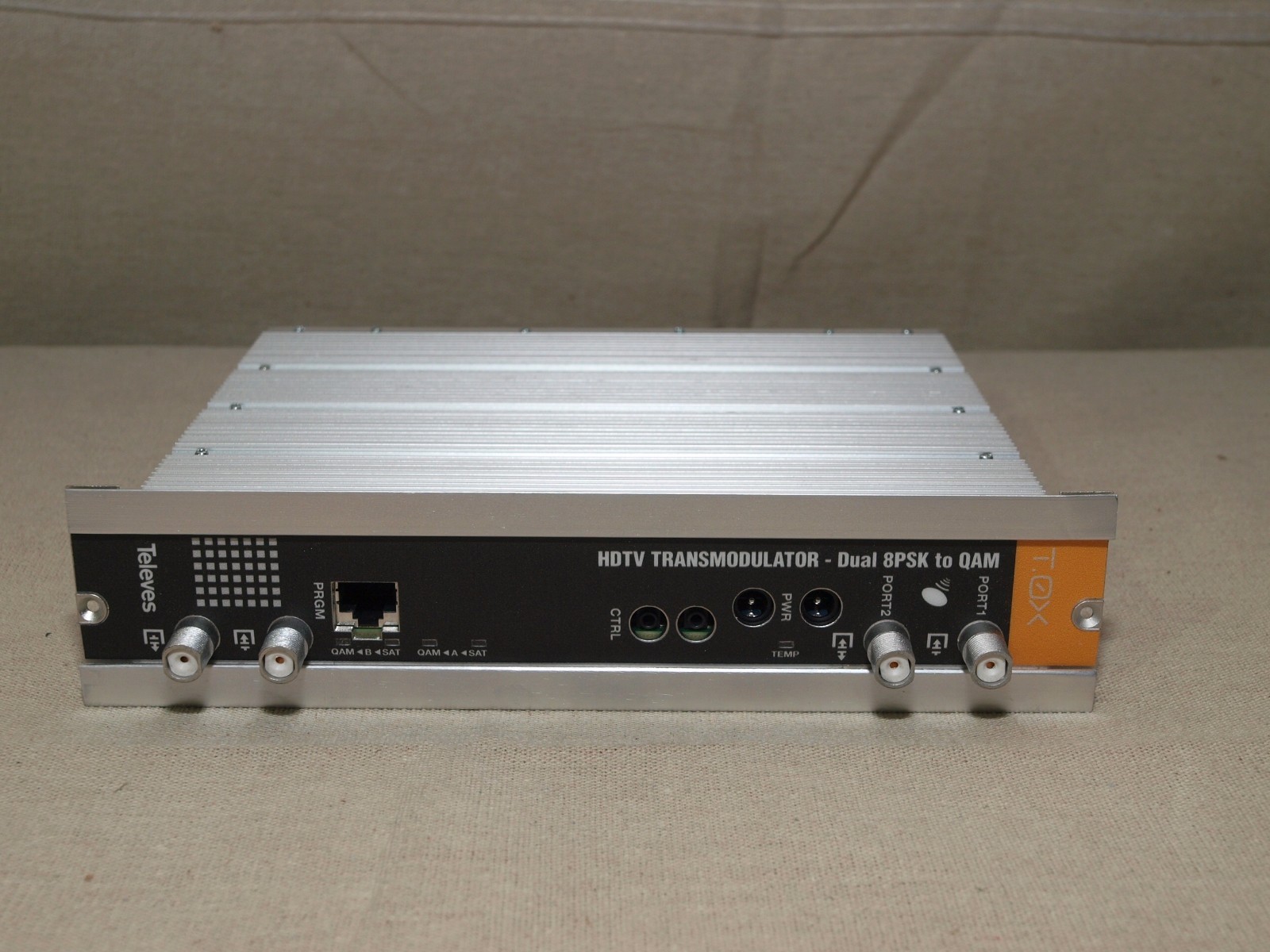

Televes 563701 8PSK/1024-QAM TWIN Transmodulator – NEW

Manufacturer: Televes

Model: 563701

Description: 8PSK/1024-QAM TWIN Transmodulator

Details:
Each of the T.0X Q/8PSK modules contain 2 completely independenttransmodulators that are capable of being feed from either the same ordifferent sources with output frequencies able to be set independently acrossthe entire range in order to provide maximum flexibility. The entiretransponder's multiplex is converted to a single QAM channel so all contentregardless of whether it is video or music, MPEG2 or MPEG4, SD or HD, encryptedor not, will be output unaltered eliminating the need for additional costlyencoding or encryption equipment in the headend. Additionally, both inputs andoutputs can be daisy-chained with the input/output of a module being added tothe input/output of all the preceding modules thus eliminating the need for RFsplitters and combiners. Configuration and Control of the modules can eitherdone through the handheld controller or from any internet connection with theuse of the CDC headend controller module and included iOS and Android Apps. Theremote control of the system provides two easy to use options with the TSuitecomputer application or through any internet browser for maximum customerchoice.

Description:

· The T.0X Seriesis a complete family of digital cable headend products. These products include satellite QPSK and 8PSK to QAM transmodulators,universal modulators and fiber optic transmitters/receivers, amplifiers, andsplitters. The T.0X family of products all fit in a standard 19” rack chassisthat contains a power supply and room for 7 modules.

· Each of theT.0X Q/8PSK modules contain 2 completely independent transmodulators that arecapable of being fed from either the same or different sources with output frequenciesable to be set independently across the entire range in order to providemaximum flexibility.

· The entiretransponder’s multiplex is converted to a single QAM channel so all content regardlessof whether it is video or music, MPEG2 or MPEG4, SD or HD, encrypted or not, willbe output unaltered eliminating the need for additional costly encoding or encryptionequipment in the headend.

· Additionally,both inputs and outputs can be daisy-chained with the input/output of a modulebeing added to the input/output of all the preceding modules thus eliminatingthe need for RF splitters and combiners.

· Configurationand Control of the modules can either be done through the handheld controlleror from any Internet connection with the use of the CDC headend controllermodule. The remote control of the system provides two easy to use options withthe TSuite computer application or through any internet browser for maximumcustomer choice.

Features:

·TWINmodules (two independent tuners per module) allowing up to 14 transcodedtransponders/channels per chassis.

·Userfriendly interface allowing simple selection of which satellite transponder isoutput on which QAM channel including a decoded view of the satellite tables,output channel mode, and DISH NetworkTM installation mode.

·Twocompletely independent and fully agile outputs from 57 to 999 MHz (EIA Ch.2-158) for easier organization of wider-than-6MHz QAM carriers.

·Inputswitching matrix allows for either of the two inputs to be routed to eitherdemodulator including either one of the two inputs routed to both of thedemodulators simultaneously.

·Upto 1024QAM output capability.

·Remotelyupgradeable firmware allows for future updates without having to visit theheadend.

·Carrierwave and null packets output mode for easy system balancing without an inputsignal or without a digital meter.

·Extensivemonitoring information for easy troubleshooting (current and lowest input
SNR, current and highest temperature reached, number of lock loss conditionsover a period of time, etc.) with LED indicators on the front of the unit.

·Back-litLCD display handheld programmer or TSuite PC application options for bothon-site
and remote configuration and troubleshooting.

·Copyconfigurations from one module to another with the handheld programmer for fast
and easy module swaps (copy/paste).

·Webpage configuration and remote management using the CDC system, including
“DISH mode” for easy set-up.

·Input/Outputdaisy-chain architecture to avoid external splitters/ combiners.

·Highperformance, MER>40dB over the full frequency range of 57-999MHz.

·Highoutput level, greater than 38 dBmV with over 20dB of attenuation margin foreasy
balance and integration.

This is a single unit, does not comewith the Power Supply Unit. The PSU (Televes 563901) is sold separately for around$300.

Item is new, in original open packaging; box is slightly distressedand as shown on the images. Accessories are included: documentation andconnecting cables in a sealed bag as shown on the images.

The pictures are showing the actual product the buyer isgetting.
