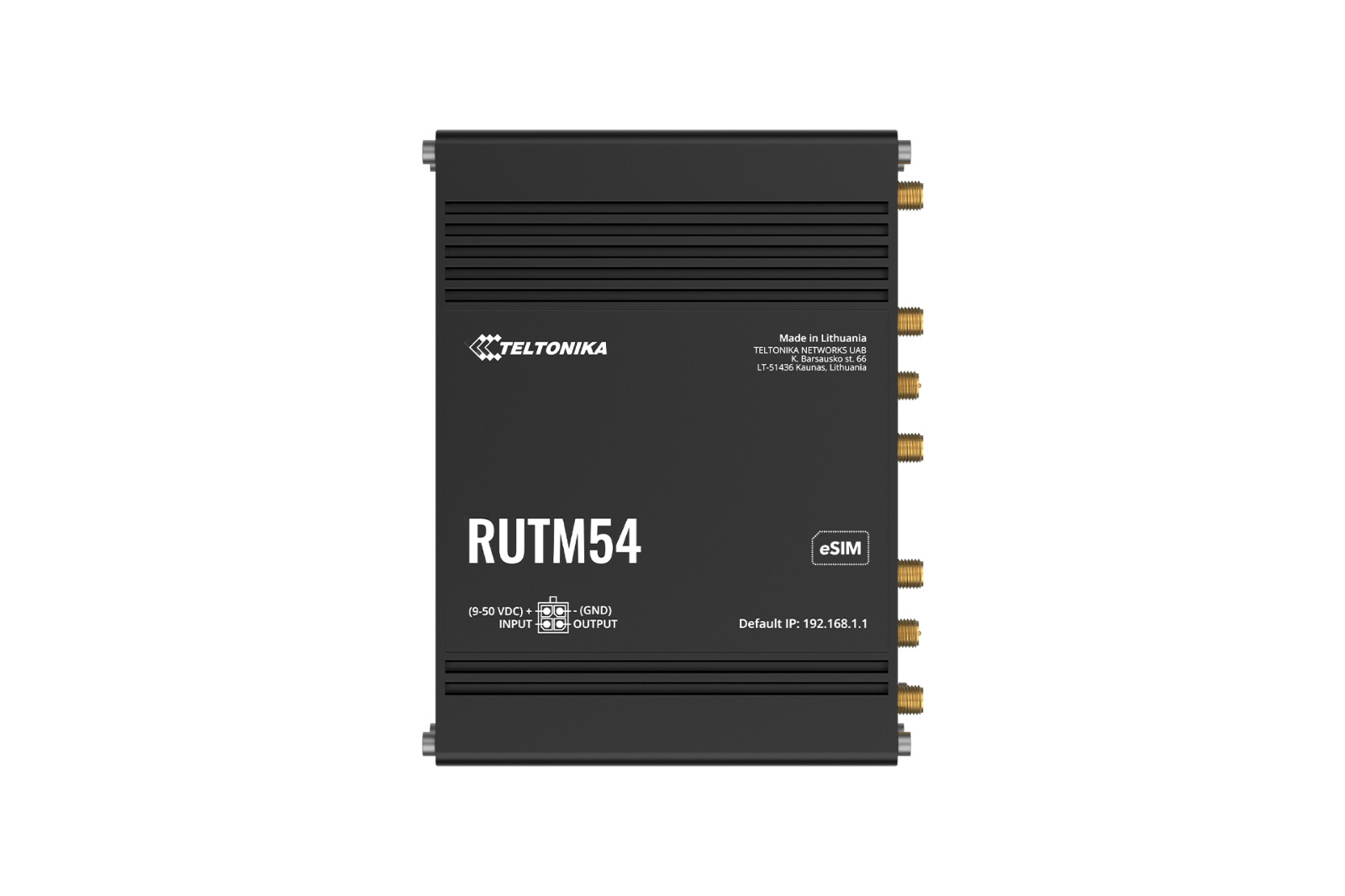

Teltonika RUTM54 5G RouterTELTONIKA NETWORKS · RUTM54000000Industrial 5G Router for Connections That Can't DropDual‑SIM, eSIM auto‑failover, and a global Telit 5G modem rated to 3.4 Gbps — built to run unattended in vehicles, cabinets, and remote sites.3.4 Gbps5G DOWNLOAD (SA/NSA)5 x GbE1 WAN / 4 LAN PORTSDual‑SIM+ eSIM, AUTO FAILOVER-40°CTO 75°C OPERATINGOverviewThe RUTM54 is Teltonika's flagship industrial 5G router, built around a global Telit modem that supports both SA and NSA 5G architectures with full backward compatibility to 4G and 3G. Two physical SIM slots plus onboard eSIM (up to 7 stored profiles) give it automatic failover between carriers, so a dropped connection on one network doesn't take the site offline. Five Gigabit Ethernet ports, dual‑band Wi‑Fi, and GNSS positioning round it out as a single box for fixed installs, fleet vehicles, kiosks, and remote monitoring where downtime isn't an option. Runs Teltonika's RutOS (OpenWrt‑based Linux), with remote management available through RMS.Global Telit 5G modemUp to 3.4 Gbps down / 550 Mbps up on 5G, with LTE Cat 19 and 3G fallback for full coverage continuity.Dual‑SIM + eSIM failoverAutomatic switching on weak signal, data cap, or dropped connection keeps traffic moving.5x Gigabit Ethernet1 configurable WAN and 4 LAN ports, auto MDI/MDIX, for routing wired gear alongside cellular.Dual‑band Wi‑Fi802.11ac Wave 2 with MU‑MIMO, up to 867 Mbps, supports AP and Station modes.GNSS positioningGPS, GLONASS, BeiDou, Galileo, and QZSS for location tracking on mobile deployments.Rugged, wide‑voltage design9–50 VDC industrial power input, aluminum housing built for cabinets and vehicles.Full SpecificationsCellular5G Sub‑6 GHz SA/NSA, 2.5/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL4G / 3G fallbackLTE Cat 19 (1.6 Gbps DL), LTE Cat 18 (211 Mbps UL); 3G 42/5.7 MbpsSIM2 x Mini SIM (2FF) slots + consumer eSIM, up to 7 stored profilesWi‑Fi802.11b/g/n/ac Wave 2, dual‑band, MU‑MIMO, up to 867 MbpsEthernet5 x RJ45, 10/100/1000 Mbps (1 WAN, 4 LAN)CPU / RAMMediaTek dual‑core, 880 MHz / 256 MB DDR3Storage16 MB NOR flash + 256 MB NAND flashGNSSGPS, GLONASS, BeiDou, Galileo, QZSSAntennas4 x SMA (mobile), 2 x RP‑SMA (Wi‑Fi), 1 x SMA (GNSS)I/O1 x digital input, 1 x digital output (4‑pin connector)Power4‑pin DC socket, 9–50 VDC (18 W PSU included)Operating temp‑40°C to 75°CDimensions132 x 44.2 x 95 mmOSRutOS (OpenWrt‑based Linux), remote management via RMSCertificationsCE, UKCA, CB, FCC, IC, PTCRB, WEEE, RoHS, REACHWhat's in the Box• RUTM54 5G router• 18 W power supply unit• 4 x mobile antennas (swivel, SMA male)• 2 x Wi‑Fi antennas (magnetic mount, RP‑SMA, 1.5 m cable)• 1 x GNSS antenna (adhesive, SMA, 3 m cable)• Ethernet cable (1.5 m)• SIM adapter kit• Quick Start GuideWhere It FitsFixed & remote sitesFleet & RV connectivityRetail & kiosksBackup WAN failoverCONDITIONBrand new, sealed retail box. Manufacturer warranty applies.SHIPPINGShips fast with tracking provided. See listing for handling time and rates.RETURNSSee seller return policy for terms and eligibility window.
