The MechBoardZX LED - Sinclair ZX Spectrum 16K/48K ReplacementMechanical Keyboard - Kit
This board is usable as keyboard membrane replacement for ZX Spectrum computer (for model with EFFECT enable press more keys in same time. MechBoardZX enable in ZX gameswith redefine keys use own keys combinations without limits, because here is not mirror effect as onoriginal keyboard membrane. Now is possible with
BACK LIGHT EFFECT – you can build one pattern from 3 different color pattern of your choose:
- – Original Sinclair Logo Pattern (Red, Yellow, Green & Blue arranged diagonally) or
- – Horizontal Sinclair Logo Pattern(Red, Yellow, Green & Blue arranged horizontally) or
- – White color
Board thickness 0.6mm enable easy installation under rubber keyboard. Connection of flat cables is
MECHANICAL TACTILE SWITCHES under each key enable clicking effect for verify if key is pressed.
Flat cables from MechBoardZX may be direct connected to keyboard connectors on ZX mainboard.

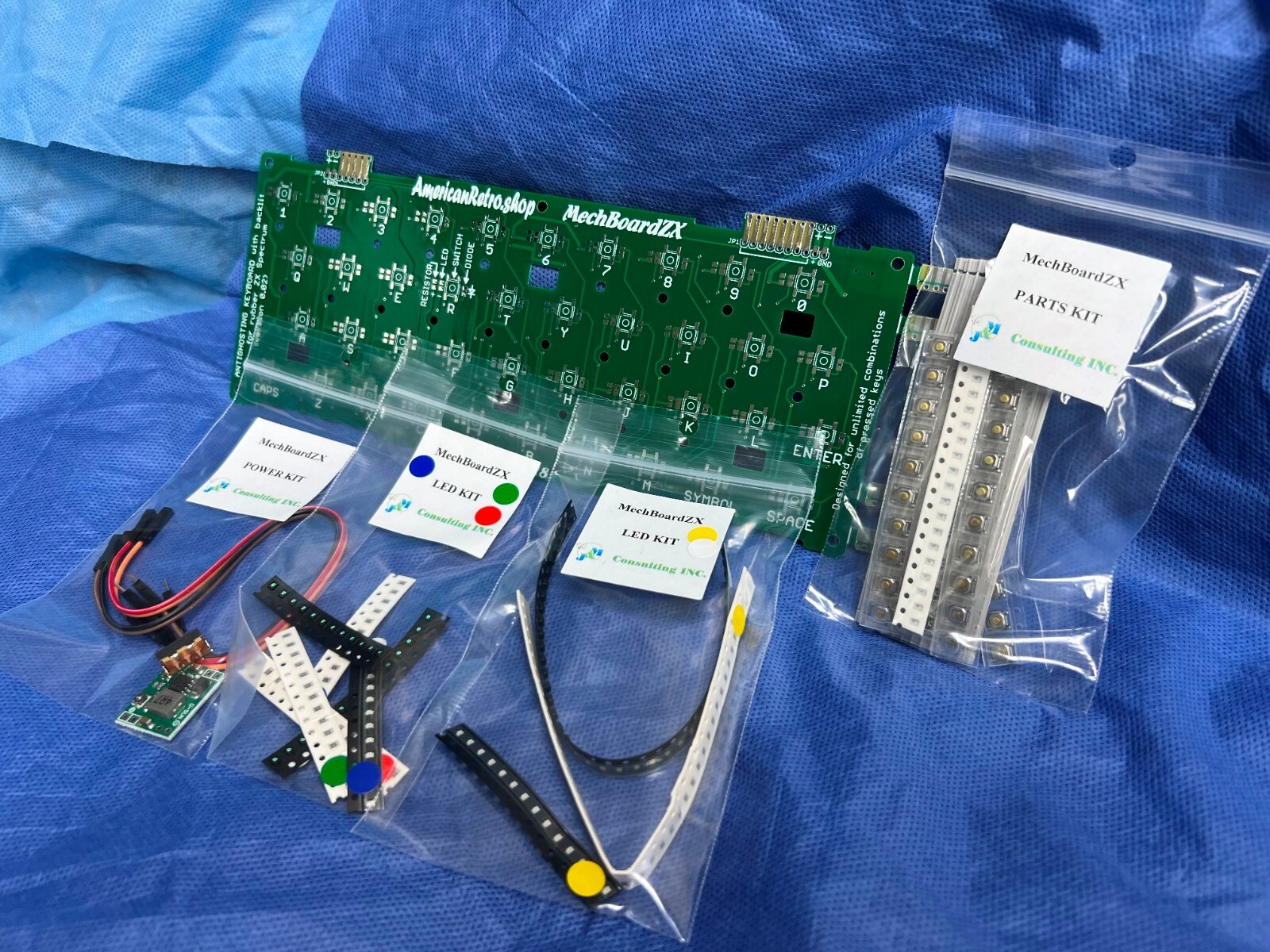

This item include:
1 xThe MechBoardZX PCB40 xHigh quality Alps Alpine switches SMD40 xDiodes 1N4148 SMD2 xFlat cables1 x Power Kit (switch, power regulator, cables)1 x LED & Resistor Kit (Green, Blue, Red) SMD1 x LED & Resistor Kit (Yellow, White) SMD
This versiondoes notincludeRubber Keyboard Mat.
THIS PRODUCT REQUIRES VERY GOOD SOLDERING SKILLS!IF YOU HAVE ANY QUESTIONS, PLEASE DON'T HESITATE TO CONTACT ME!
