Product DescriptionThermal Grizzly KryoSheet

The Thermal Grizzly KryoSheet series of graphene thermal pads can serve as an excellent alternative to high-performance thermal pastes. Similar to Carbonaut pads, they feature an adaptive surface with very high thermal conductivity. However, compared to Carbonaut pads, KryoSheet offers significantly higher thermal conductivity as a high-end product.

The increased thermal conductivity is not solely due to material selection but also the result of an innovative manufacturing process. KryoSheet does not contain any liquid components, eliminating the typical aging process associated with traditional thermal pastes. Drying out is not possible.

IMPORTANT WARNING!

KryoSheet is electrically conductive! Ensure that there is no contact between the thermal pad and transistors or transformers.

Technical Details

• Thickness:0.2 mm
• Measurement: 24mm x 12mm
• Temperature Range:-250 °C to +150 °C

Key features

• Outstanding thermal conductivity
• Easy application
• Consistently high performance
• Exceptional durability

General information

The KryoSheet Graphene Pads have a molecular structure stacked in the Z-direction. This optimized structure allows for outstanding and consistent thermal conductivity. A specially developed manufacturing process breaks the hexagonal crystal structure of graphite along the basal plane to take advantage of the anisotropy of graphite's thermal conductivity. However, as a side effect of this intricate manufacturing process, electrical conductivity is also increased, affecting the stability of the KryoSheet pads. Therefore, it is crucial to strictly follow the instructions when using the pads.

Detailed dimensionsScope of delivery

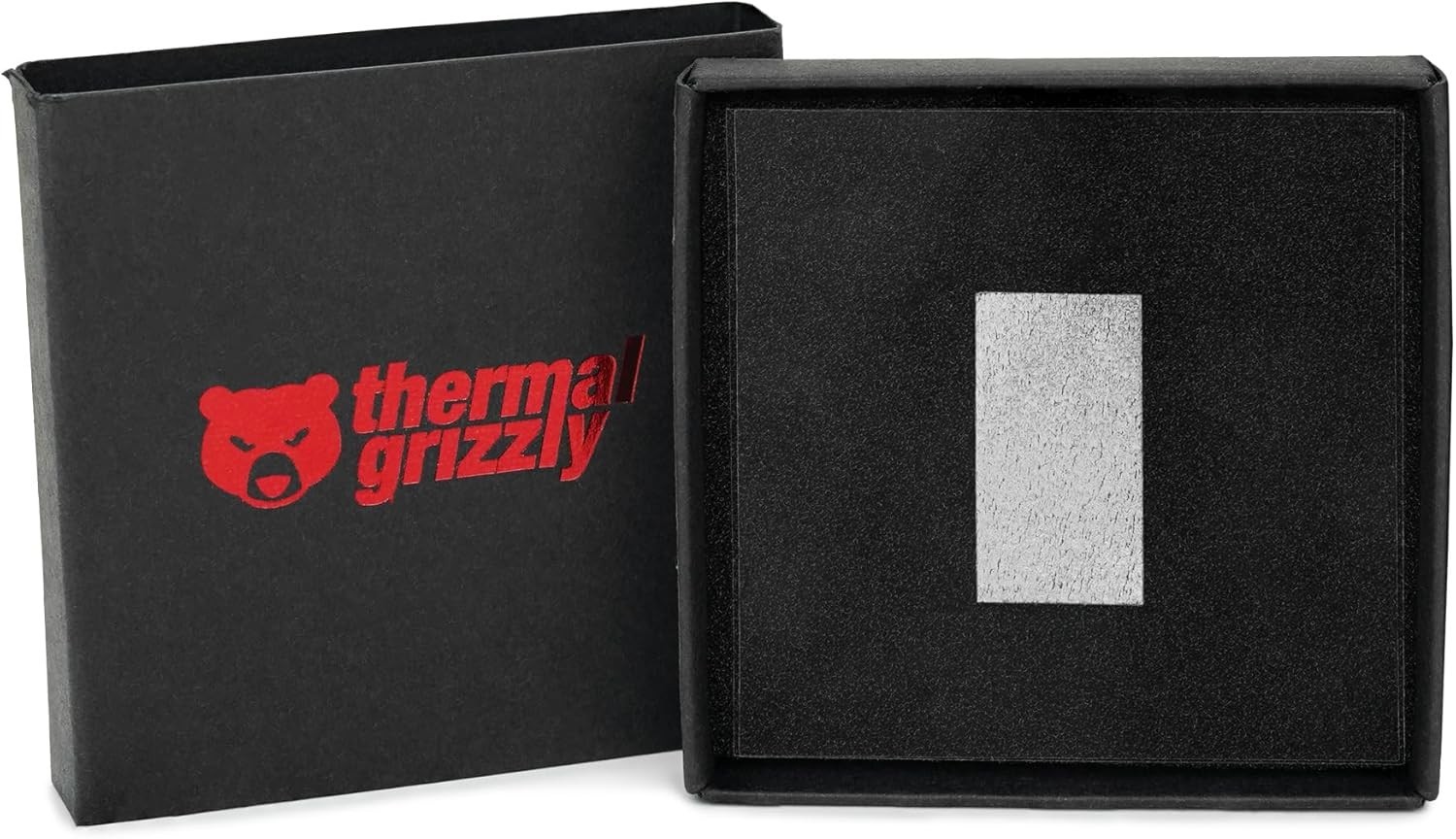

KryoSheet Thermal Pad

KryoSheet Thermal Pad 24mm x 12mm x 0.2mm

Box and Manual

A box to secure the pad

Bag

An airtight sealable and reusable package
