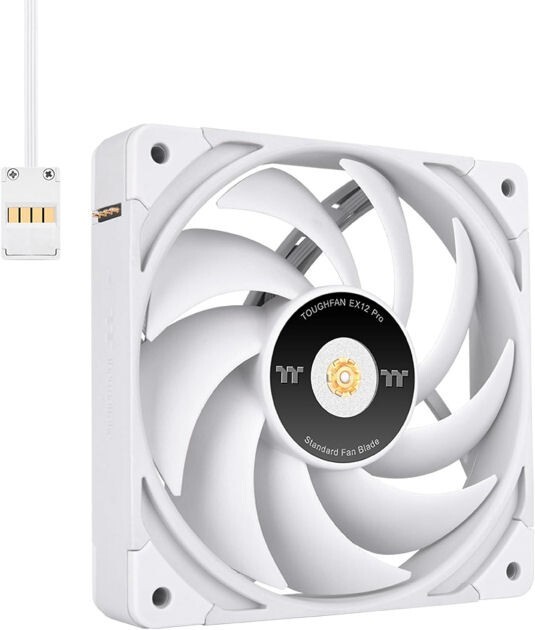

By adding the MagForce 2.0 and swappable fan blade design to the powerful TOUGHFAN Pro, the new TOUGHFAN EX Pro White can provide supreme cooling performance with a quick magnetic connection, allowing you to swap the fan blades to fit installation preferences.

P/N CL-F171-PL12WT-A

Dimension 120 x 120 x 25 mm

Interface 4 Pin - PWM

Started Voltage 6 V

Rated Voltage 12 V

Rated Current 0.17 A

Power Input 2.04 W

Fan Speed PWM 500~2000 R.P.M

Max Air Pressure Standard Fan Blade : 3.19 mm-H2O(one fan)

Reverse Fan Blade : 2.60 mm-H2O(one fan)

Air Flow Standard Fan Blade : 70.8 CFM(one fan)

Reverse Fan Blade : 64.21 CFM(one fan)

Noise Standard Fan Blade : 22.6 dB-A(one fan)

Reverse Fan Blade : 29.8 dB-A(one fan)

Bearing Type Hydraulic Bearing

Life Expectation 40

Other Fan Frames x 3

Standard Fan Blade x 3 (Pre-installed)

Reverse Fan Blade x 3

Cable x 3
