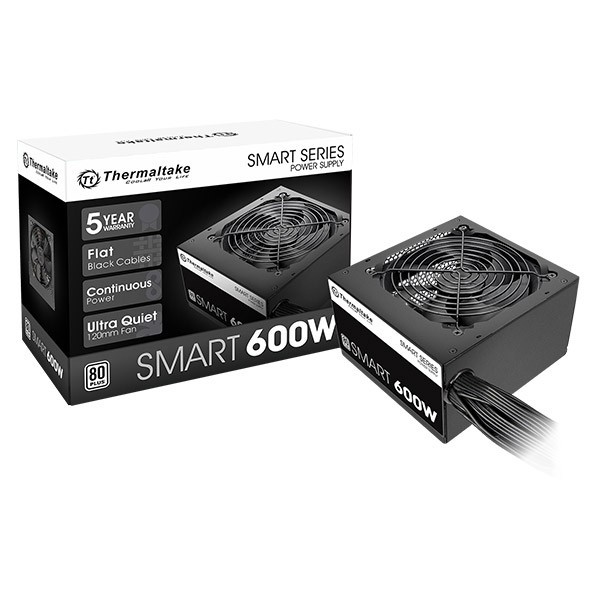

Thermaltake Smart Series
Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
120mm Ultra Quiet Fan
Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise
Multiple Connectors
The cables used for Smart Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
Connector TypeConnector QuantityCable QuantityCable LengthMain Power
(24Pin)X 1X 1600mmATX 12V
(4+4Pin)X 1X 1650mmPCIe
(6+2Pin)X 2X 1500mm+150mmSATA
(4Pin)X 4X 1500mm+150mm +150mm+150mmPeripheral
(4Pin)X 4X 1500mm+150mm +150mm+150mm80 PLUS Standard Certified and Intel C6/C7 States Ready
Smart Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® Standard Certified. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High Amperage Single +12V Rail Design
Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:
AC INPUT
Input Voltage: 100 - 240V~
Input Current: 12A - 5A
Frequency: 50Hz / 60Hz
DC OUTPUT+3.3V+5V+12V-12V+5VsbMax Output Current16A
16A
50.00A
0.3A
3AMax Output Power
105W
600W
3.6W
15W
Continuous Power
600W
