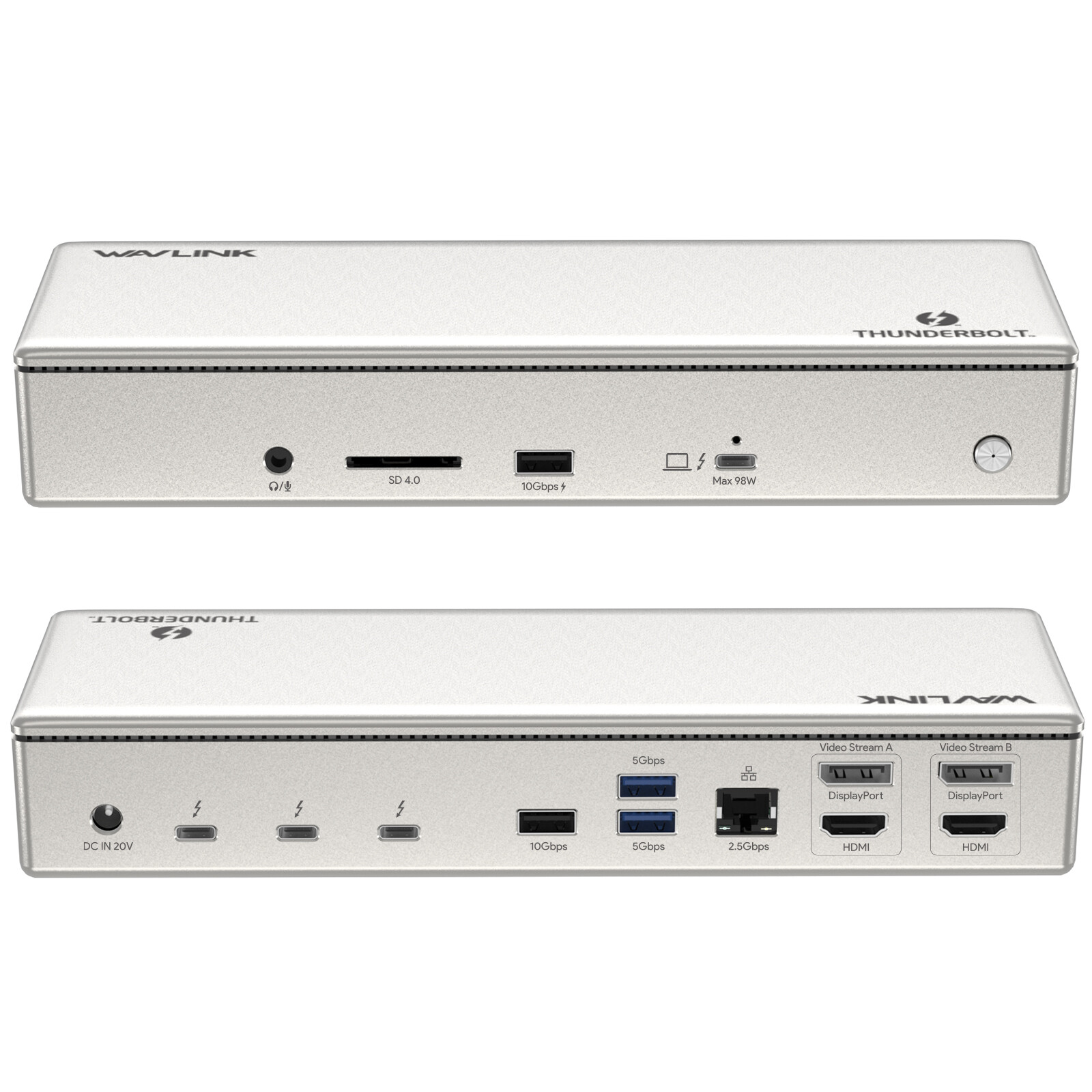

⚡ WAVLINK · THUNDERBOLT™ 4 · 15-IN-1Thunderbolt™ 4 Quad Display Docking Station40Gbps · 98W Charging · Single 8K / Quad 4K · 2.5G Ethernet · SD 4.015 ports, three downstream Thunderbolt™ 4 connections and a 200W power supply. Built for designers, programmers and anyone who needs a serious multi-monitor workstation.⚡ 40Gbps TB4🔋 98W PD🖥 Single 8K / Quad 4K🌐 2.5G Ethernet💾 SD 4.0 312MB/s40GbpsTB4 Transfer98WLaptop Charging8K@30HzSingle Display200WPower Adapter15-in-1Connection PortsFeaturesFull Workstation Power From One Cable15 ports, 40Gbps of bandwidth and a 200W power supply — engineered for heavy multi-monitor workflows.🔌15-in-1 Comprehensive Ports1 × 3.5mm Audio/Mic · 1 × SD card slot (312MB/s) · 1 × USB-A (10Gbps, 7.5W) · 1 × upstream Thunderbolt™ 4 port (40Gbps, 98W) · 1 × DC In (20V/10A, 200W) · 3 × downstream Thunderbolt™ 4 ports (40Gbps, PD 15W, 8K) · 1 × USB-A (10Gbps) · 2 × USB-A (5Gbps) · 1 × RJ45 Ethernet (2.5Gbps) · 2 × video streams (4K DP + 4K HDMI).⚡40Gbps Transfer & 98W ChargingThunderbolt™ 4 delivers lightning-fast 40Gbps data transfer. The upstream port supplies up to 98W power delivery to charge your laptop, while the three downstream Thunderbolt™ 4 ports each offer 15W PD to keep peripherals powered simultaneously.🖥Single 8K & Multiple 4K DisplaysDrive a stunning single 8K@30Hz display or up to four 4K@60Hz monitors. Switch freely between extend and mirror modes. Both macOS and Windows support extend, mirror, rotation and clamshell configurations.🌐2.5G Ethernet & SD 4.0 ReaderThe 2.5Gbps wired connection ensures a seamless online experience for streaming, gaming and bandwidth-intensive tasks. An integrated SD V4.0 card reader supports speeds up to 312MB/s for fast, efficient file transfers from your camera.🎧Combo Audio & Mic PortConnect headphones, microphones or mini stereos to this convenient 3.5mm combo port for seamless audio input and output. Ideal for online meetings, music and voice chat with clear, reliable communication.🔋Offline Charging SupportAll downstream Thunderbolt™ 4 ports and one USB 3.1 fast-charging port support offline charging, enabling peripheral devices to charge even when the computer is disconnected or powered off.💻System CompatibilityCompatible with Thunderbolt™ 4-enabled PCs running Windows 10/11 and Thunderbolt™ 3/4-enabled Macs running Mac OS 11 or later. Just plug in and enjoy seamless connectivity and enhanced functionality.Port Layout15-in-1 Front & Rear PortsEverything connects from a single Thunderbolt™ 4 cable.▶ Front 1 × 3.5mm Audio / Mic
1 × SD Card Slot (312MB/s)
1 × USB-A (10Gbps, 7.5W)
1 × Upstream Thunderbolt™ 4 (40Gbps, 98W)
1 × Power Switch ◀ Rear 1 × DC In (20V/10A, 200W)
3 × Downstream Thunderbolt™ 4 (40Gbps, PD 15W, 8K)
1 × USB-A (10Gbps)
2 × USB-A (5Gbps)
1 × RJ45 Ethernet (2.5Gbps)
2 × Video Stream (4K DP + 4K HDMI)Max ResolutionMulti-Display ConfigurationsSupported resolutions across 1, 2, 3 and 4 external displays.① 1 MonitorPortMax ResolutionThunderbolt™ 4Up to 8K@30HzDisplayPortUp to 4K@60HzHDMIUp to 4K@60Hz② 2 MonitorsCombinationMax Resolution2 × Thunderbolt™ 4Dual 4K@60HzThunderbolt™ 4 + DisplayPort8K@30Hz + 4K@60HzThunderbolt™ 4 + HDMI8K@30Hz + 4K@60Hz2 × DisplayPortUp to 4K@60Hz2 × HDMIUp to 4K@60HzDisplayPort + HDMIUp to 4K@60Hz③ 3 MonitorsCombinationMax ResolutionDual Thunderbolt™ 4 + DP or HDMI3 × 4K@60HzThunderbolt™ 4 + 2 × DP/HDMI8K@30Hz + 2 × 4K@60HzThunderbolt™ 4 + DP1 + HDMI28K@30Hz + 4K@60Hz + 4K@60HzThunderbolt™ 4 + HDMI1 + DP28K@30Hz + 4K@60Hz + 4K@60Hz④ 4 MonitorsCombinationMax ResolutionDual Thunderbolt™ 4 + 2 × DP/HDMI4 × 4K@60HzDual Thunderbolt™ 4 + DP1 + HDMI24 × 4K@60HzDual Thunderbolt™ 4 + HDMI1 + DP24 × 4K@60Hz⚠ Important: For higher-resolution displays, connect monitors to the Thunderbolt™ 4 ports instead of the HDMI or DisplayPort video streams. Each video stream group allows only one port — use either DisplayPort or HDMI, not both simultaneously. SpecificationTechnical DetailsModelQuad Monitor TBT4 DockFront Ports 1 × 3.5mm Audio/Mic · 1 × SD Card Slot (312MB/s) · 1 × USB-A (10Gbps, 7.5W)
1 × Upstream Thunderbolt™ 4 (40Gbps, 98W) · 1 × Power Switch Rear Ports 1 × DC In (20V/10A, 200W) · 3 × Downstream Thunderbolt™ 4 (40Gbps, PD 15W, 8K)
1 × USB-A (10Gbps) · 2 × USB-A (5Gbps) · 1 × RJ45 Ethernet (2.5Gbps)
2 × Video Stream (4K DP + 4K HDMI) Power SupplyDC 20V/10A, 200WUnit Size (L×W×H)24 × 8.1 × 3.9 cm / 9.4 × 3.3 × 1.5 inWeight501 g / 17.7 ozCable Length Thunderbolt™ 4 Cable: 80 cm / 31.5 in
Power Adapter Cable (plug end): 150 cm / 59 in
Power Adapter Cable (round port end): 110 cm / 43 in HousingAluminum AlloyStatus LEDRedCompatibilityCompatible Devices (Partial List)Please check the list below before purchasing. If your device is not listed, contact us and we’ll be glad to verify compatibility for you. Apple iMac (Early 2017) · MacBook Pro (Late 2016 / Mid 2017 / Mid 2018 / 2019 / 16" 2019)
MacBook Air (Retina 13" 2018 / Retina 13" 2019) · MacBook Pro 14"/16" (2021 & 2023)
Mac mini with M2 Pro 2023 · Mac Studio (M2 Max/Ultra 2023, M1 Max/Ultra 2022) · Mac Pro (M2 Ultra 2023) 💻 Dell XPS 17 (2023) · XPS 13 7390 2-in-1 (Ice Lake) · XPS 12 9250 · XPS 13 9350 / 9360 / 9370 / 9380
XPS 15 9550 (Intel & Intel+Nvidia) · XPS 15 9560 (Intel+Nvidia) · XPS 15 9570 · XPS 17 9700 🖥 Asus ProArt Studiobook Pro 16 OLED (W7604 / W7600Z3A) · ProArt Studiobook 16 3D OLED (H7604) · Studiobook 16 OLED (H7600ZM/ZX/ZW)
Zenbook Pro 16X OLED (UX7602ZM/BZ/VI) · Zenbook Pro 14 Duo OLED (UX8402ZA/ZE/VV/VU) · Zenbook Pro 14 OLED (UX6404VI/VV)
Zenbook S 13 OLED (UX5304VA) · Zenbook 14X OLED (UX3404VC/VA) · Zenbook 14 OLED (UX3402/VA) · Zenbook 14 Flip OLED (UP3404VA)
Vivobook Pro 16X 3D OLED (K6604JI) · Vivobook Pro 16X OLED (K6604JI/JV) · Vivobook Pro 15 OLED (K6502 series)
Vivobook Pro 16 OLED (K6602 series) · Vivobook S 14/15 OLED · Vivobook S 14/15 Flip OLED · Vivobook 16X OLED (K3605VV/VU) 💻 HP Spectre x360 13.5 (2023) · EliteBook Folio G1 (V1C43EA) · Spectre x360 Convertible 13-w000 (W9A95AV)
Spectre x360 13-ac003la · Spectre x360 15-ch000 · Elite X2 1012 G1 💻 Lenovo ThinkPad P50 / P51 / P70 · Yoga C930 · X1 Carbon 7th Gen ⚡ Intel NUC NUC8i7HVK / NUC8i7HNK (Hades Canyon)
NUC9VXQNX / NUC9V7QNX / NUC9i9QNX / NUC9i7QNX / NUC9i5QNX (Ghost Canyon) 🎮 Other Brands Samsung Galaxy Book 3 Pro · Razer Blade 16 (2023) · Microsoft Surface Pro 9 (Wi-Fi) · Acer Aspire 5 (2023) In the BoxWhat You’ll Receive✓1 × Thunderbolt™ 4 Quad Display Docking Station ✓1 × 0.8m Thunderbolt™ 4 Cable ✓1 × Cable Holder ✓1 × 200W Power Adapter ✓1 × Quick Start Guide ✓1 × Driver Download Card Warm TipsBefore You Buy01The three Thunderbolt™ 4 ports support a maximum of two displays.02Video stream groups: each video stream group allows the use of only one port. In video stream A and video stream B, use either the DisplayPort or the HDMI port — not both at the same time.03M1/M2 Macs: can only have one video output from the three Thunderbolt™ 4 ports, but the HDMI and DP ports function normally.04Driver required: please download the latest driver before using the HDMI/DP ports.05Power always connected: please ensure the power connection is maintained (200W power adapter included) while using this docking station.068K support: to enable 8K display output, the computer’s USB-C port must support DP1.4.07For USB-C laptops that are not Thunderbolt 3/4, performance will be limited.08HDCP not supported — protected content from streaming services may not play through this dock.09Offline charging: all downstream Thunderbolt™ 4 ports and one USB 3.1 fast-charging port support offline charging, enabling peripherals to charge even when the computer is disconnected or powered off.WAVLINKTHUNDERBOLT™ 4 QUAD DISPLAY DOCKING STATION · WL-UTD41PRO · 15-IN-1 · 40Gbps · 98W PD
