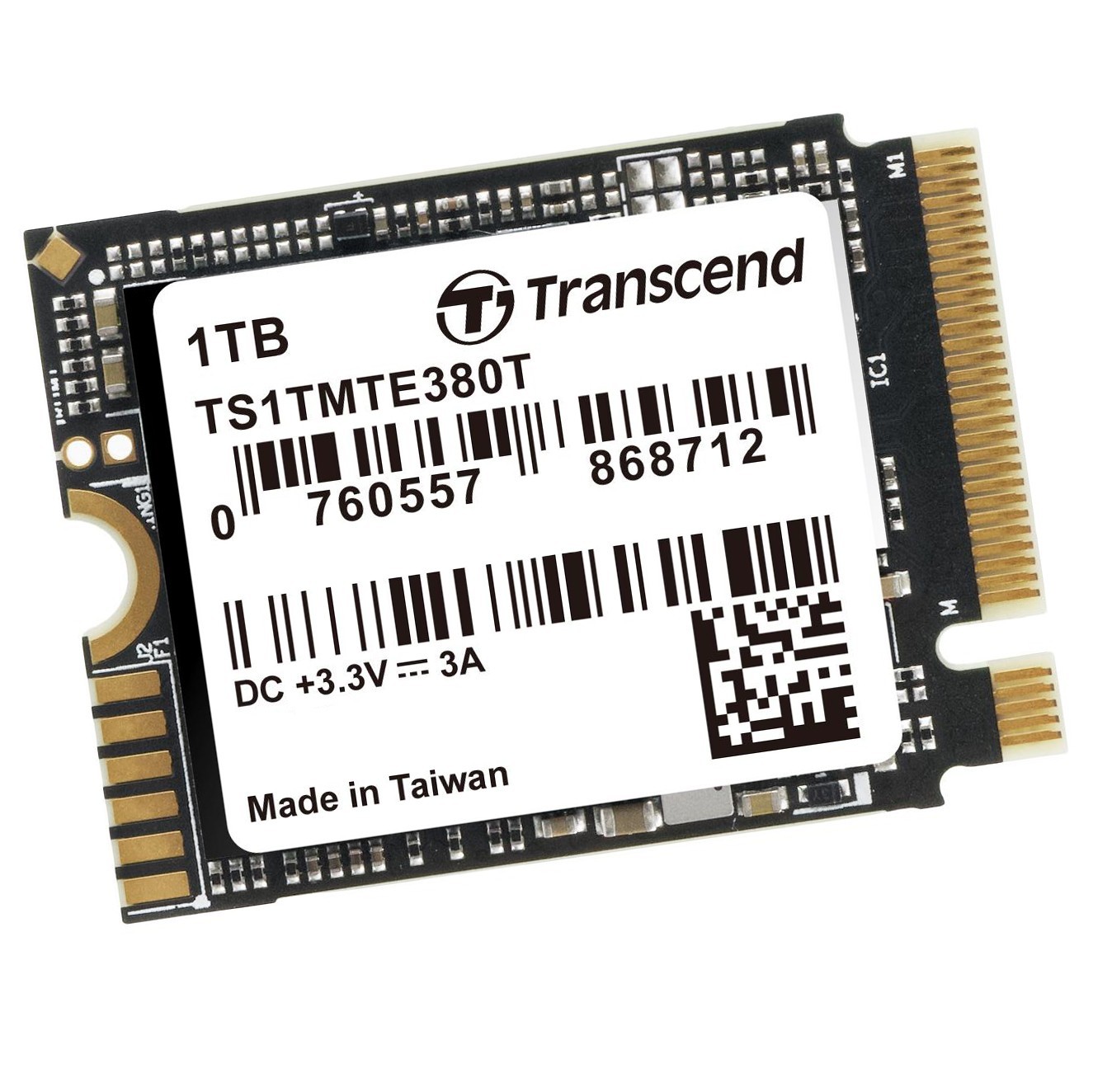

Condition: New, OEM PackageBrand: TranscendModel: MTE380TPart number: TS1TMTE380T

Firmware Features

• Supports NVM command
• Dynamic thermal throttling
• Built-in LDPC ECC (Error Correction Code) functionality
• Advanced Global Wear-Leveling and Block management for reliability
• Advanced Garbage Collection
• Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
• TRIM command for better performance
• NCQ command for better performance
• Compliant with TCG Opal specifications and IEEE 1667 standards

Hardware Features

• Compliant with NVM Express specification 1.4
• Compliant with PCI Express specification 4.0
• Space-saving M.2 form factor (30mm) – ideal for mobile computing devices
• PCIe Gen 4 x4 interface
• Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
• Key components fortified by default with Corner Bond technology
• 30µ" PCB gold finger
• Anti-sulfur technology implemented to prevent sulfurization in the environment
• Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage

AppearanceDimensions30 mm x 22 mm x 2.23 mm (1.18" x 0.87" x 0.09")Weight4 g (0.14 oz)M.2 Type

• 2230-S3-M

Form Factor

• M.2 2230

InterfaceBus Interface

• NVMe PCIe Gen4 x4

StorageCapacity

• 1 TB

Flash Type

• 112-layer 3D NAND flash

Operating EnvironmentOperating Voltage

• 3.3V±5%

Operating Temperature

• Extended Temp.-20°C (-4°F) ~ 75°C (167°F)

Storage Temperature-55°C (-67°F) ~ 85°C (185°F)Humidity5% ~ 95%Shock

• 1500 G, 0.5 ms, 3 axis

Vibration (Operating)20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)PowerPower Consumption (Operation)3.3 watt(s)Power Consumption (IDLE)0.73 watt(s)PerformanceSequential Read/Write (CrystalDiskMark)Read: Up to 3,300 MB/s
Write: Up to 1,700 MB/s4K Random Read/Write (IOmeter)Read: Up to 123,000 IOPS
Write: Up to 390,000 IOPSMean Time Between Failures (MTBF)3,000,000 hour(s)Terabytes Written (TBW)Up to 660 TBWDrive Writes Per Day (DWPD)1.2 (3 yrs)
